Euromag MC608 Series Installation Manual

6
5
+
-
MC608
fig_914_2
6
5
+
-
+
-
cdV03-5
MC608
fig_914_4
6
7
8
5
+
+
+
-
-
-
24V
MC608
fig_914_3
4
3
+
-
MC608
fig_914_5
35

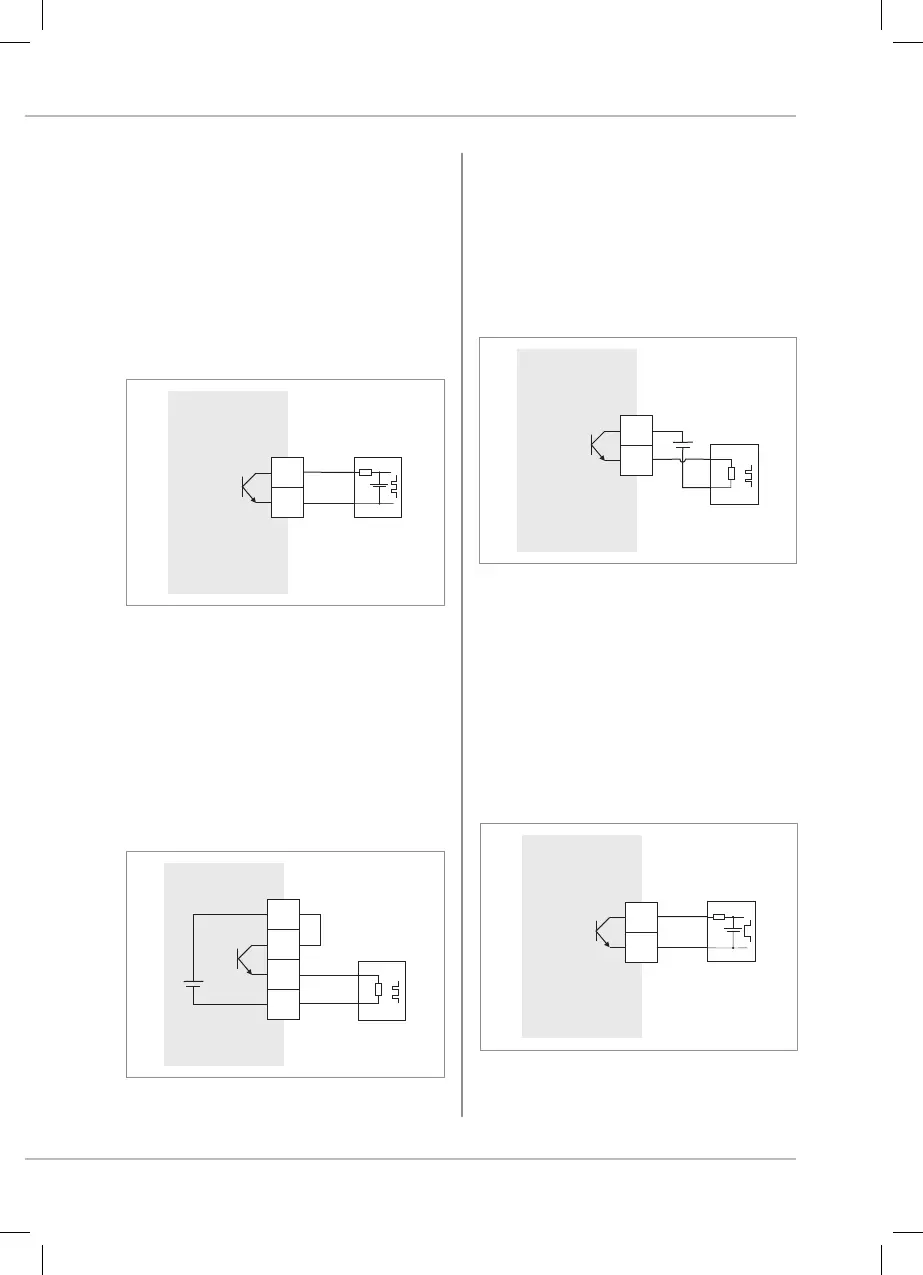

PULSE OUTPUT
Clean contact (MC608A/B/R)
The device connected (PLC/external pulse meter)
supplies its digital input with the required voltage
to detect the pulses. The MC608 acts as a digital
switch.
(Maximum voltage: 30Vdc, 50mA maximum
current)
Active 5-30V (MC608A/B/R)
The device connected (PLC/external pulse meter)
is a passive digital input that accepts the voltage
supplied to it by the external supply system used.
(Voltage 5-30V, maximum current 50mA)
Active 24V self-powered (MC608 from
version 6-3)
The device connected (PLC/external pulse meter)
is a passive digital input that accepts a 24V voltage
level. IT SHOULD NOT
provide ANY additional voltage. The internal power
supply 24Vdc is used to provide the necessary
voltage. (Voltage 24V, maximum current 30mA*)
PROGRAMMABLE OUTPUT
Clean contact (MC608A/B/R)
The device connected provides its digital input with
the required voltage to detect the logic level.
The MC608 acts as a digital switch.
(Maximum voltage: 30Vdc, 50mA maximum
current)
9. CONVERTER MC 608
