Euromag MC608 Series Installation Manual

2
1
+
+
-
-
24V
mA
SOURCE
MC608
fig_914_9
2
1
+
-
mA
SINK
MC608
fig_914_8
4
3
+
-
+
-
cdV03-5
MC608
fig_914_7
4
7
8
3
+
+
+
-
-
-
24V
MC608
fig_914_6
36
EUROMAG | MC608 | TD210-1
www.euromag.com

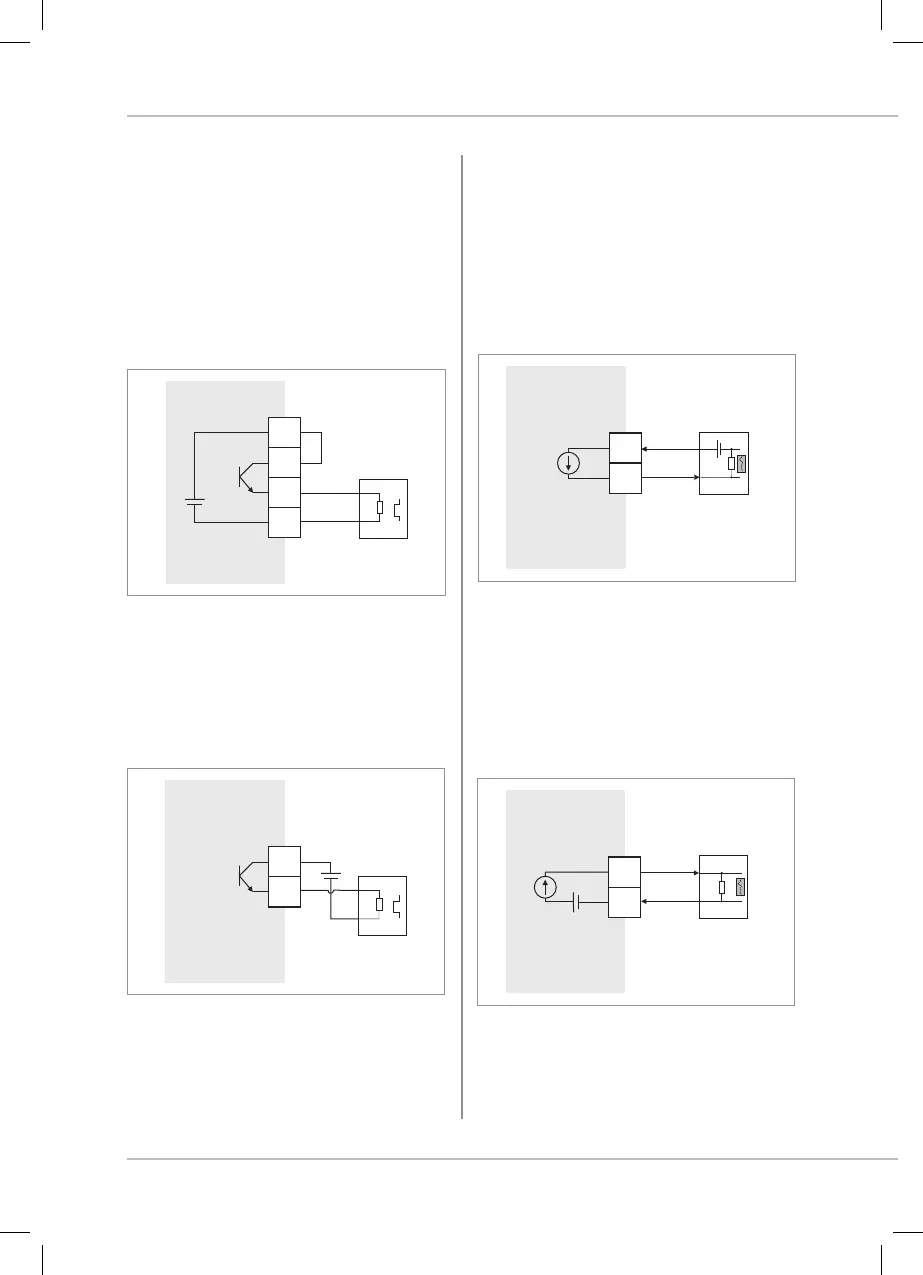

Active 5-30V (MC608A/B/R)
The connected device is a passive digital input that
accept the voltage level provided by the external
power supply.
(Voltage 5-30V, maximum current 50mA)
4…20mA OUTPUT
Loop Powered
The connected 4-20mA receiver is a loop-powered
model, powering itself the current loop.
(24VDC loop voltage of 24Vdc, maximum
impedance 800 ohm)
Active (MC608 version 6-1 and 6-2)
The connected 4-20mA receiver is a passive
milliamp-meter; the internal MC608 24Vdc power
supply is internally connected.
(24VDC loop voltage of 24Vdc, maximum
impedance 800 ohm)
Active 24V self-powered (MC608 from
version 6-3)
The device is connected to a passive input that
accepts a digital voltage equal to 24V. IT MUST NOT
provide ANY additional voltage.
The internal power supply 24Vdc is used to provide
the necessary voltage. (Voltage 24V, maximum
current 30mA*)
