fig_4_3
fig_4_4
fig_4_5
23
GROUNDING CABLE:
MIN 2.5 MM2
RECOMMENDED: 4 MM2
GROUNDING SCREW: 5MM
NOTE
• Particularly close attention must be paid when
installing the product in the pipeline with
cathodic protection. Isolate it from the pipeline
by installing isolation bushings and washers
on the bolts of the flange and connect a wire
between the pipes, large enough to handle the
cathodic current and the environmental effect.
Use of the grounding rings on both ends. See
fig_4_7 on the next page.

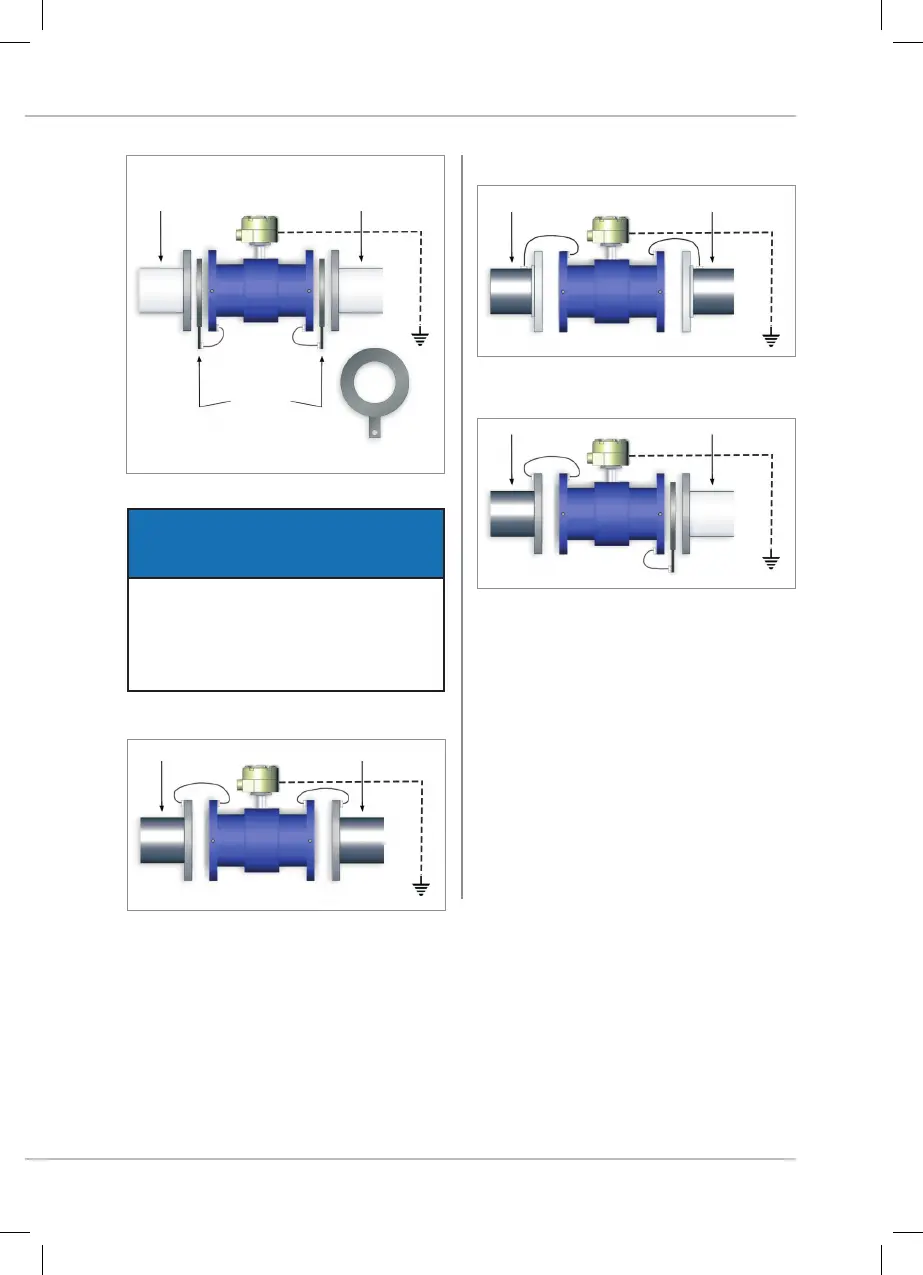

GROUNDING RINGS
GROUNDING RING
PLASTIC PIPEPLASTIC PIPE
Metal pipe
Metal pipe with adapters
fig_4_6
Metal and plastic pipe
METAL PIPE PLASTIC PIPE
METAL PIPE METAL PIPE
METAL PIPE METAL PIPE
4. POTENTIAL EQUALIZATION
