CHAPTER 5
5.1 DESCRIPTION OF UNIT
E8: totally automatic steam sterilizer for sterilizing instruments both loose and packed in bags.

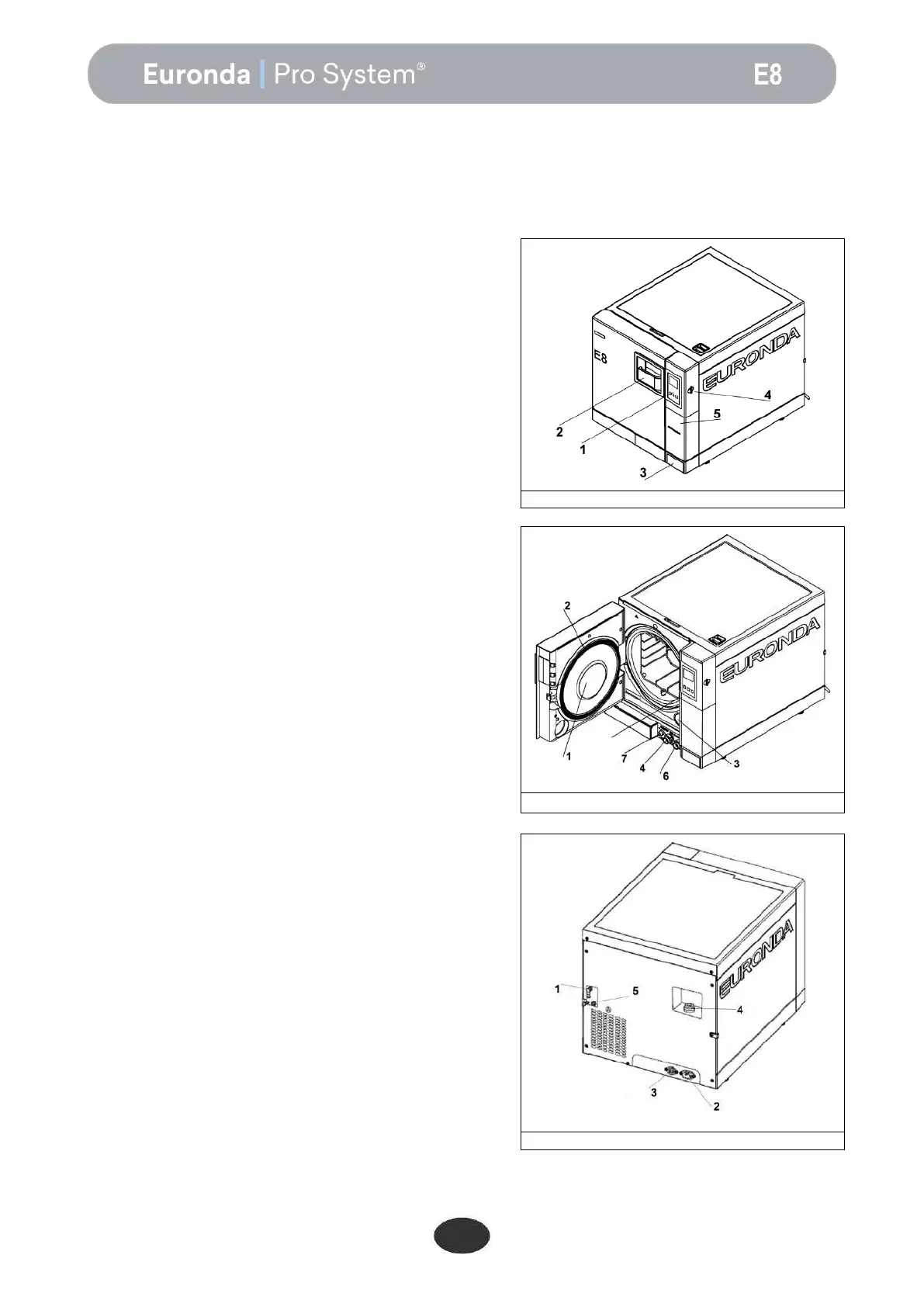

5.1.1 Front elements
1. Screen with soft touch buttons: used to set, visualise
and control all the functions of the unit. The functions of
the various buttons are explained in chap. 6.5 “How to
use the control panel”.
2. Door handle inserted in the chamber.
3. General switch door: accesses the general switch and a
service serial port.
4. SD card slot: the SD card, which stores the machine
cycle data, is housed in this slot.
5. Optional thermal printer cover (see chap. 5.4
“Integrated printer”).
Fig. 5.1.1-1
Devices on the front of the unit with the door open
1. Door gasket.
2. Gasket.
3. Bacteriological filter.
4. Connector for draining used water.
5. Closing mechanism block with electromagnetic pin and
internal safety micro-switches.
6. Connector for draining clean water.
7. Screw cap for the safety thermostat switch.
Fig. 5.1.1-2
5.1.2 Rear elements
1. Used water and overflow drain.
2. Power cord socket.
3. Electric connection for deionizer.
4. Safety valve.
5. External water inlet from the deioniser.
Fig. 5.1.2-1
