Euronda Pro System E8 - Rating Plate

E8_Aus_rev07 – 2021-02-02
17

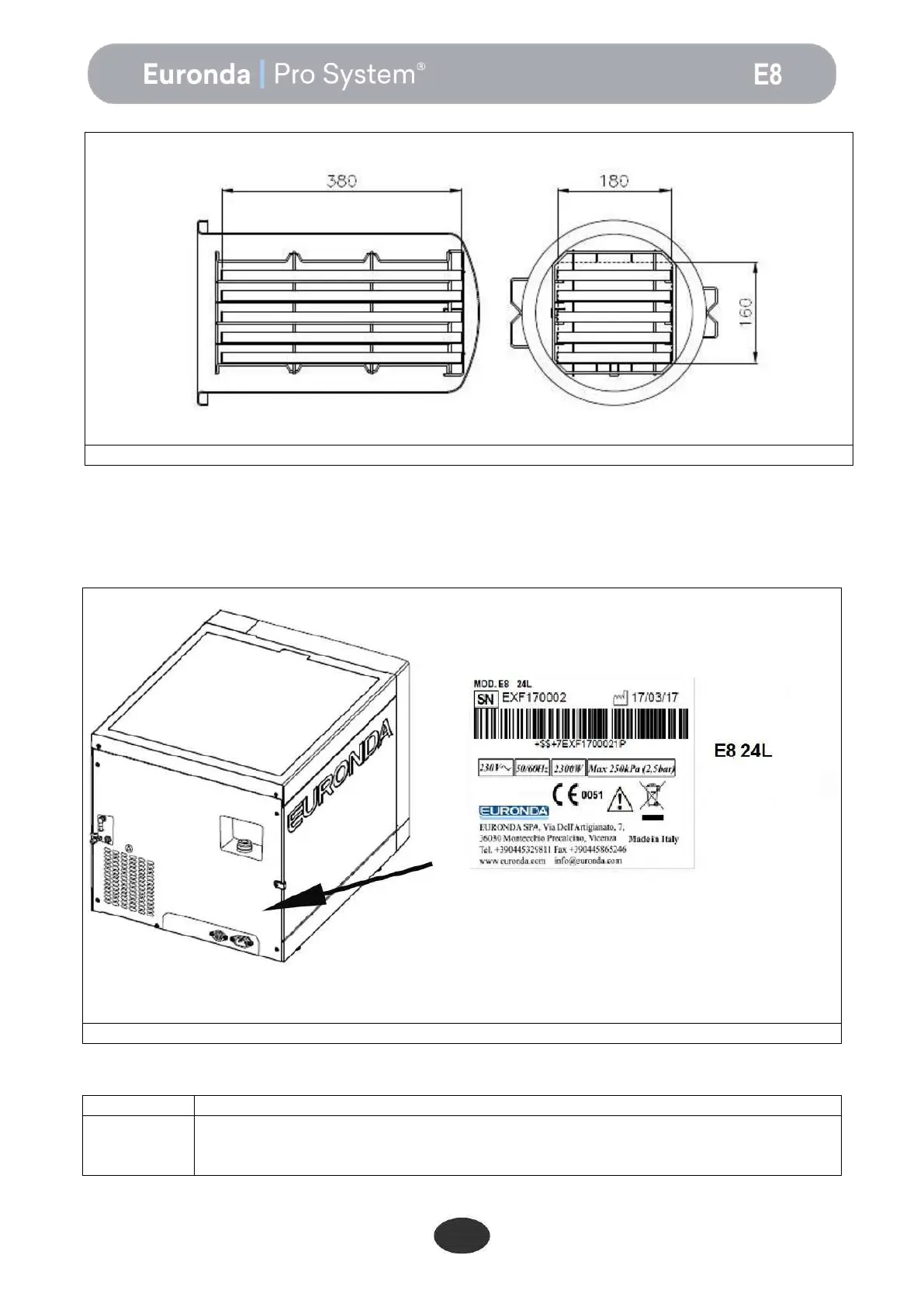

Fig. 5.3-1
5.3.1 Rating plate
The rating plate (Fig. 5.3.1-1) lists the main data and characteristics of the unit, the information required to
identify it when ordering spare parts, and/or when requesting information. The information shown in the
following figure is subject to change.
Fig. 5.3.1-1
The label of the unit bears symbols the meaning of which is shown below.
SYMBOL
DESCRIPTION
SN
"SERIAL NUMBER"
The symbol must be followed by the manufacturer’s serial number. The serial number must
be adjacent to the symbol.
