9.2.2 Adjustment of the closing mechanism
CAUTION: HIGH TEMPERATURE. Only perform this operation when the machine is
cold.
The closing mechanism of the unit occasionally requires adjusting due to normal settling of mechanical parts
and wear on the seal gasket. This is particularly important as a poor seal may prevent the pressure from
increasing to the level set for the selected program and therefore jeopardise the result of the cycle. Proceed
as follows:
1. Open the door. Always work with the unit cold.

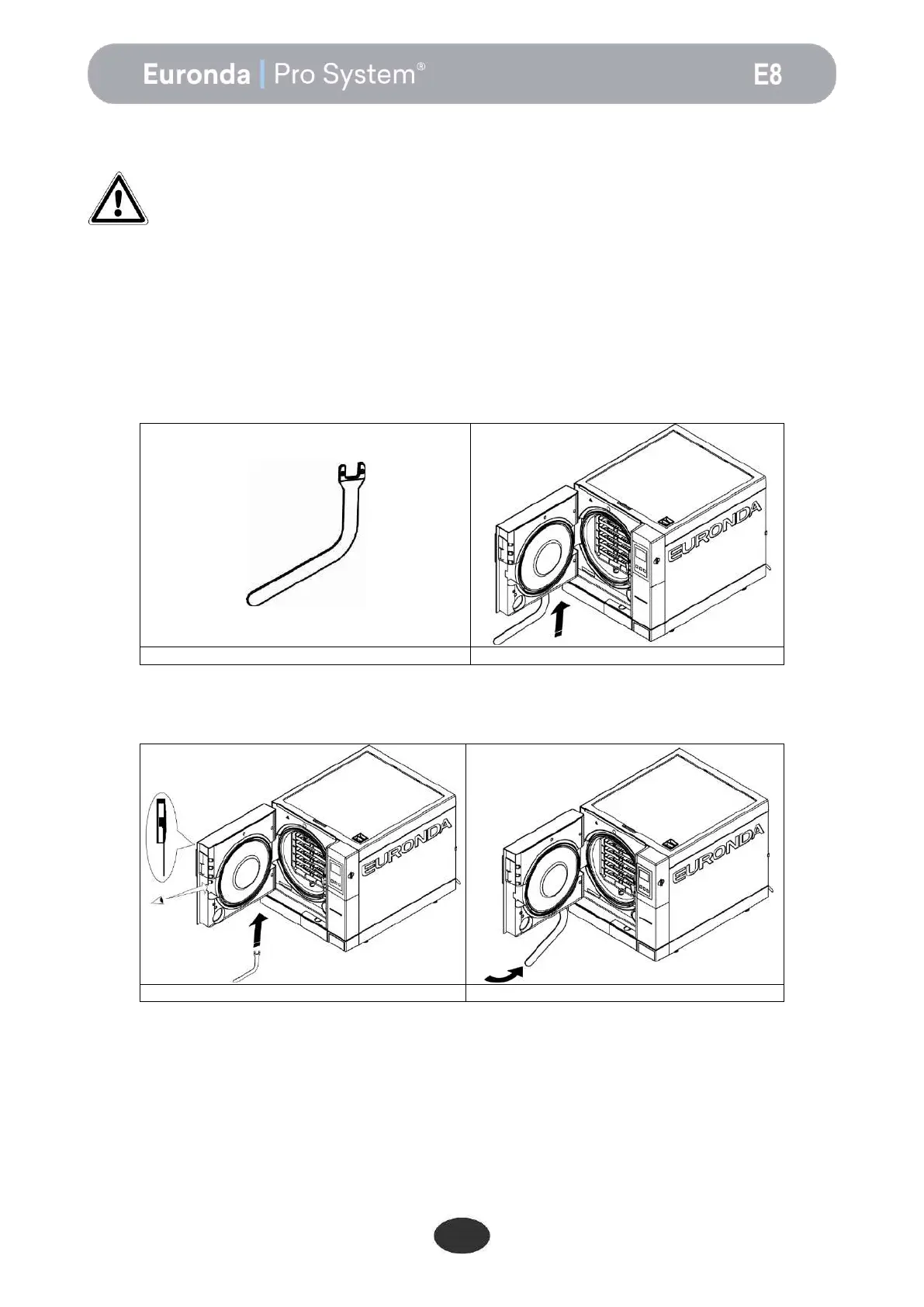

2. Fit the supplied adjustment lever (Fig. 9.2.2-1) into the slot under the door (Fig. 9.2.2-2).
3. Look through the slot of the door hook to make sure the lever has engaged the adjustment pin. (Fig.
9.2.2-3).
4. Turn the adjustment pin anticlockwise, looking at the door gasket, by 1/4 of a turn (to close) (Fig. 9.2.2-4).
5. Check that the door closes properly. If the handle is too hard to close, turn a little in the opposite direction
(clockwise).
6. Carry out a test cycle to check it is correctly adjusted.
