Model 5601ACO2 Automatic Changeover Unit
Page 5-4 Revision 1.2 VistaLINK
®
CONFIGURATION
5.4. Configuring the Voting Control
The Voting Control settings are used to configure how the 5601ACO2 makes decisions regarding valid
signals. It also decides when to switch to the backup signals.

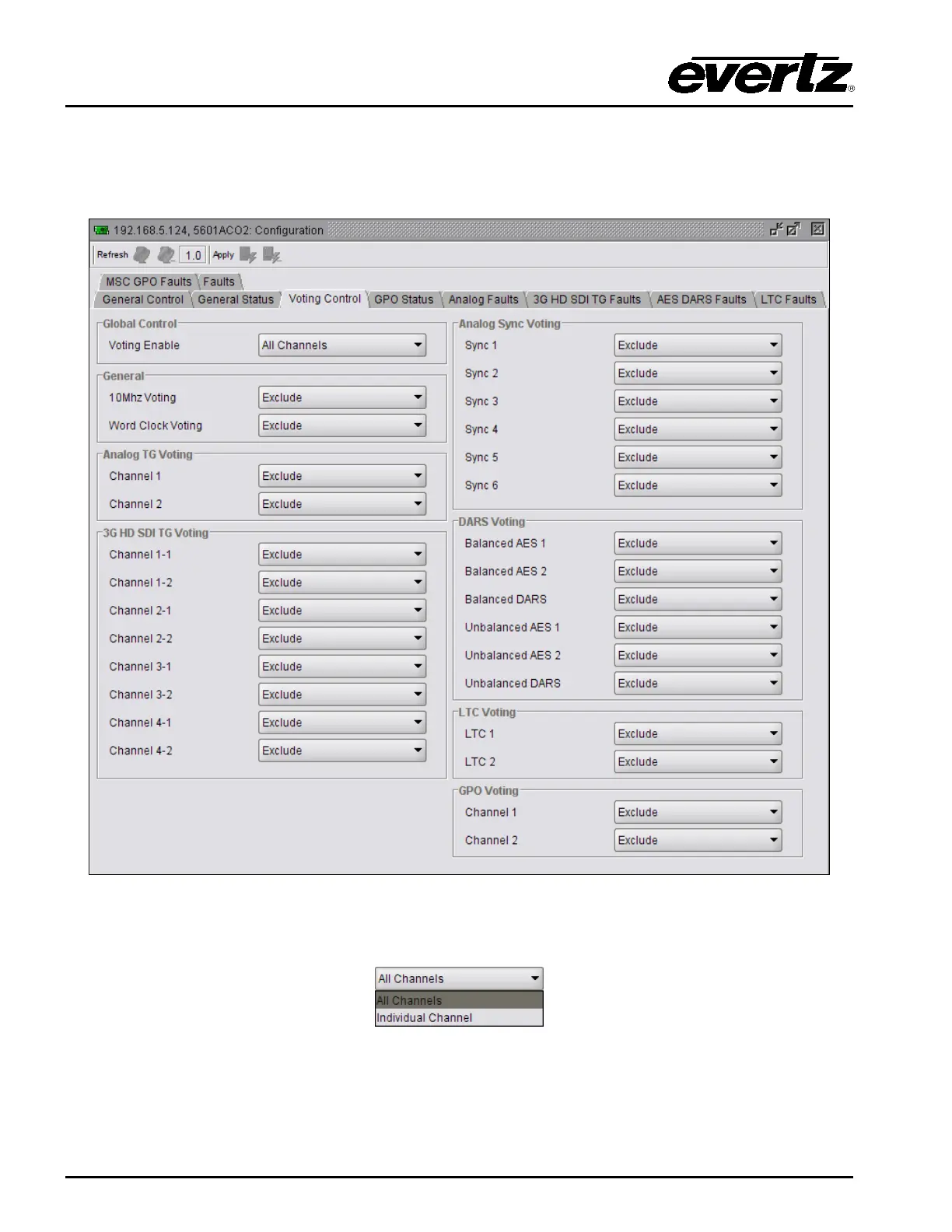

Figure 5-3: VistaLINK
®
Monitoring – Voting Control
5.4.1. Global Control Parameters
Voting Enable: Enables the user to select if all inputs are monitored, or if channels are
individually included or excluded from the voting process to drive auto-
changeover logic.
