5.6.2. Setting the 3G HD SDI TG Faults
This control, as illustrated in Figure
5-6, allows the user to enable 3G HD SDI TG traps and monitor the
trap status. To enable a particular trap, simply click the box located beside each trap so that a check-
mark appears. When a check-mark is present, the SNMP trap is enabled. When a check-mark is not
present, the trap is disabled.
The 3G HD SDI TG Fault Status section displays whether a fault is active or not. If the box is green,
then the corresponding fault is not active. If the box is red, then the corresponding fault is active.

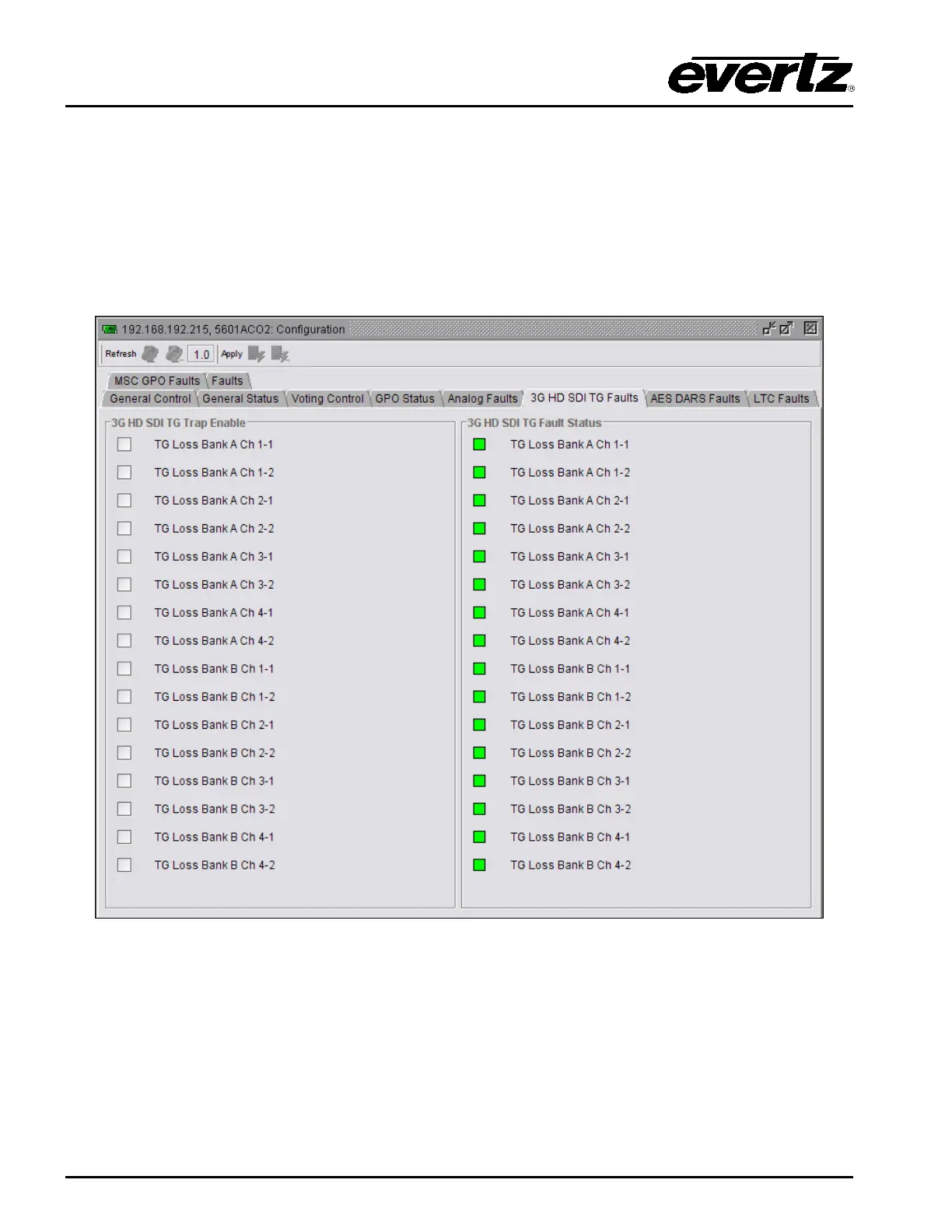

Figure 5-6: VistaLINK
®
Monitoring – 3G HD SDI Faults
