evertz 5601AC02 - Configuring the Faults Tab; Figure 5-10: Vistalink Monitoring - Faults

Model 5601ACO2 Automatic Changeover Unit
VistaLINK
®
CONFIGURATION Revision 1.2 Page 5-11
5.6.6. Configuring the Faults Tab
The Faults tab, as illustrated in Figure
5-10, allows the user to enable a variety of traps such as Ten
MHz, Word Clock, Current Output, Power Supply, Fan, Door Open traps. To enable a particular trap,
simply click the box located beside each trap so that a check-mark appears. When a check-mark is
present, the trap is enabled. When a check-mark is not present, the trap is disabled.
The Fault Status section defines whether the respective fault is active or not. If the box is green, then
the corresponding fault is not active. If the box is red, then the corresponding fault is active.

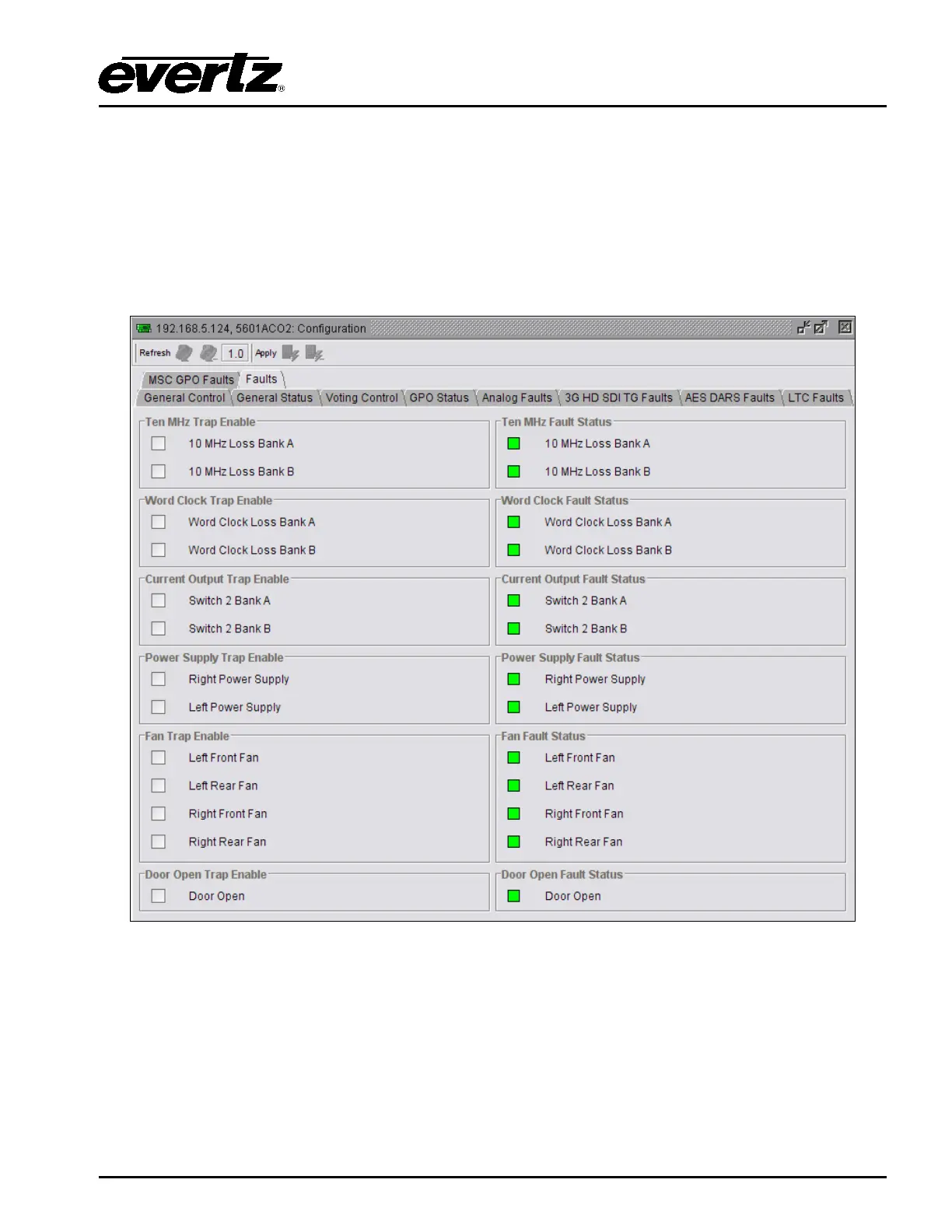

Figure 5-10: VistaLINK
®
Monitoring – Faults
