Model 5601ACO2 Automatic Changeover Unit
Page 5-10 Revision 1.2 VistaLINK
®
CONFIGURATION

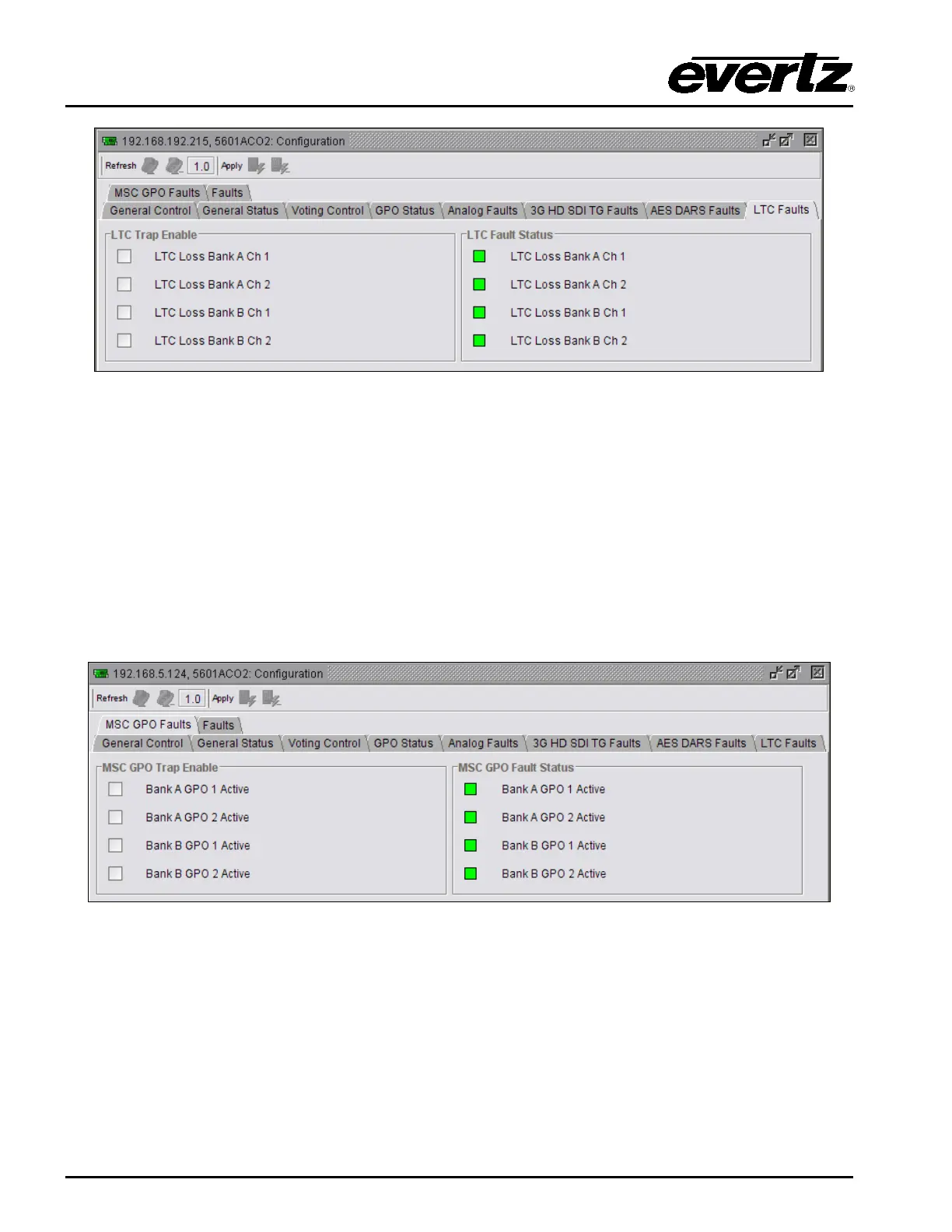

Figure 5-8: VistaLINK
®
Monitoring – LTC Faults
5.6.5. Setting the MSC GPO Faults
This control, as illustrated in Figure
5-9, allows the user to enable MSC GPO traps and monitor the trap
status. To enable a particular trap, simply click the box located beside each trap so that a check-mark
appears. When a check-mark is present, the SNMP trap is enabled. When a check-mark is not
present, the trap is disabled.
The MSC GPO Fault Status section displays whether a GPO is activated or not. An activated GPO
indicates a fault condition. If the box is green, then the corresponding GPO is not active. If the box is
red, then the corresponding GPO has been activated by the 5601MSC.
Figure 5-9: VistaLINK
®
Monitoring – MSC GPO Faults
