Model 5601ACO2 Automatic Changeover Unit
VistaLINK
®
CONFIGURATION Revision 1.2 Page 5-5
5.4.2. General Parameters

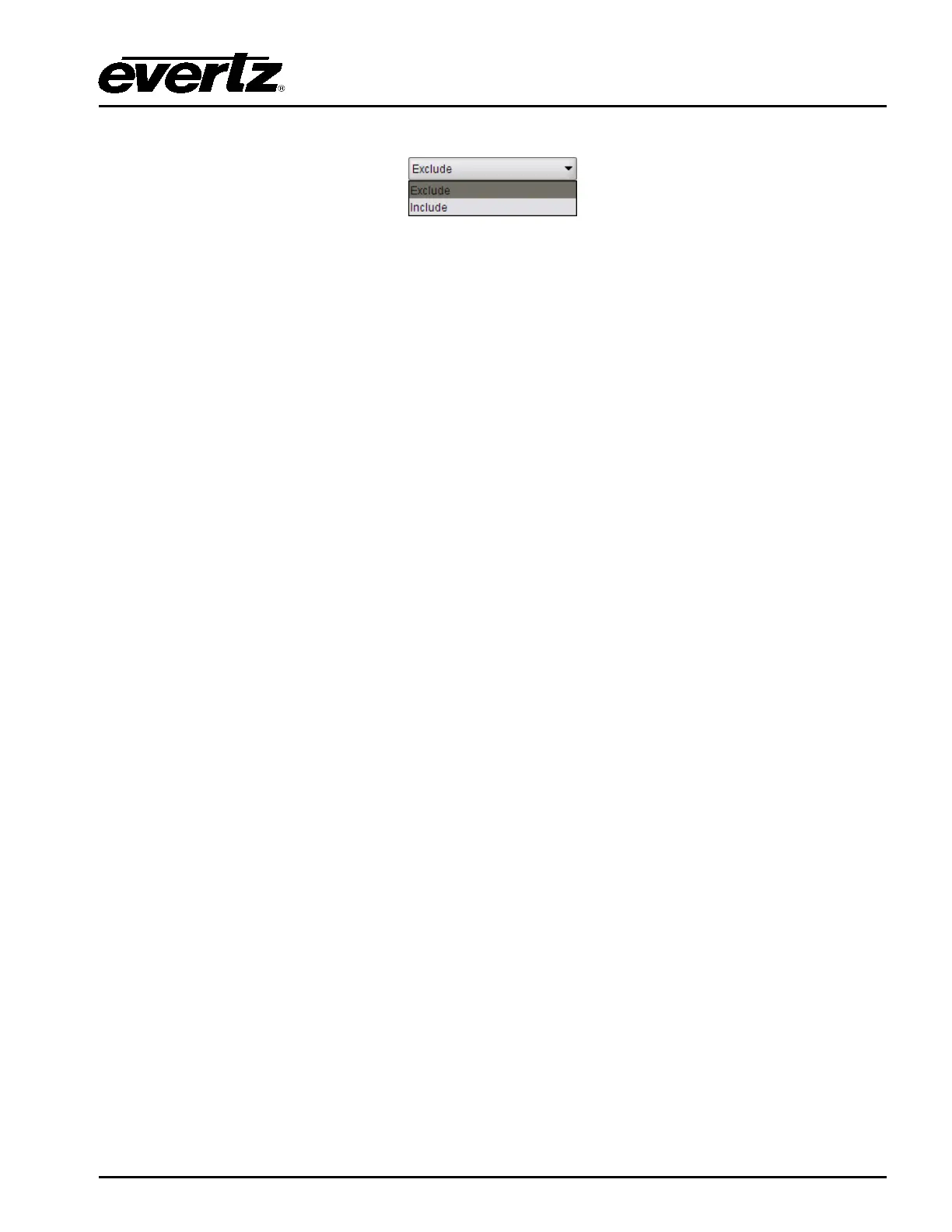

10Mhz Voting: If set to include, the 10Mhz input status will be included in the voting process. If
set to exclude, the input will not be included in the process.
Word Clock Voting: If set to include, the Word Clock input status will be included in the voting
process. If set to exclude, the input will not be included in the process.
5.4.3. Analog TG Voting Parameters
For brevity, only Channel One will be discussed in the manual.
Channel One: If set to include, Channel One will be included in the voting process. If set
to exclude, the control will not be included in the process.
5.4.4. 3G HD SDI TG Voting
Each 5601MSC has eight different test signal outputs that can be monitored. For brevity, only Channel
1-1 will be explained in the manual.
Channel 1-1: If set to include, the SDI TG Channel 1-1 input status will be included in the voting
process. If set to exclude, the input will not be included in the process.
5.4.5. Analog Sync Voting
There are six analog sync outputs that can be monitored. For brevity, only Sync 1 will be explained in
the manual.
Sync 1: If set to include, the Sync 1 inputs will be monitored for presence. If set to
exclude, these inputs will not be included in the process.
5.4.6. DARS Voting
For brevity, only Balanced AES 1 and Balanced Dars will be discussed in the manual.
Balanced AES 1: If set to include, Balanced AES 1 will be included in the voting process. If set to
exclude, the signal will not be included in the process.
Balanced Dars: If set to include, Balanced Dars will be included in the voting process. If set to
exclude, the signal will not be included in the process.
5.4.7. LTC Voting
For brevity, only LTC 1 will be discussed in the manual.
LTC 1: If set to include, LTC 1 will be included in the voting process. If set to exclude,
the input will not be included in the process.
