5700ACO
Automatic Changeover
Automatic Changeover Revision 1.0 Page 7
2. INSTALLATION
2.1. REAR PANEL

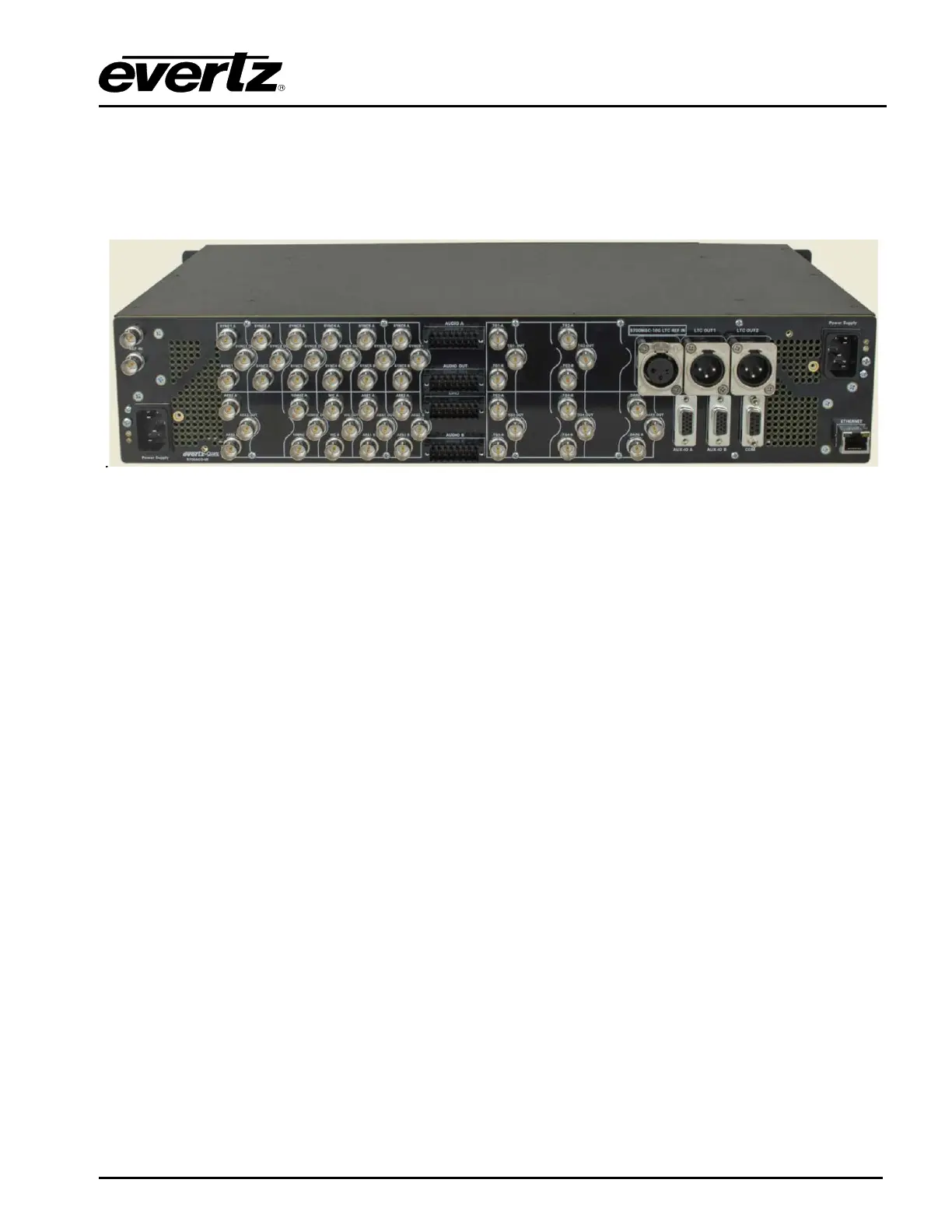

Figure
2-1 : 5700ACO Rear Panel
The following sections describe the purpose of the rear panel connectors of the 5700ACO. Sections
2.1.1 to 2.1.4 describe the specific signals that should be connected to the 5700ACO. Sections 2.4 and
2.5 give more detail on connecting the system.
2.1.1. Coaxial Connections
There are 16 groups of 3 BNC connectors on the 5700ACO rear panel. In each group there is one
labelled A, and another labelled B for connection of the indicated signal from the respective
5700MSC-IP Master Clock/SPG. The BNC labelled OUT provides the output from the auto-changeover
unit for further distribution throughout your company.
DARS OUT:* This group of BNC connectors is for connecting the Digital Audio Reference
Signal (DARS) outputs.
AES OUT: * This group of BNC connectors is for connecting the Unbalanced AES Audio
outputs.
SYNC 1 to 6: These groups of BNC connectors are for connecting the sync pulse / colour black
outputs.
SD/HD/3G SDI: These groups of BNC connectors are for connecting the HD Test signal
generator outputs.
10 MHz: * This group of BNC connectors is for connecting the 10 MHz outputs.
WORD CLOCK: * This group of BNC connectors is for connecting the Word Clock outputs.
* Requires factory installed +AUX hardware option on 5700MSC-IP, IP Master Clocks are available at
extra cost.
