5.5. GPO STATUS
The GPO Status section enables the user to view the status of various GPO Input and Output
conditions for the 5700ACO. These status conditions will not be updated live unless the auto refresh is
enabled.

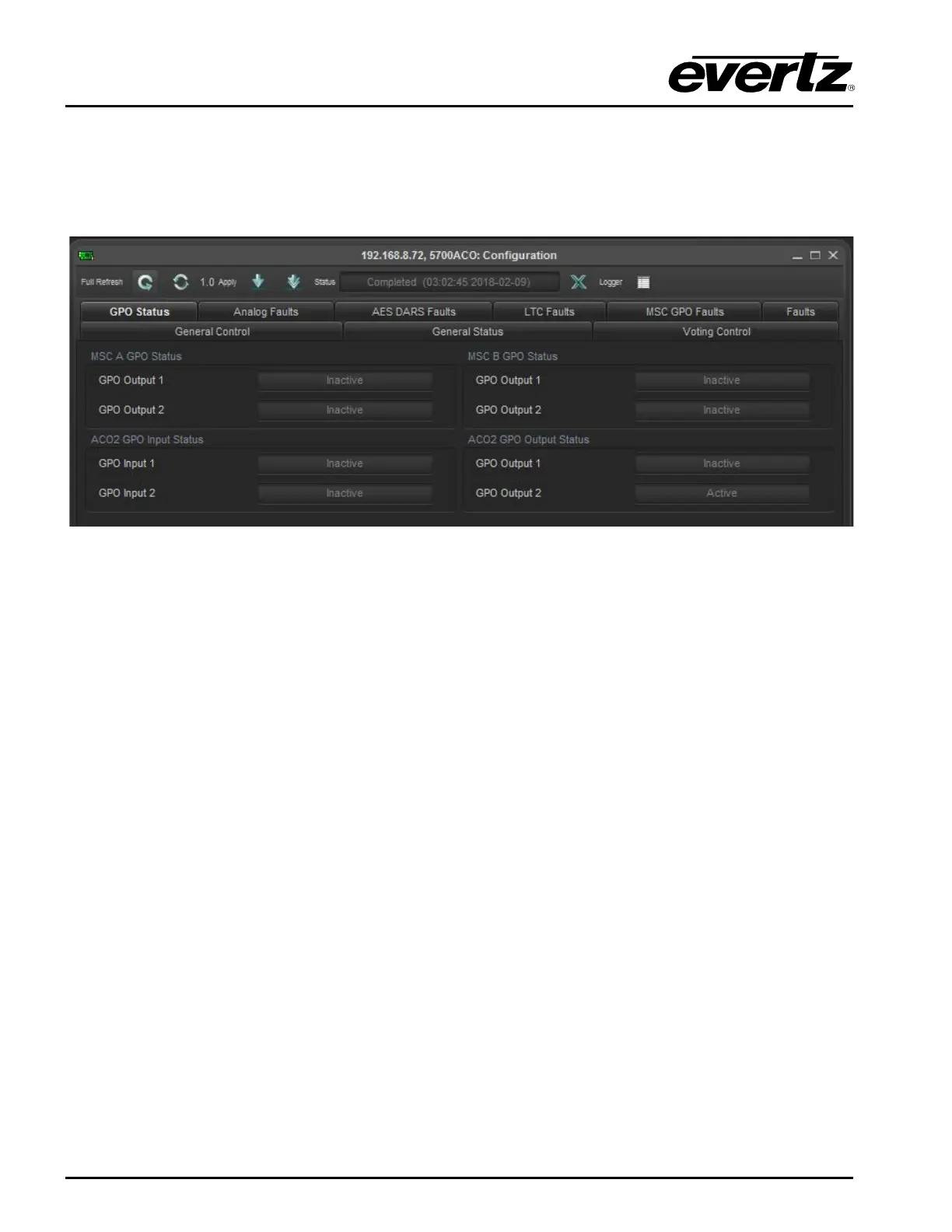

Figure
5-4 : VistaLINK
®
– GPO Status
MSC A GPO Status: This section indicates the status of the two GPOs from the 5700MSC-IP on bank
A. An “Active” condition means the GPO is being asserted by the 5700MSC-IP (pulled low). The
5700MSC-IP can be configured to activate the GPOs on various fault conditions such as fan failure or
GPS loss.
MSC B GPO Status: This section displays the status of the two GPOs from the 5700MSC-IP on bank
B.
ACO GPO Input Status: This section indicates the current status of GPO inputs of the 5700ACO.
ACO GPO Output Status: This section indicates the current status of GPO outputs of the 5700ACO.
See section
3.4 for information on how these GPOs operate.
