5700ACO
Automatic Changeover
Page 46 Revision 1.0
To enable a particular trap, simply click the box located beside each trap so that a check-mark appears.
When a check-mark is present, the SNMP trap is enabled. When a check-mark is not present, the trap
is disabled.
The MSC GPO Fault Status section displays whether a GPO is activated or not. An activated GPO
indicates a fault condition. If the box is green, then the corresponding GPO is not active. If the box is
red, then the corresponding GPO has been activated by the 5700MSC-IP.
* Requires factory installed +AUX hardware option on 5700MSC-IP, IP Master Clocks are available at
extra cost.
5.6.5. Faults
The Faults tab, as illustrated in Figure
5-9, allows the user to enable a variety of traps such as Ten
MHz, Word Clock, Current Output, Power Supply, Fan, Door Open traps.

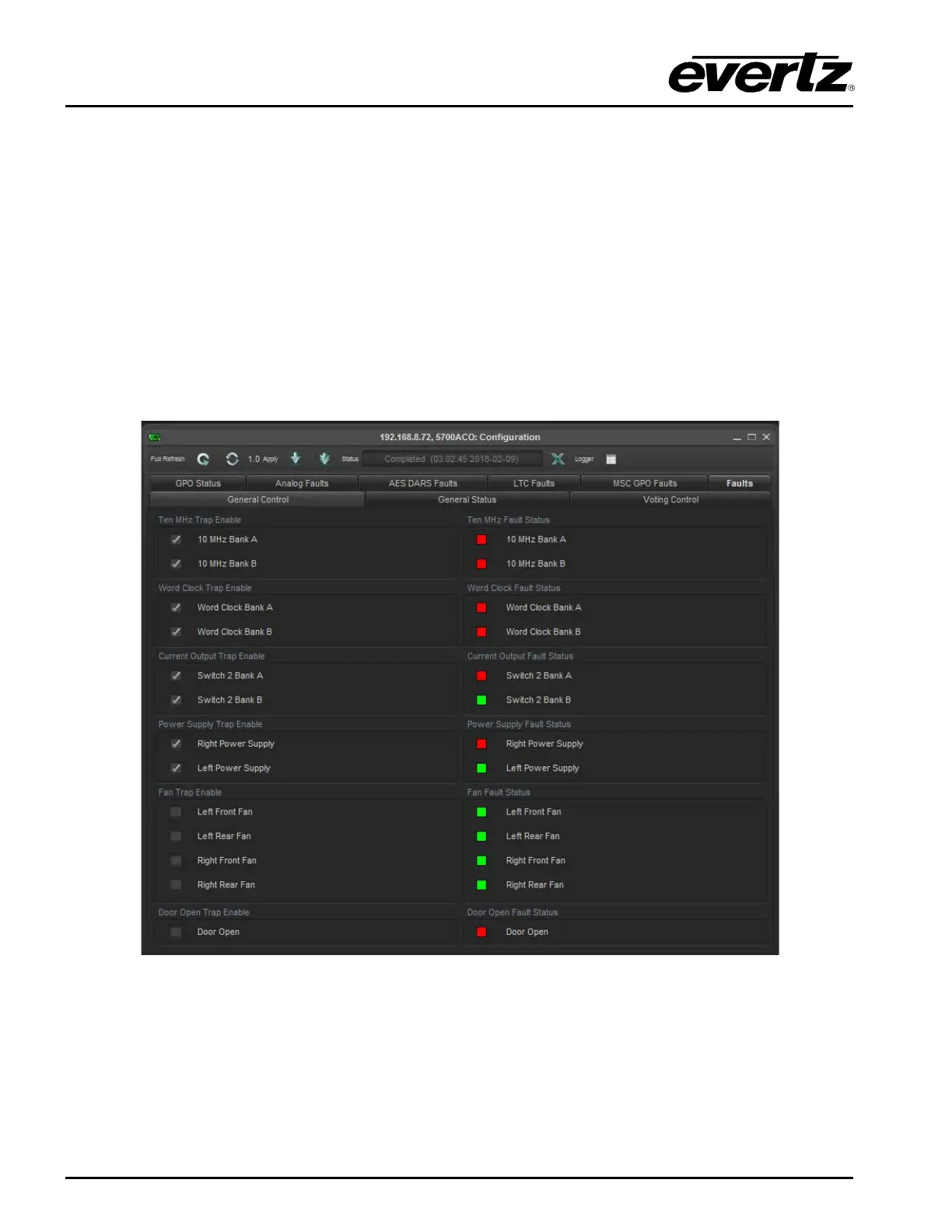

Figure
5-9 : VistaLINK
®
– Faults
To enable a particular trap, simply click the box located beside each trap so that a check-mark appears.
When a check-mark is present, the trap is enabled. When a check-mark is not present, the trap is
disabled.
The Fault section defines whether the respective fault is active or not. If the box is green, then the
corresponding fault is not active. If the box is red, then the corresponding fault is active.
