4.2.3. Unlimited Change Mode
If you want to change when a valid switch criterion is met, then use the "Unlimited Change Mode."
4.3. SWITCHING DECISION TREE
Start
Auto
or Manual
Mode
Automatic
changes
inhibited *
Will we
loose a signal if
we switch
Will we
gain a signal if
we switch
Flash leds
Switch
Auto
No
Yes
Yes
No
Yes
Priority
set to other
side
No
Yes
GPI
or Front
Pannel
FP
A switch
pushed
Manual
Yes
B switch
pushed
Yes
No
No
One
or two GPI
mode
GPI 1
active
GPI 2
active
Yes
Two
GPI
No
No
Yes
GPI 1
One
Switch
to A
Switch
to B
Switch
to A
Switch
to A
Switch
to B
Switch
to B
Not
active
Active
No

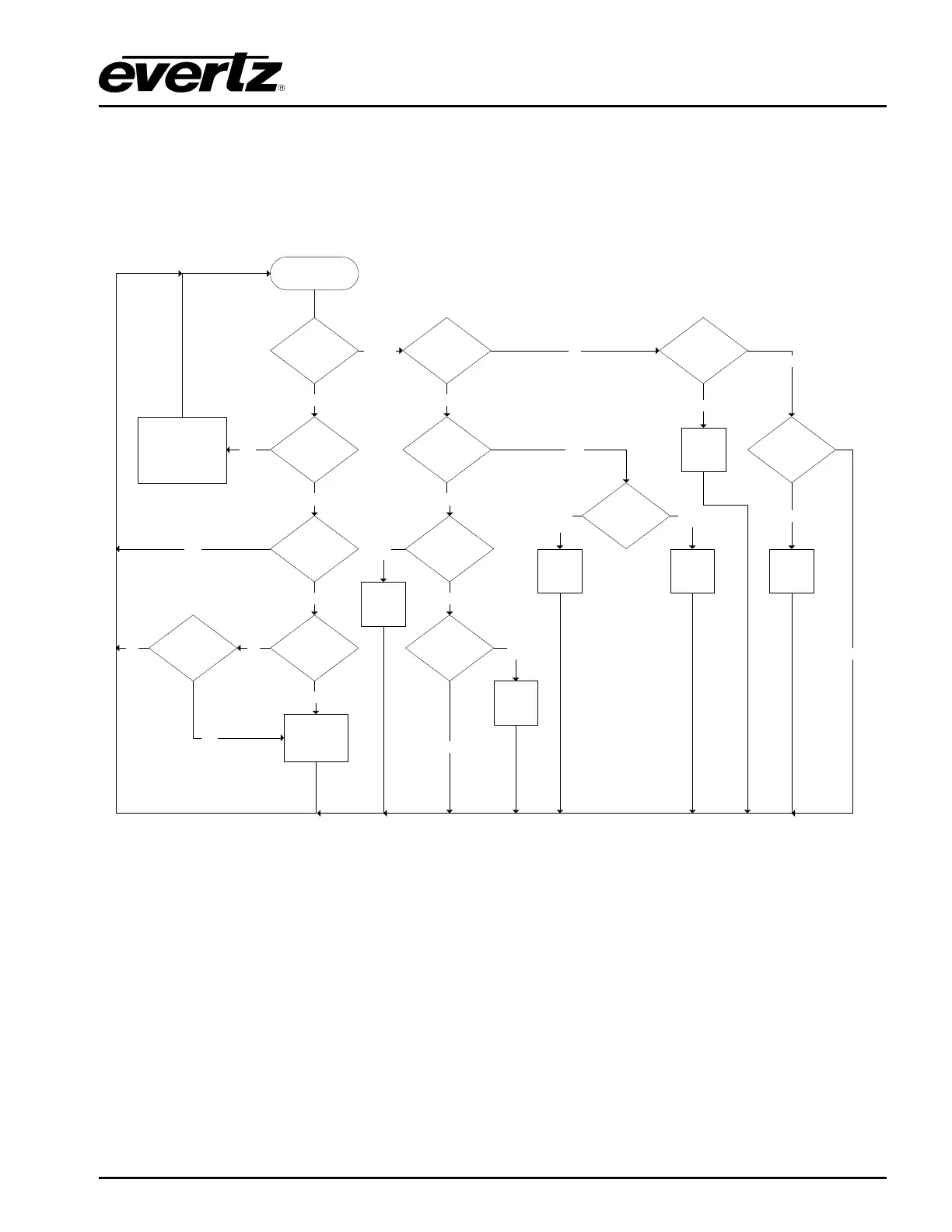

Figure 4-1 : 5700ACO Switching Logic
4.4. SPECIFICATIONS
4.4.1. LTC Outputs
Standard SMPTE 12M frame rate set by 5700MSC-IP
Number of outputs 2
Connector 3 pin male XLR type outputs
Signal Level Set in 5700MSC-IP
