2.4. 5700MSC-IP CONNECTIONS

The 5700MSC-IP unit connected to the A inputs of the 5700ACO will be called Master A. The

5700MSC-IP unit connected to the B inputs of the 5700ACO will be called Master B.

5700MS C -10G LTC REF I N

5700ACO-MI

Figure

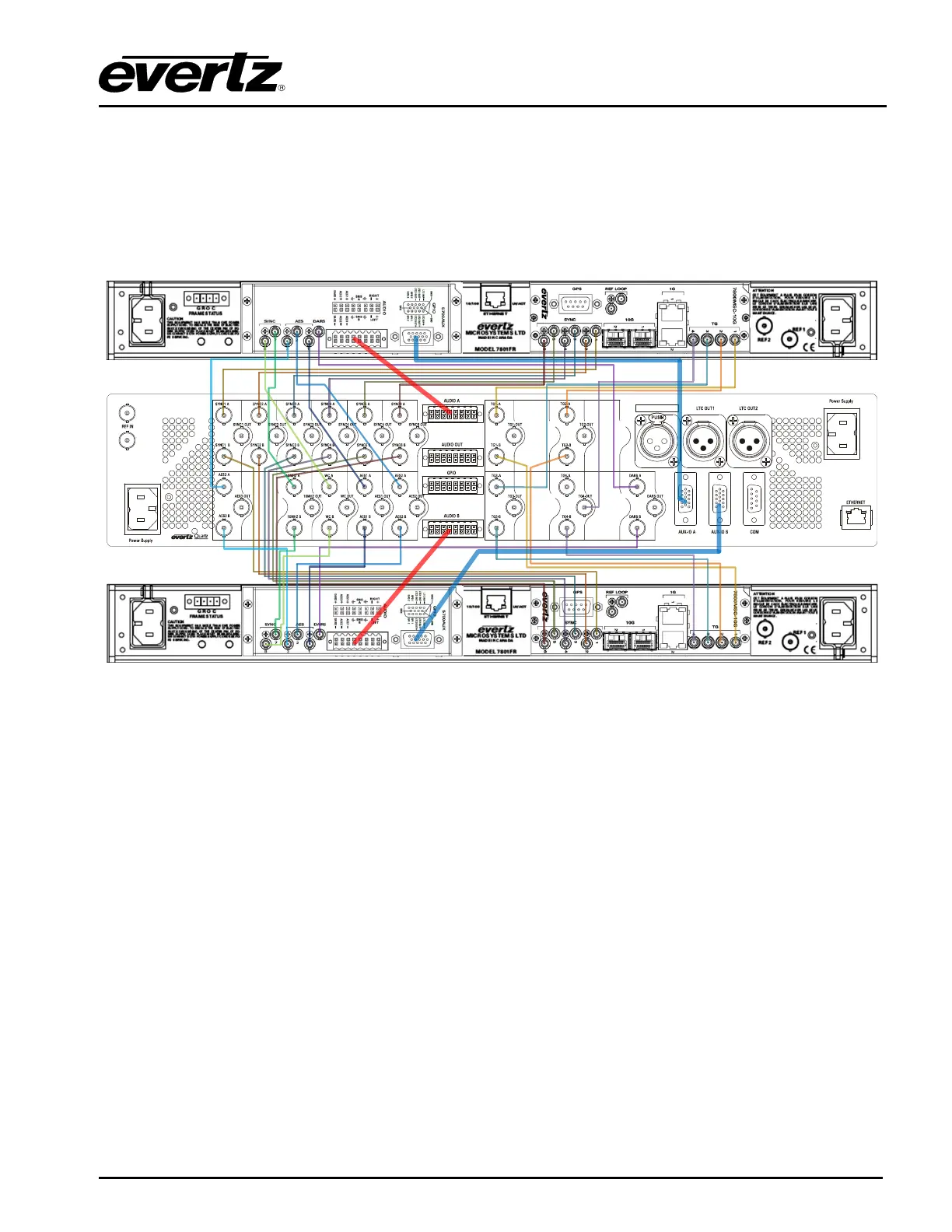

2-2 : Redundant Master Clock/SPG with Auto Changeover System Diagram
