5.6.2. AES DARS Faults*

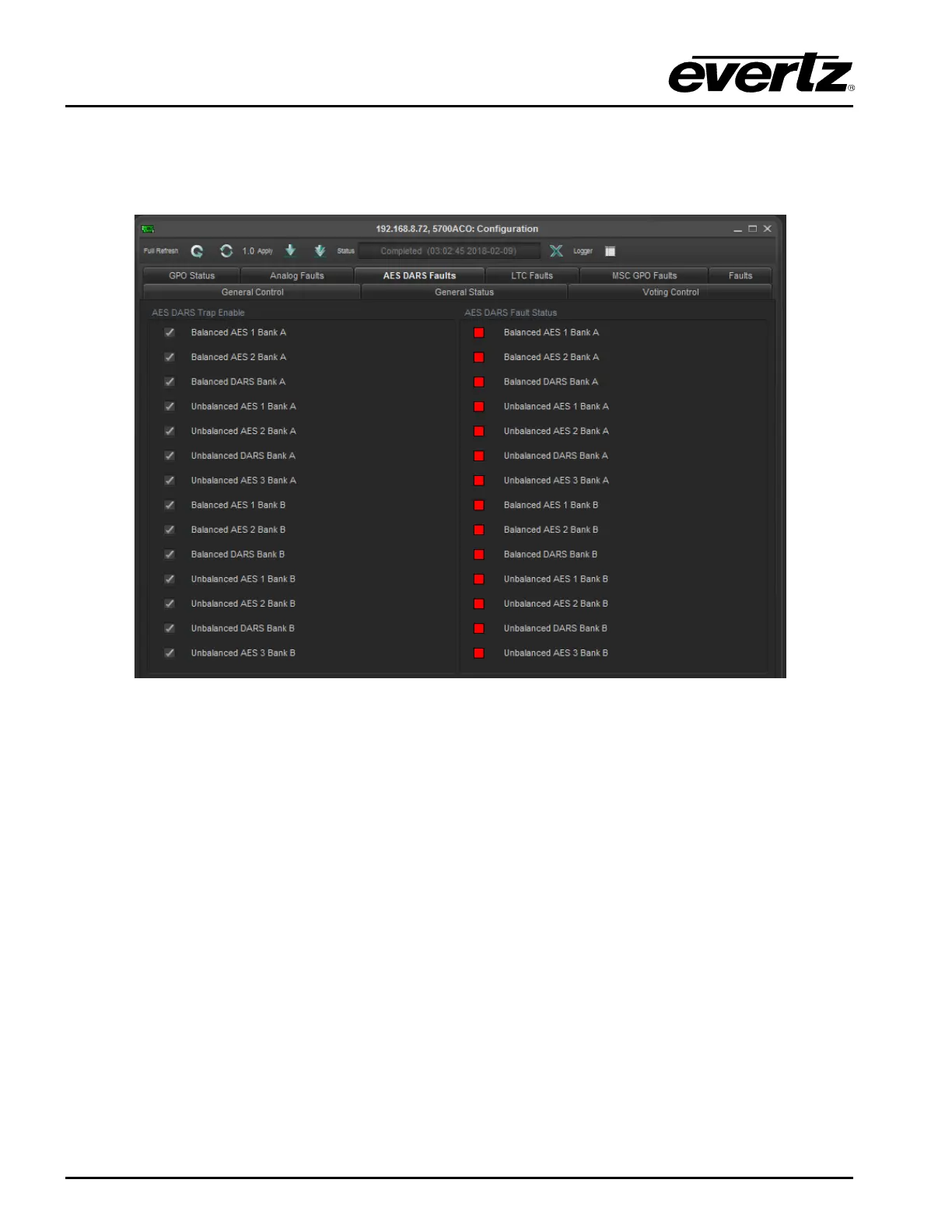

As illustrated in Figure
5-6, this section allows the user to enable AES DARS traps and monitor the trap
status.
Figure
5-6 : VistaLINK
®
– AES DARS Faults
To enable a particular trap, simply click the box located beside each trap so that a check-mark appears.
When a check-mark is present, the SNMP trap is enabled. When a check-mark is not present, the trap
is disabled.
The AES DARS Fault Status section displays whether a fault is active or not. If the box is green, then
the corresponding fault is not active. If the box is red, then the corresponding fault is active.
* Requires factory installed +AUX hardware option on 5700MSC-IP, IP Master Clocks are available at
extra cost.
