5700ACO
Automatic Changeover
Revision 1.0 Page 39
5.3. GENERAL STATUS
The General Status section indicates the status of various parameters for the 5700ACO. These status
conditions will not be updated live unless the auto refresh is enabled.

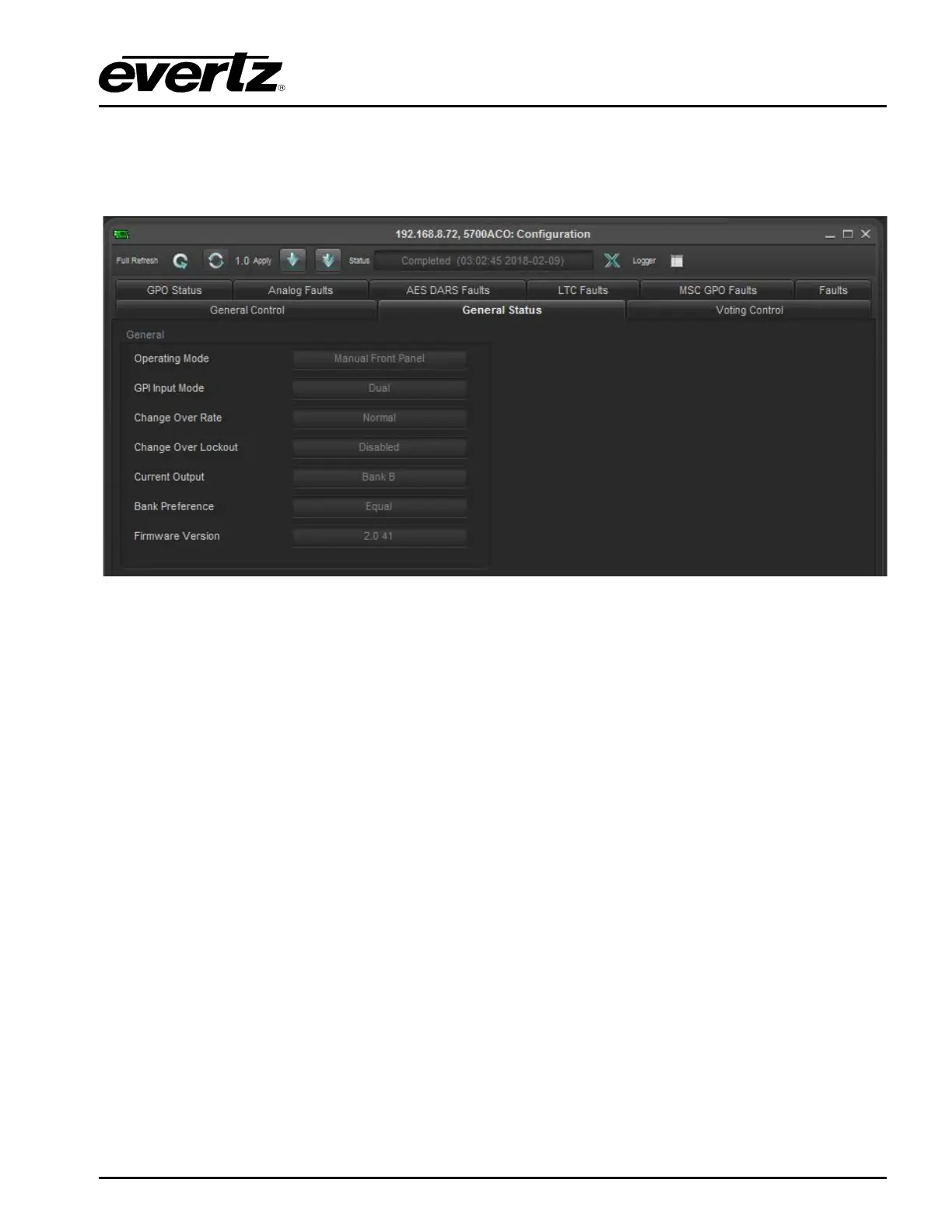

Figure
5-2 : VistaLINK
®
– General Status
Operating Mode: This field indicates the operating mode which is currently in use. This can be set in
the General Control section or by the switches on the main board (See section
3.2).
GPI Input Mode: This field indicates the GPI input mode which is currently in use. The type of GPI
control is set with the DIP switches (See section
3.1.1).
Change Over Rate: This field displays the change over rate that has been selected by the DIP
switches (See section
3.3.2).
Change Over Lockout: This field indicates what kind of change limiting has been selected. Change
limiting is controlled by DIP switches 7 and 8 (See section
3.3.4).
Current Output: Displays which bank is selected as the current output of the 5700ACO.
Bank Preference: This field reports which bank is preferred by 5700ACO. The bank preference is set
by the bank priority DIP switches (See section
3.3.3).
Firmware Version: This field displays the current firmware version.
