5.6. 5700ACO FAULT TRAP CONTROLS
Figure 5-5 to Figure 5-9 5-9 show the 5 tabs used to determine which SNMP trap messages will be
sent by the 5700ACO.
5.6.1. Analog Faults

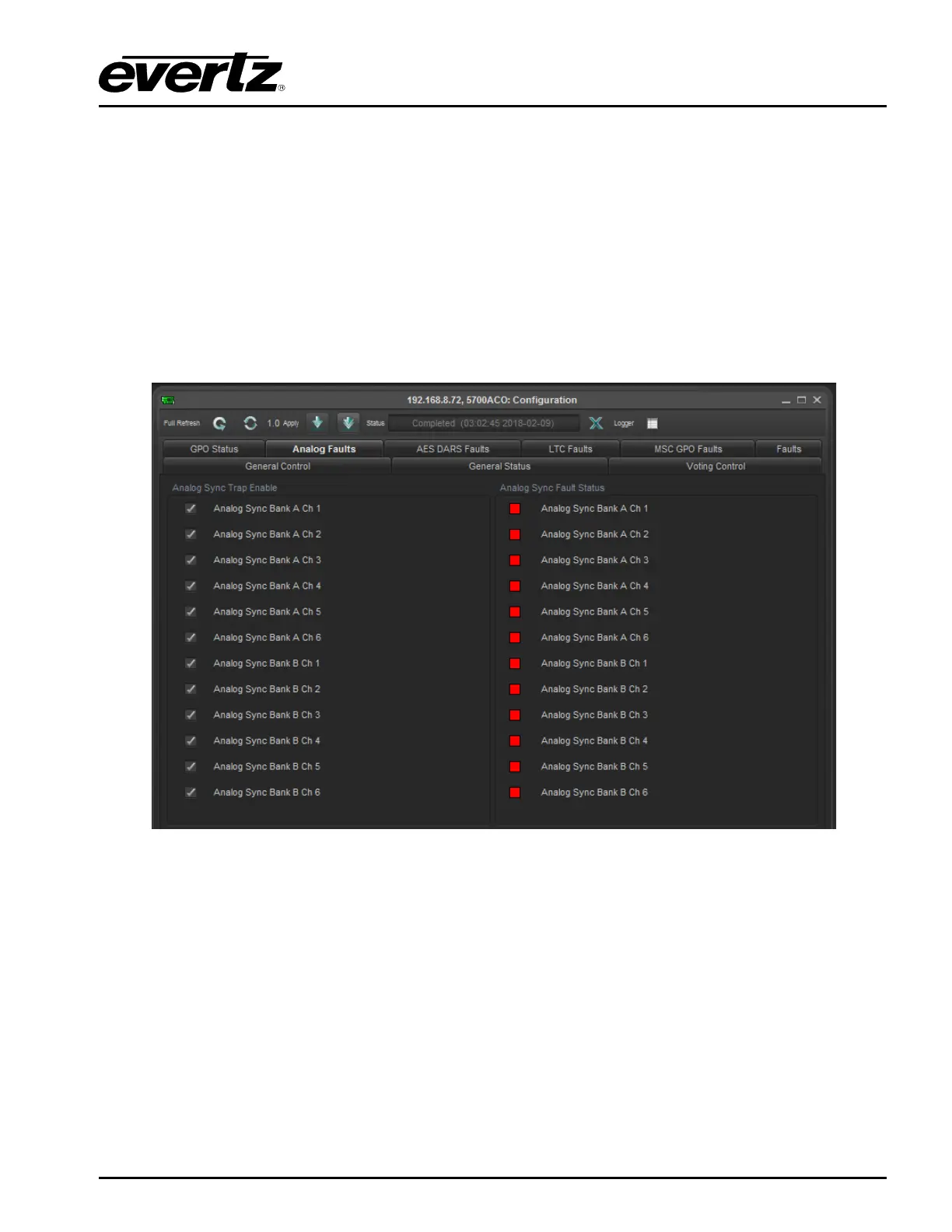

The Analog Faults section, as illustrated in Figure
5-5, allows the user to enable or disable Analog traps
and view trap status. To enable a particular trap, simply click the box located beside each trap so that a
check-mark appears. When a check-mark is present, the trap is enabled. When a check-mark is not
present, the trap is disabled.
Figure
5-5 : VistaLINK
®
– Analog Faults
