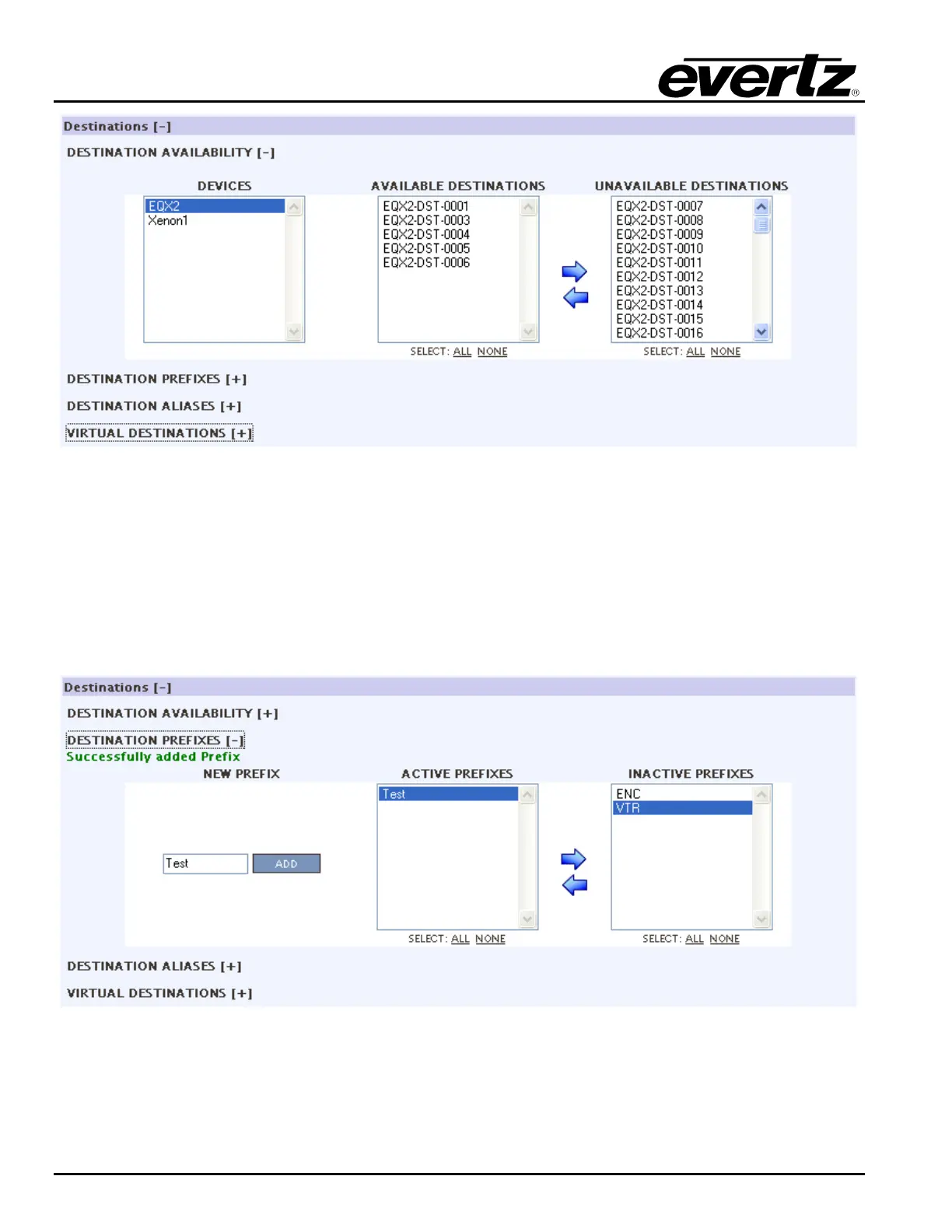

Figure 4-19: Destinations

b) Add prefixes to the profile by either entering new ones, which will be local to this profile only

or by selecting from the global prefixes and clicking the Add button, as shown in Figure

4-20. Again remember that prefixes are used to simplify generating aliases in the WCT, as

well as to create the actual category buttons used for routing sources or searching for

destinations while using the intelligent routing panels.

Figure 4-20: Prefixes
