EQX Server Manual
Revision 2.2 Page 23

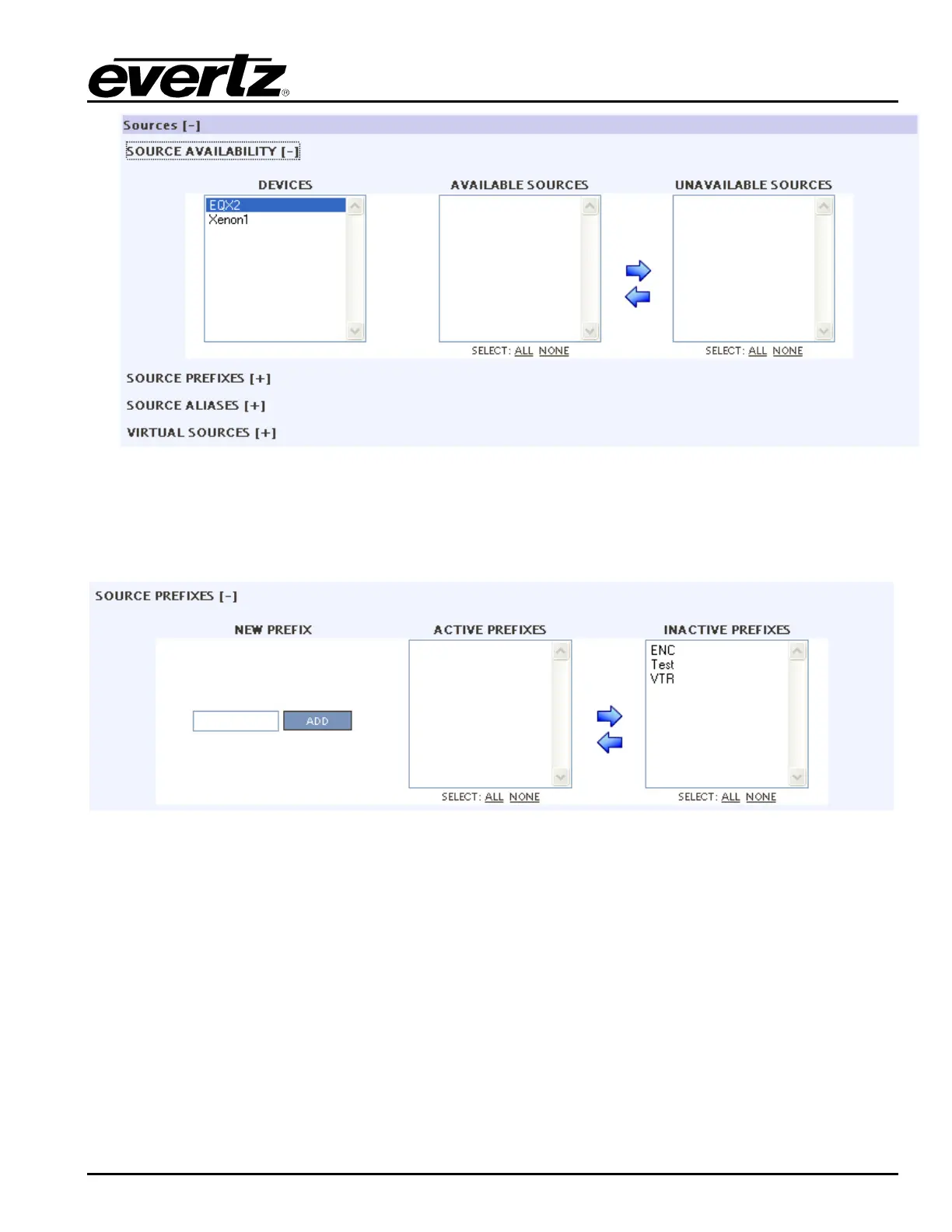

Figure 4-24: Profile - Source Availability
5. Configure the Source Prefixes for the profile using the same procedure outlined for the
destination prefixes.
Figure 4-25: Profile - Source Prefixes
6. Configure the Source Aliases for the profile using the same procedure outlined for the
Destination Aliases.
