Test Setup - Test Configurator, Timer, and System
NetBlazer 93

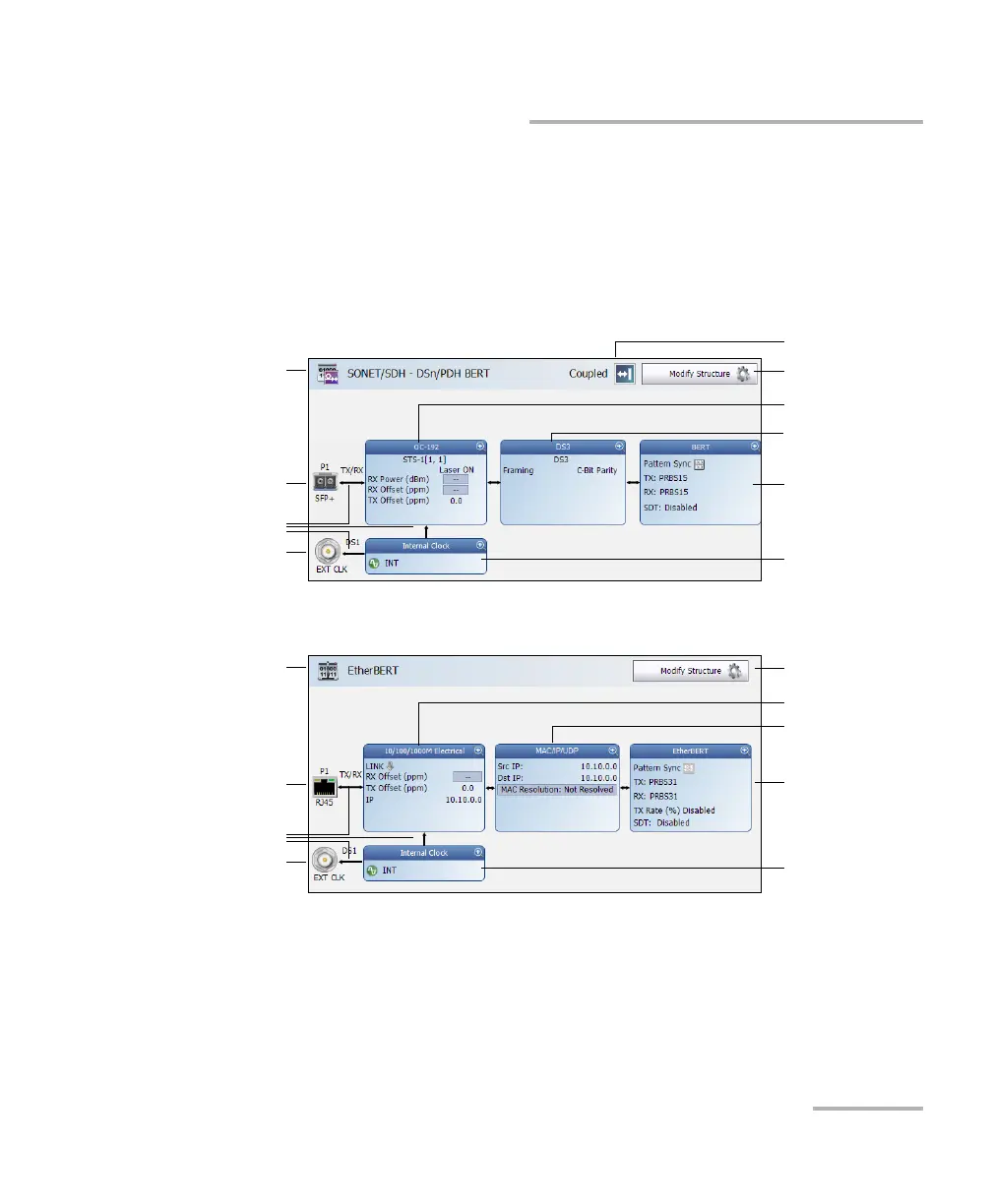

Test Configurator Overview
 Remote operation mode allows to select the remote operation
mode. Tap on the button to change the remote operation mode.
 Remote block displays and allows to change basic remote settings.
Tap on the More button to access all settings.
 Transport Test Applications:
 Ethernet Test Applications:
Physical
Interface Port
Test Application
Modify Structure
Te st B l o ck
Clock Block
Physical Clock Port
Interface Block
Arrows
Protocol Block
To po lo g y
Physical
Interface Port
Test Application
Modify Structure
Protocol Block
Te st B l o ck
Clock Block
Physical Clock Port
Interface Block
Arrows
