Maintenance
132 MaxTester Series
Installing or Removing the Power Meter and VFL

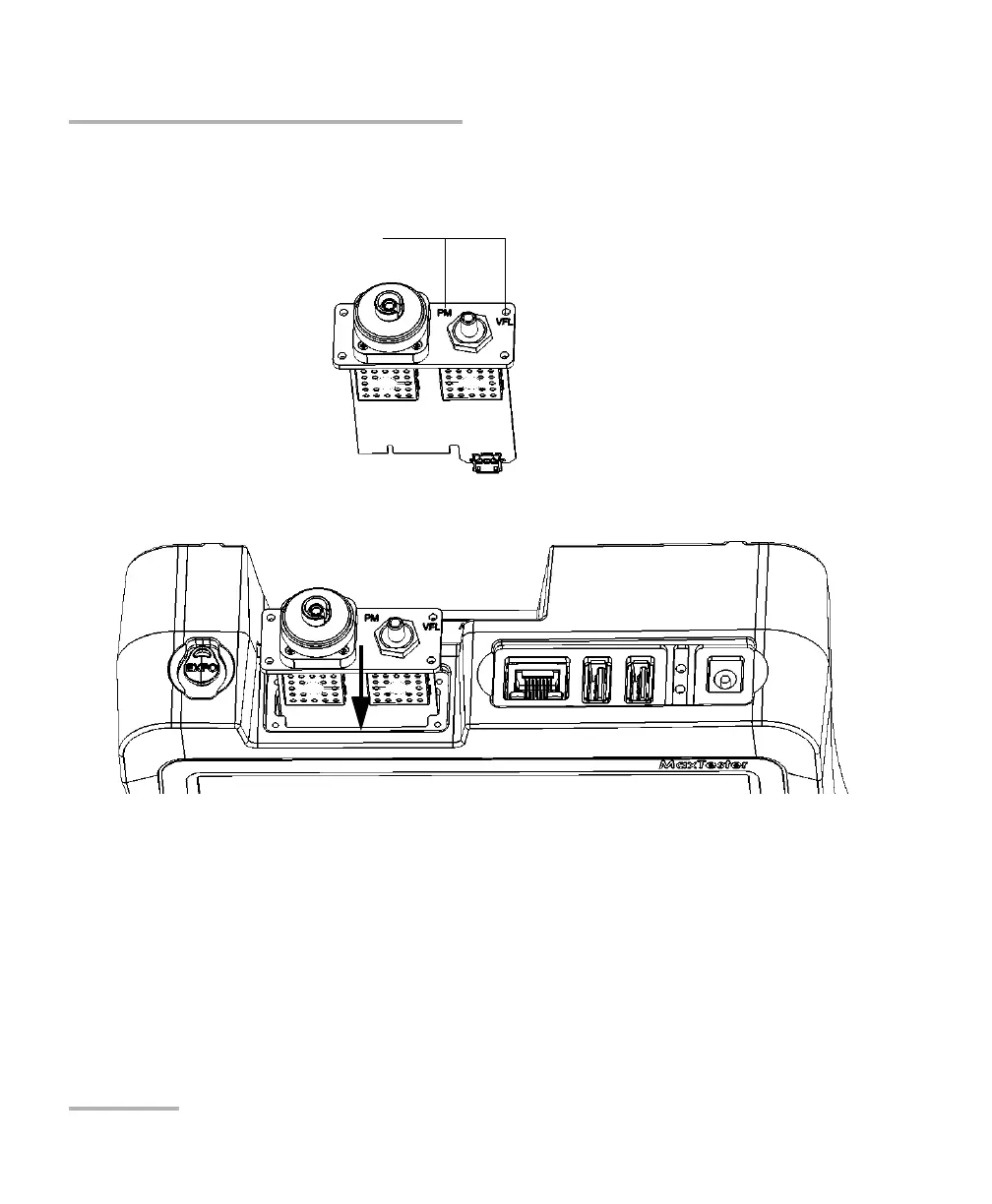

8. By holding the power meter by its faceplate, position it so that the
writings are right-side up.
9. Carefully align the power meter with the corresponding bay.
10. Gently slide the power meter into the bay until its faceplate is flush
with the edge of the bay.
11. Using a screwdriver, secure the power meter in place with all the
screws that you have removed at step 6.
