Operation

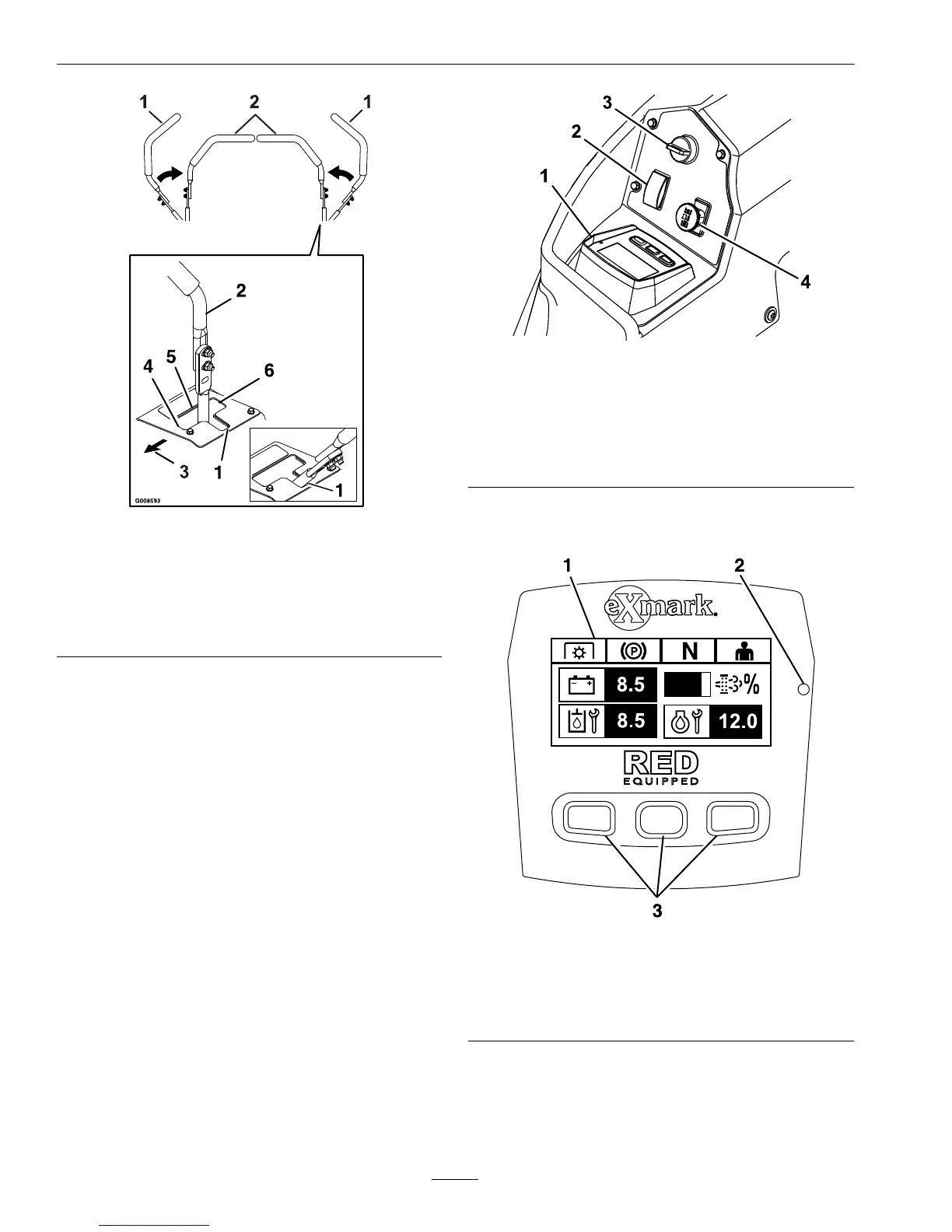

g008593
Figure6
1.Neutrallockposition
(handlesout)
4.Forward
2.Neutraloperateposition
(handlesin)
5.Neutral(operate)
3.FrontofUnit
6.Reverse
REDEquippedLogicDisplayUnit
(LDU)
Locatedontherightconsole.
g225792
Figure7
1.REDEquippedLogic
DisplayUnit(LDU)
3.Ignitionswitch
2.Deckliftswitch(also
foldswingson96inch
deck)
4.PTOengagementswitch
TheREDEquippedLogicDisplayUnit(LDU)
monitorsanddisplaysmachinesysteminformation.
g216581
Figure8
LDU(LogicDisplayUnit)
1.Informationscreen
3.Pushbuttons
2.LEDstatuslight
RefertotheREDEquippedUser’sGuide-Diesel
Modelsfordetailedinformationexplaining
theOperatorinterfaceallowinguserstoaccess
26
