Exmark Lazer Z Series User Manual

Operation

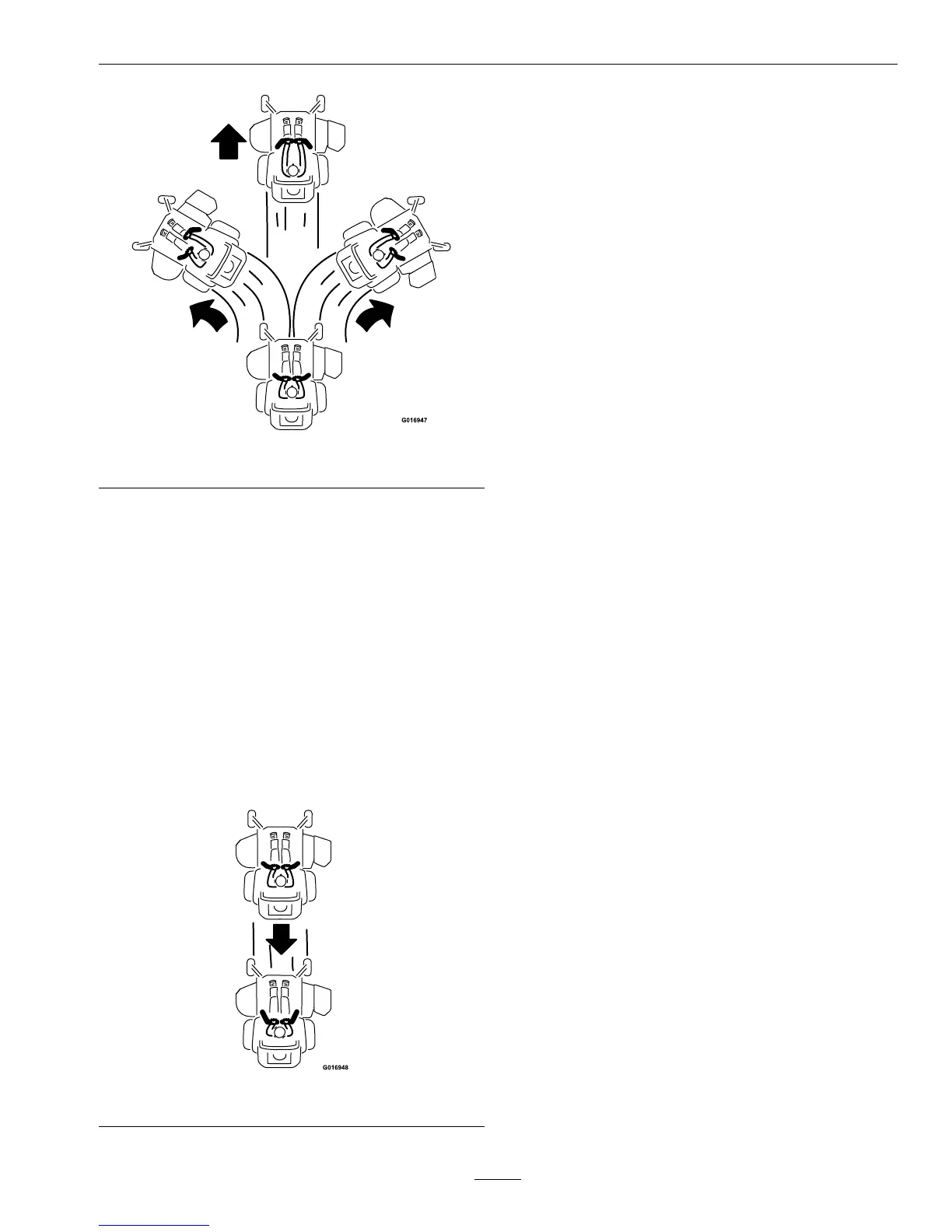

g016947
Figure15
Toturnleftorright,pullthemotioncontrollever
backtowardneutralinthedesiredturndirection.
Themachinewillmovefasterthefartherthe
motioncontrolleversaremovedfromtheneutral
position.
4.Tostop,positionbothmotioncontrolleversin
theneutraloperateposition.
DrivinginReverse
1.Movethemotioncontrolleversinwardtothe
neutraloperateposition.
2.Tomoverearwardinastraightline,moveboth
leversrearwardwithequalpressure.
g016948
Figure16
Toturnright,releasepressureontheRHmotion
controlleverandtherearofthemachinewill
movetowardstherearandtotheright.
Toturnleft,releasepressureontheLHmotion
controlleverandtherearofthemachinewill
movetowardstherearandtotheleft.
3.Tostop,positionbothmotioncontrolleversin
theneutraloperateposition.
AdjustingtheCuttingHeight–
60and72InchDecks
Thecuttingheightofthemowerdeckisadjusted
from1to51/2inches(2.54cmto14cm)in1/4
inch(6.4mm)increments.
1.Stopthemachineandmovethemotioncontrol
leversoutwardtotheneutrallockedposition.
2.DisengagethePTO.
Note:Whenchangingthecuttingheight
positions,alwayscometoacompletestop
anddisengagethePTO.
3.Pressthetopofdeckliftswitch,onthepanel
control,toraisethedeck.Pushthebottomofthe
switchtolowerthedeck.
4.Inserttheheightadjustmentpinintothehole
correspondingtothedesiredcuttingheight.
Seethedecalonthesideofthedeckliftplatefor
cutheights.
AdjustingtheCuttingHeight–
96InchDeck
Thecuttingheightofthemowerdeckcanbeadjusted
from1to51/2inches(2.54cmto14cm)in1/4
inch(6.4mm)increments.
1.Positionthemoweronaatsurface.
2.DisengagethePTO.
3.Pressthetopofdeckliftswitch,onthepanel
control,toraisethecenterdeckandtheouter
wings.
4.Stopengine,waitforallmovingpartstostopand
engagetheparkingbrake.
5.Adjustthecenterdeck:
A.Removetheheightadjustmentpinfromthe
deckliftplateontherightsideofthecenter
deck.
33

Exmark Lazer Z Series Specifications

General

Engine Brand	Kawasaki, Kohler
Engine Type	Air-cooled, 4-stroke, gasoline
Cutting Width	52 in, 60 in, 72 in
Deck Construction	Fabricated
Deck Material	Steel
Drive Type	Hydrostatic
Transmission	Hydrostatic
Forward Speed	Up to 12.5 mph
Reverse Speed	Up to 5 mph
Tires (Rear)	26 x 12-12 (depending on model)
Turning Radius	Zero-turn
Cutting Height	1.5-5 inches (adjustable)
Speed	Up to 12.5 mph
Warranty	5-year / 1, 500-hour (Engine warranty varies by manufacturer)
