Exmark Lazer Z Series User Manual

Operation
mm)clearancetothegroundtominimizegouging
androllerwearordamage.

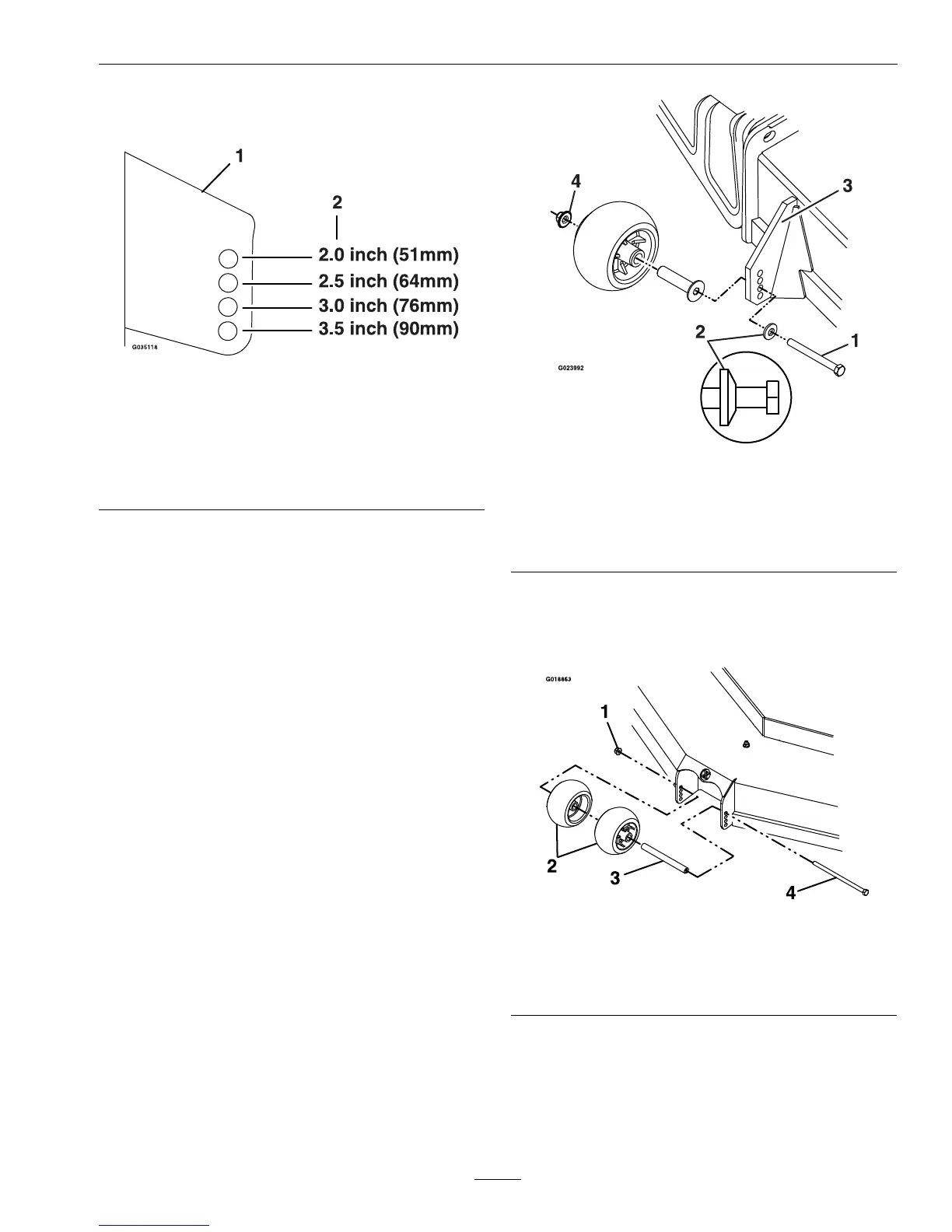

g035118
Figure19
Forcuttingheightsabove3.5inches(90mm)usethe
bottomhole.Therollerswillstillbeeffectiveagainst
scalping.
1.Anti-scalproller
mountingbracket
2.Cuttingheight
ForMaximumDeckFlotation,placetherollers
oneholepositionlower.Rollersshouldmaintain
1/4inch(6.4mm)clearancetotheground.Do
Notadjusttherollerstosupportthedeck.
7.Reinstallthemountinghardware:
•SideDischargeModels:
A.Besuretherollerboltsareinstalledwith
thespringdiscwasherbetweenthehead
oftheboltandthemountingbracket(see
Figure20).
B.Torquethe3/8nylocnutto50–55ft-lb
(68-75N-m).
g023992
Figure20
1.3/8-16X33/4Grade8
bolt
3.Frontrightanti-scalp
bracketshown
2.Springdiscwasher
(conetowardsbolthead)
4.3/8nyloc-torqueto50-55
ft-lb(68-75N-m)
•RearDischargeModels:
Torquethe3/8nylocnutto30-35ft-lb(41-47
N-m)(seeFigure21).
g018862
Figure21
1.3/8nyloc-torqueto30-35
ft-lb(41-47N-m)
3.Spacer
2.Anti-scalprollers4.Bolt
The96inchdeckhas13anti-scalprollerlocationsto
adjustseeFigure22.
35

Exmark Lazer Z Series Specifications

General

Engine Brand	Kawasaki, Kohler
Engine Type	Air-cooled, 4-stroke, gasoline
Cutting Width	52 in, 60 in, 72 in
Deck Construction	Fabricated
Deck Material	Steel
Drive Type	Hydrostatic
Transmission	Hydrostatic
Forward Speed	Up to 12.5 mph
Reverse Speed	Up to 5 mph
Tires (Rear)	26 x 12-12 (depending on model)
Turning Radius	Zero-turn
Cutting Height	1.5-5 inches (adjustable)
Speed	Up to 12.5 mph
Warranty	5-year / 1, 500-hour (Engine warranty varies by manufacturer)
