447153 ISSUE I REV. A PAGE 2 OF 4

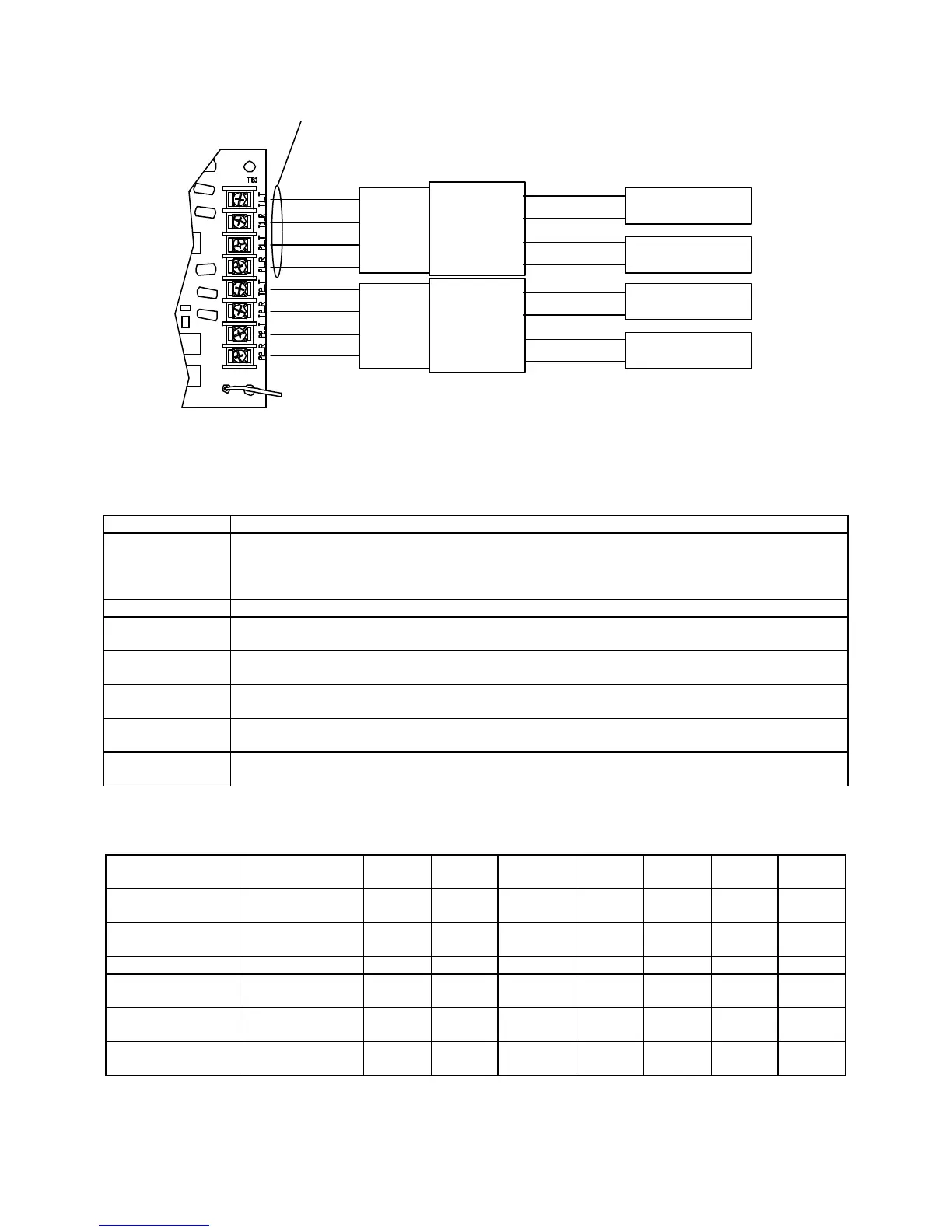

413699 WIRING
NOTE: The RJ31X provides a convenient connection allowing the
DACT to be installed and removed without requiring re-wiring
and can be installed by the telephone installer.
413699 FORMAT DESCRIPTION
Format Description
SIA DCS 8 Security Industry Association - Digital Communications Standard. Format may send up to eight events a
call. SIA 1997 Level Ia compatibility with support for O (old) blocks and 300 Baud (FAST) operation.
Sends an account number (up to 6 digits), a 2 character code and 3-digit identifier up to four times with
FSK frequency encoding.
SIA DCS 20 See SIA DCS 8, except format may send up to twenty events a call.
Ademco Contact ID Sends a 4-digit account number, a 3-digit code and 3-digit identifier up to four rounds of dual tone multiple
frequency with 1400 and 2300 Hz handshake frequency.
3/1 1400HZ Sends a 3-digit account number and a 1-digit code up to four rounds at 20 pps with 1400 Hz handshake
frequency.
3/1 2300HZ Sends a 3-digit account number and a 1-digit code up to four rounds at 20 pps with 2300 Hz handshake
frequency.
4/2 1400HZ Sends a 4-digit account number and a 2-digit code up to four rounds at 20 pps with 1400 Hz handshake
frequency.
4/2 2300HZ Sends a 4-digit account number and a 2-digit code up to four rounds at 20 pps with 2300 Hz handshake
frequency.
COMPATIBLE RECEIVERS/FORMATS
Receiver
Manufacturer
Compatible
Receivers
SIA DCS
8
SIA DCS
20
Ademco
Contact ID
3/1
1400HZ
3/1
2300HZ
4/2
1400HZ
4/2
2300HZ
Osborne-Hoffman,
Inc.
QUICKALERT!
Model II
Ademco
Contact ID
Fast 3+1
1400HZ
Fast 3+1
2300HZ
Fast 4+2
1400HZ
Fast 4+2
2300HZ
Osborne-Hoffman,
Inc.
OH2000 SIA 1 SIA 1 Ademco
Contact ID
Fast 3+1
1400HZ
Fast 3+1
2300HZ
Fast 4+2
1400HZ
Fast 4+2
2300HZ
Radionics, Inc. D6500 3x1 3x1 4x2 4x2
Silent Knight Security
Corp.
9000 SIA 8 SIA 20 SK 3/1 SK 3/1 SK 4+2 SK 4+2
Silent Knight Security
Corp.
9500 SIA DCS SIA DCS Ademco
Contact ID
SK 3/1 SK 3/1 SK 4+2 SK 4+2
Silent Knight Security
Corp.
9800 SIA DCS SIA DCS Ademco
Contact ID
SK 3/1 SK 3/1 SK 4+2 SK 4+2
Telephone Line Connection Ratings:
Non-Power Limited
Supervised for open or shorted circuit.
Voltage: 24VDC nominal
Ringer Equivalence: 0.4B
Telephone Line #1 Connection
from TELCO
Optional Output to telephone
(Note: The DACT may seize
the line to report events)
Telephone Line #2 Connection
from TELCO
Optional Output to telephone
(Note: The DACT may seize
the line to report events)
8-PIN
MODULAR
PLUG
8-PIN
MODULAR
PLUG
RED
GREEN
GREY
BROWN
RED
GREEN
GREY
BROWN
RJ31X
JACK
RJ31X
JACK
TIP
RING
TIP
RING
TIP
RING
TIP
RING
Faraday P/N 447109
Cable Assembly
