12530/12540 OWNER'S MANUAL
P/N 447203 Issue I V-9
Style 6 provides redundant communication paths.

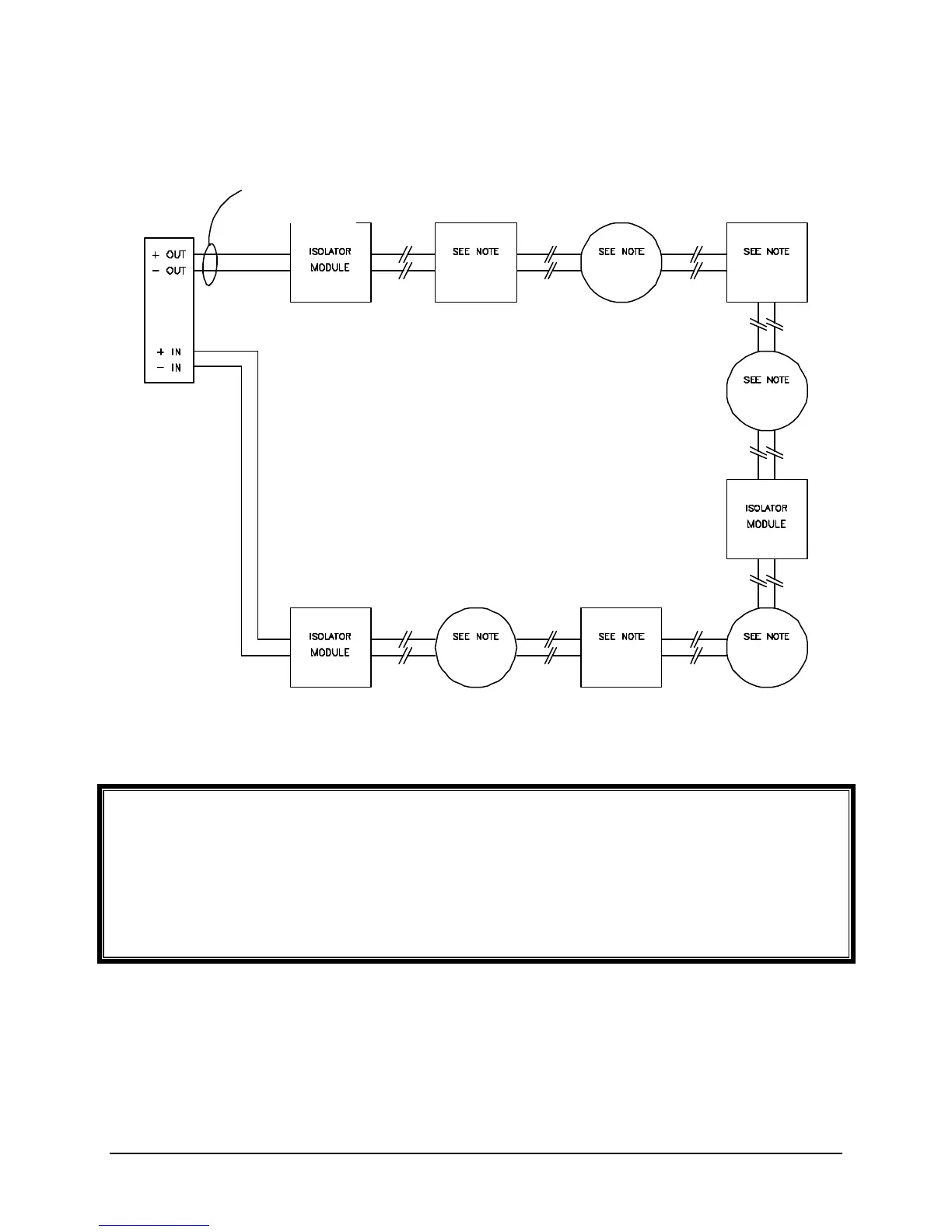

ADDRESSABLE DEVICE CIRCUIT
WIRING / OPERATION COMPARABLE TO NFPA STYLE “6”
Note:
Faraday Addressable Devices:
Detectors, Monitor Modules, or Control Modules up to a maximum of 60 devices per addressable
device circuit. Maximum of 20 devices between Isolator Modules. Maximum of 12 Isolator
Modules per addressable device circuit.
System Sensor Addressable Devices:
Sensors, Monitor Modules, or Control Modules up to a maximum of 99 Sensors and 99 Modules
per addressable device circuit. Recommended maximum of 25 devices between Isolator
Modules.
