CONFIGURATION OF 9159 CONTROL MODULE

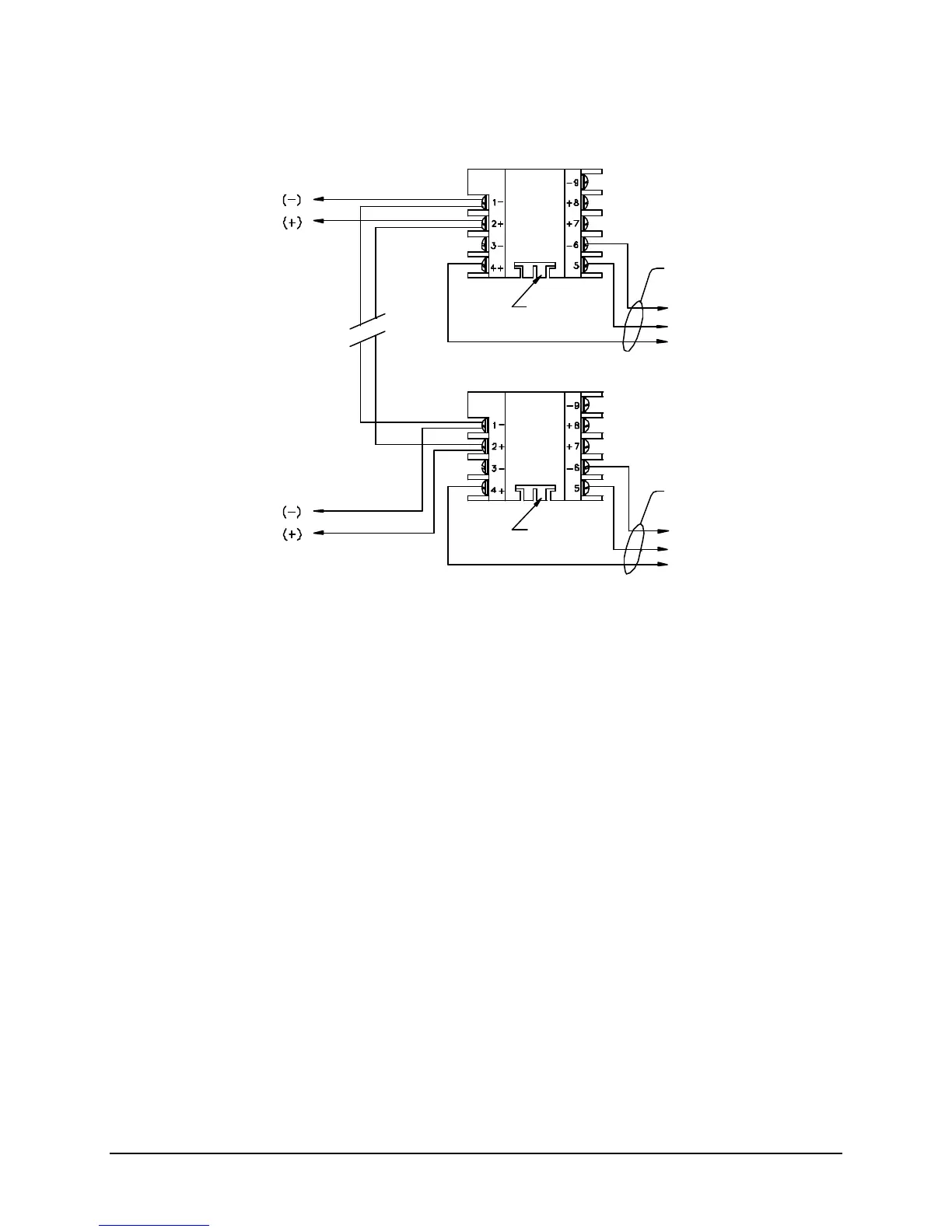

TYPICAL DRY FORM “C” CONTACT OUTPUT
Notes:
1. This wiring diagram shows only general information about this device. For specific wiring and
installation information, read the instructions provided with the device.
2. Relay contact ratings:
Resistive: 2 A., 30VDC
Inductive: 1 A., 30VDC (0.6pf)
0.3A., 110VDC (0.35pf)
0.3 A., 120VAC (0.35pf)
3. See Article 370 of the N.E.C. for proper box depth.
Faraday 9159 Control Module:
(System Sensor M500CH)
Device Circuit
Not supervised
Addressable
Device
Break tabs
Normally closed
Normally open
Normally closed
Normally open
Not supervised
To Next Page
