4.7 POWER SUPPLY CONNECTION
When connecting the power supply cable, select the correct wiring type, depending on the type of supply
Insert the power supply cable through the nylon joint from the boiler’s base. Loosen the joint’s nut and tighten it again after
inserting the power supply cable.
For models 6-9-12-18-24 KW
   


 

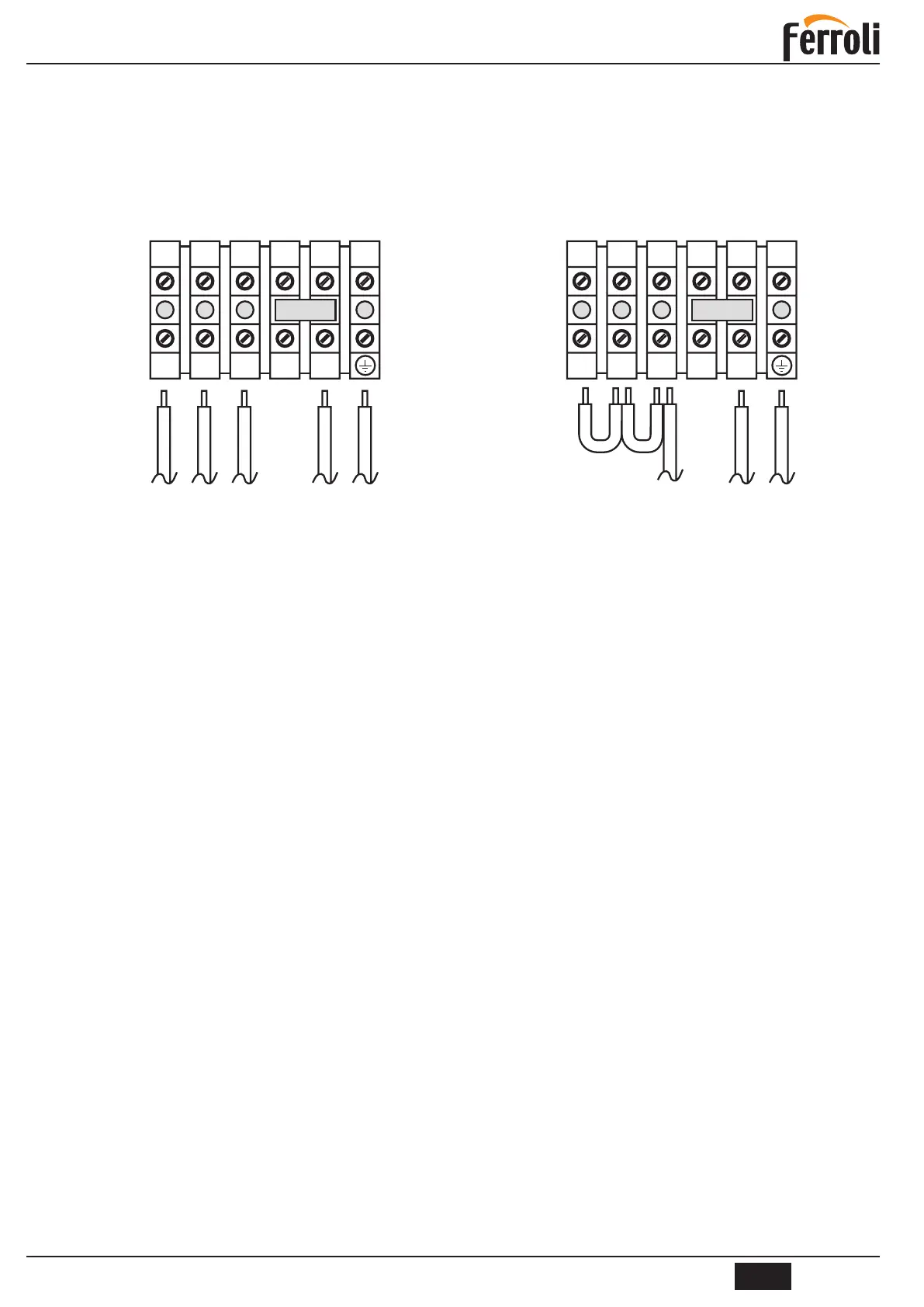

g. 18 Three phase Wiring
For models 6-9 KW
   


g. 19 Single phase Wiring
