Ferroli TOR - Diagrama Electrica Pentru Modelele 18 ȘI 24

TOR
cod. 3542B750 - Rev 05 - 07/2022
52
RO
26
TOR
TOR
cod. 3542B750 - Rev 00 - 05/2022
26
EN
4.6.2 
 - For models 18 - 24
Key
2 Safety thermostat (manual reset)
3 Heating temperature sensor
4 Solid-state relay
6 Circuit breaker
32 Central heating pump
95 Diverting valve (optional)
114 Water pressure switch
138 Outside temperature sensor (optional)
139 Room unit (optional)
155 Storage tank sensor (optional)
 Before connecting the room thermostat or the remote timer control, remove the jumper from terminals 9-10
on the terminal block.
Fig. 18 - Pentru modelele 12 - 24

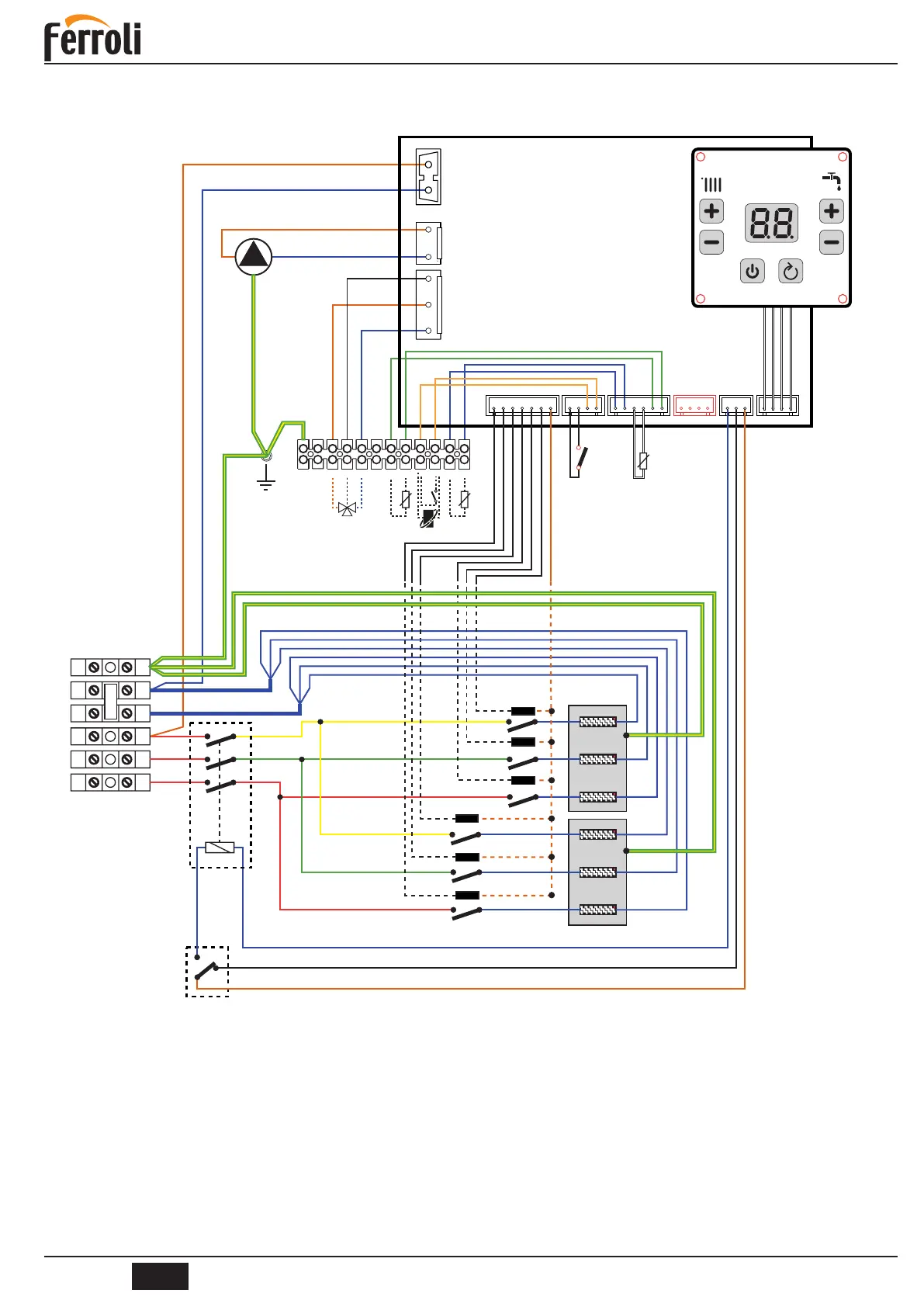

4.6.2. Diagrama electrica pentru modelele 18 și 24
ATENTIE : Inaintedeconectareatermostatuluidecameraindepartatipunteaexistentainrigletele9-10
Legenda
2 Termostatdesiguranta
3 Senzortemperaturaincalzire
4 Relee
6 Sigurantaautomata
32 Pompacirculatie
95 Vana cu 3 cai
114 Presostatdeapa
138 Senzordeexterior
139 Termostatambient
155 Senzoracm
4.6.2 Diagramaelectricapentrumodelele18și24








 







  









