Ferroli TOR User Manual

TOR
cod. 3542B750 - Rev 05 - 07/2022
44
RO
18
TOR

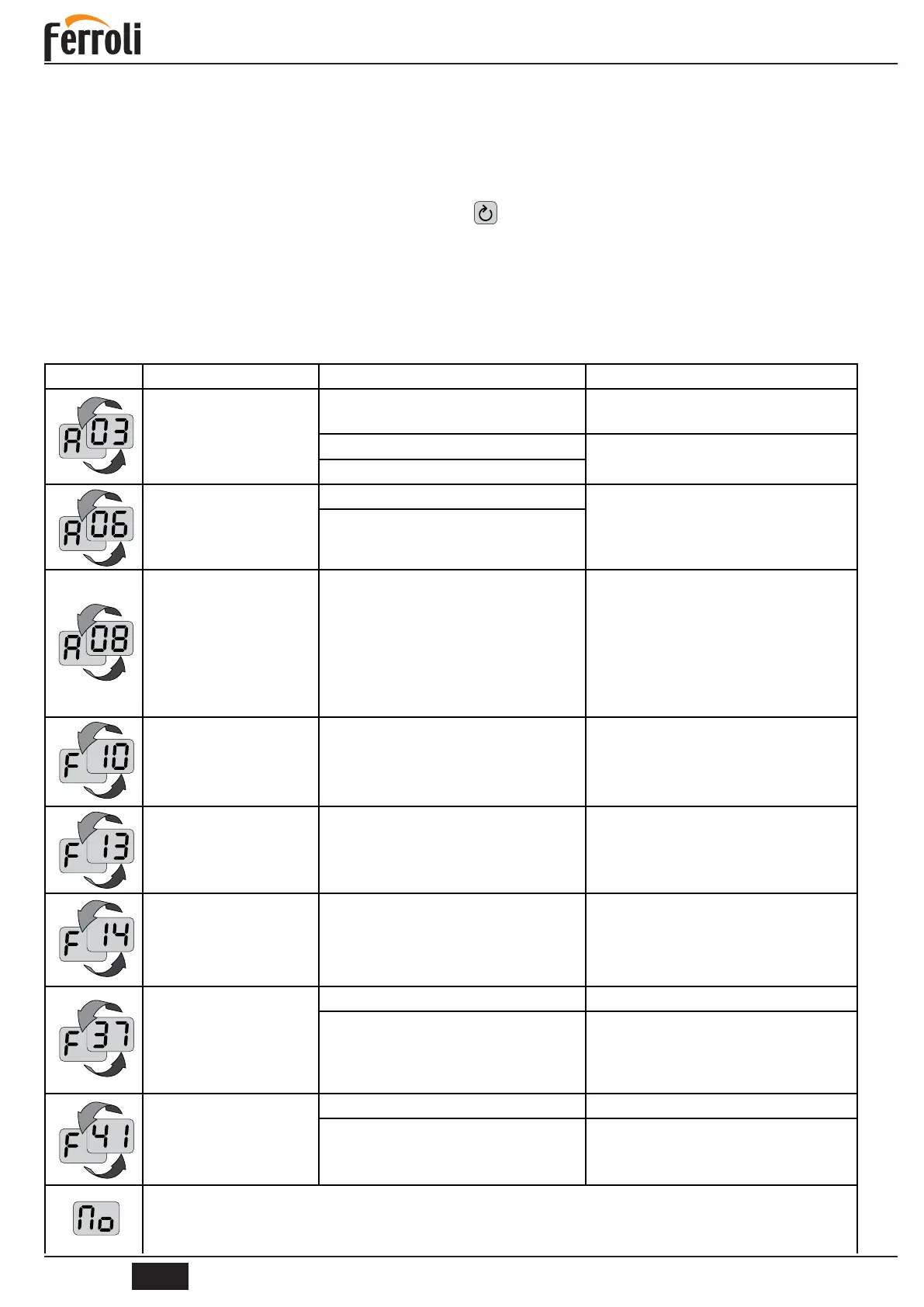

3.4. Remedierea defecțiunilor
3.4.1 Diagnostic
Cazanulmontatpepereteesteechipatcuunsistemavansatdeautodiagnosticare.Încazdedefecțiune,
codulcorespunzătorvaașatpeecranulcazanuluimontatpeperete.
• Defecțiunea (indicată ca „A”) va duce la blocarea cazanului montat pe perete. Pentru a recupera
funcționarea,tastaderesetaretrebuiesăeapăsatătimpde1s.
• Dacăoaltădefecțiune(prezentatăca“F”)provoacăoprirea,boilerulmontatpeperetepoateautomatva
restabilitautomatlafuncționareanormalădupăceproblemaafosteliminată.
Motiveleparțialealedefecțiunilorșisoluțiilepentruutilizatorsuntenumerateînurmătorultabelcudefecțiuni.
Dacădefecțiuneanureușeștesăeeliminatădupăceafostrezolvatădedouăori,contactațipersonalulde
serviceFerroli.
Cod așat Descrierea defecțiunii Cauza posibilă Soluție
Intervenție termostat de
siguranță (95 °C)
Termostatul de încălzire este deteriorat
Vericați dacă poziția și funcționarea
termostatului de încălzire sunt corecte
Apa din sistemul de încălzire nu circulă
Vericați pompa de circulație pentru a
îndepărta aerul din sistemul de încălzire
Există aer în sistemul de încălzire
Temperatura încălzitorului
depășește 90 °C
Apa din sistemul de încălzire nu circulă
Vericați pompa de circulație pentru a
îndepărta aerul din sistemul de încălzire
Există aer în sistemul de încălzire
Detecția senzorului de
temperatură
Senzorul de temperatură de încălzire
scade sau este deteriorat (creșterea
temperaturii senzorului de încălzire și
a apei din baie nu depășește 3°C după
încălzirea normală timp de 5 minute.
Nu este necesară detectarea în cazul
depășirii valorii de 40 °C)
Vericați dacă senzorul de temperatură
de încălzire scade sau înlocuiți-l
Nu este activat in cazul cand parametrul
P09 este 0 (valoare gresita)
Defecțiune a senzorului
de temperatură de
încălzire
Circuitul deschis, conexiune slaba sau
scurtcircuitul are loc la senzorul de
temperatură de încălzire
Vericați conexiunea sau înlocuiți
senzorul de temperatură
Defecțiune senzor de
temperatură exterioară
Circuitul deschis, conexiune slaba sau
scurtcircuitul are loc la senzorul de
temperatură exterioară
Vericați conexiunea sau înlocuiți
senzorul de temperatură
Defecțiune senzor
temperatură rezervor apă
Circuitul deschis, conexiune slaba sau
scurtcircuitul are loc la rezervorul de
apă NTC
Vericați conexiunea sau înlocuiți
senzorul de temperatură
Defecțiune a
comutatorului de presiune
a apei
Scurgeri de apă pe circuitul de încălzire Refaceți apa din circuitul de încălzire
Presostatul apei este deconectat sau
deteriorat
Vericați comutatorul de presiune a apei
Gradient de temperatură
prea mare
Scurgeri de apă pe circuitul de încălzire Injectarea apei în sistem
Blocarea pompei Vericați circulația pompei
Nu este stocată nici o defecțiune
TOR
cod. 3542B750 - Rev 00 - 05/2022
10
EN
1.5 SERVICE MENU
To enter on the service menu press the “back” key for at least 5 seconds under any state (except for parameter setting
state or when the panel breaks down).
The display show
(parameters) and it can be changed into other menu (fault history) or (reset faults) by
pressing


 
1.5.1 Parameters
When the display show it is possible to enter on the parameter code by pressing the key.
The symbol flashing appears
, meaning the first parameter is show: to check the value press the key.
Parameter code Parameter name Range Default value Remark
P01 Water pump post-circulation (1 ÷ 20 minutes) 20
P02 Switch on heating temperature 5 ÷ 20 °C 8 °C
When the heating temperature is below the
Set Point - P02, the heating elements are
enabled to start
P03 Water switch type 0 ÷ 1 0
0 = on/off
1 = sensor type
P04 Switch on tank temperature 5 ÷ 10 °C 5 °C
When the tank temperature is below the
Set Point - P04, the heating elements are
enabled to start
P05 Storage tank 0 ÷ 1 0
0 = external tank disabled
1 = external tank enabled
P06
Offset temperature of heating
room compensation control
30 ÷ 50 30 (1.4.9.1 on page 9)
P07
Compensating curve of heating
outdoor compensation control
0 ÷ 10 0
0: No outdoor compensation control
1~10: Compensating curve C01-C10
P08 Maximum power 1 ÷ 6
6 ÷ 12 KW= 3
18 ÷ 24 KW= 6
It defines the maximum number of the wor-
king elements.
P09 A08 Fault defection option
00: No detection
03: Detection
00
P10
Heating comfort mode (heat
balance option)
00 ÷ 01 00
00 = comfort
01 = heat balance
(1.4.5.1 on page 8)
P11 Air Purge function 0 ÷ 1 0 1 = activate the Air Purging function manually
P12 Sterilization temperature 55 ÷ 70 °C 65 °C
This is the temperature at whitch the boiler is
load during the sterilization function
P13 Water tank sterilization period 1 ÷ 31 days 7 days Period for this function
Note: Manually exit from the set state after setting and power down the system after waiting for a while (generally 3-6s
because the system is saving the parameter) because the system saves the parameter under the non-set state, or
the parameter won’t be saved. The outdoor temperature compensation setting is also subject to the restriction.
Example: how to modify the P02 value
x5 s
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. 3542B750 - Rev 00 - 05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The electric heating unit is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen.
• The fault shown as “A” will result in electric heating unit lockout. To recover the operating, the reset key
must be
pressed for 1s.
• The fault shown as “F” causes shutdown. The electric heating unit will be automatically restored to the normal opera-
tion after the problem has been solved.
The table below shows some fault causes, as well as certain solutions for the users.
In case of a repeating fault which you cannot remedy, please contact the FERROLI service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is
damaged (the heating sensor and bathroom wa-
ter sensor temperature rise doesn’t exceed 3 °C
after normal heating for 5 min. No detection is
required in case of exceeding 40 °C)
Not actived in case the parameter P09 is 0 (de-
fault value)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Not detected in case the parameter P05 = 0 (de-
fault value)
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Pressure sensor type different from the parame-
ter P03 selection
Check and modify the parameter P03
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage
Check the circulation of the pump
The water in the heating system doesn’t circulate
No fault is stored
TOR
cod. PRELIMINARY 04 - R - 18/05/2022
18
EN
3.4 TROUBLESHOOTING
3.4.1 Diagnostic
The wall-mounted boiler is equipped with advanced self-diagnosis system. In case of any fault, the corresponding code
will be shown on the display screen of the wall-mounted boiler.
The fault (shown as “A”) will result in wall-mounted boiler lockout. To recover the operating, the reset key must be pres-
sed
for 1s.
If other fault (shown as “F”) causes shutdown, the wall-mounted boiler can automatically will be automatically restored to
the normal operation after the problem has been eliminated.
Partial reasons for the faults and solutions for the user are listed in the following fault table.
If the fault fails to be removed after being solved twice, contact Ferroli service personnel.
Display code Fault description Possible cause Solution
Safety thermostat inter-
vention (95 °C)
The heating thermostat is damaged
Check whether the heating thermostat positio-
ning and operation are correct
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
The heater temperature
exceeds 90 °C
The water in the heating system doesn’t circulate
Check the circulating pump to remove the air
from the heating system
The air exists in the heating system
Temperature sensor de-
tection
The heating temperature sensor falls off or is da-
maged (the heating sensor and bathroom water
sensor temperature rise doesn’t exceed 3°C after
normal heating for 5min. No detection is required
in case of exceeding 40 °C)
Check whether the heating temperature sen-
sor falls off or replace it
Heating temperature sen-
sor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the heating
temperature sensor
Check the connection or replace the tempera-
ture sensor
Outdoor temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit occurs to the outdoor
temperature sensor
Check the connection or replace the tempera-
ture sensor
Water tank temperature
sensor fault
The open circuit, short circuit, or connecting line
getting loose or short circuit happens to the water
tank NTC
Check the connection or replace the tempera-
ture sensor
Water pressure switch
fault
Water leakage on the heating circuit Restore the water in the heating circuit
The disconnection or damage occurs to the water
pressure switch/sensor
Check the water pressure switch
Too big temperature
gradient
Water leakage on the heating circuit Water injection to the system
Pump blockage Check the circulation of the pump
NO FAULT IS STORED
3.4 REMEDIEREADEFECȚIUNILOR
3.4.1 Diagnostic

Ferroli TOR Specifications

General

Brand	Ferroli
Model	TOR
Category	Boiler
Language	English
