4.6.2 








 







  









 - For Models 18 - 24
Key
2 Safety thermostat (manual reset)
3 Heating temperature sensor
4 Solid-state relay
6 Circuit breaker
32 Central heating pump
95 Diverting valve (optional)
114 Water pressure switch
138 Outside temperature sensor (optional)
139 Room unit (optional)
155 Storage tank sensor (optional)
 Before connecting the room thermostat or the remote timer control, remove the jumper from terminals 9-10
on the terminal block.
TOR
27
cod. 3542B750 - Rev 00 - 05/2022
EN
4.7 POWER SUPPLY CONNECTION
When connecting the power supply cable, select the correct wiring type, depending on the type of supply
Insert the power supply cable through the nylon joint from the boiler’s base. Loosen the joint’s nut and tighten it again after
inserting the power supply cable.
   


 

   




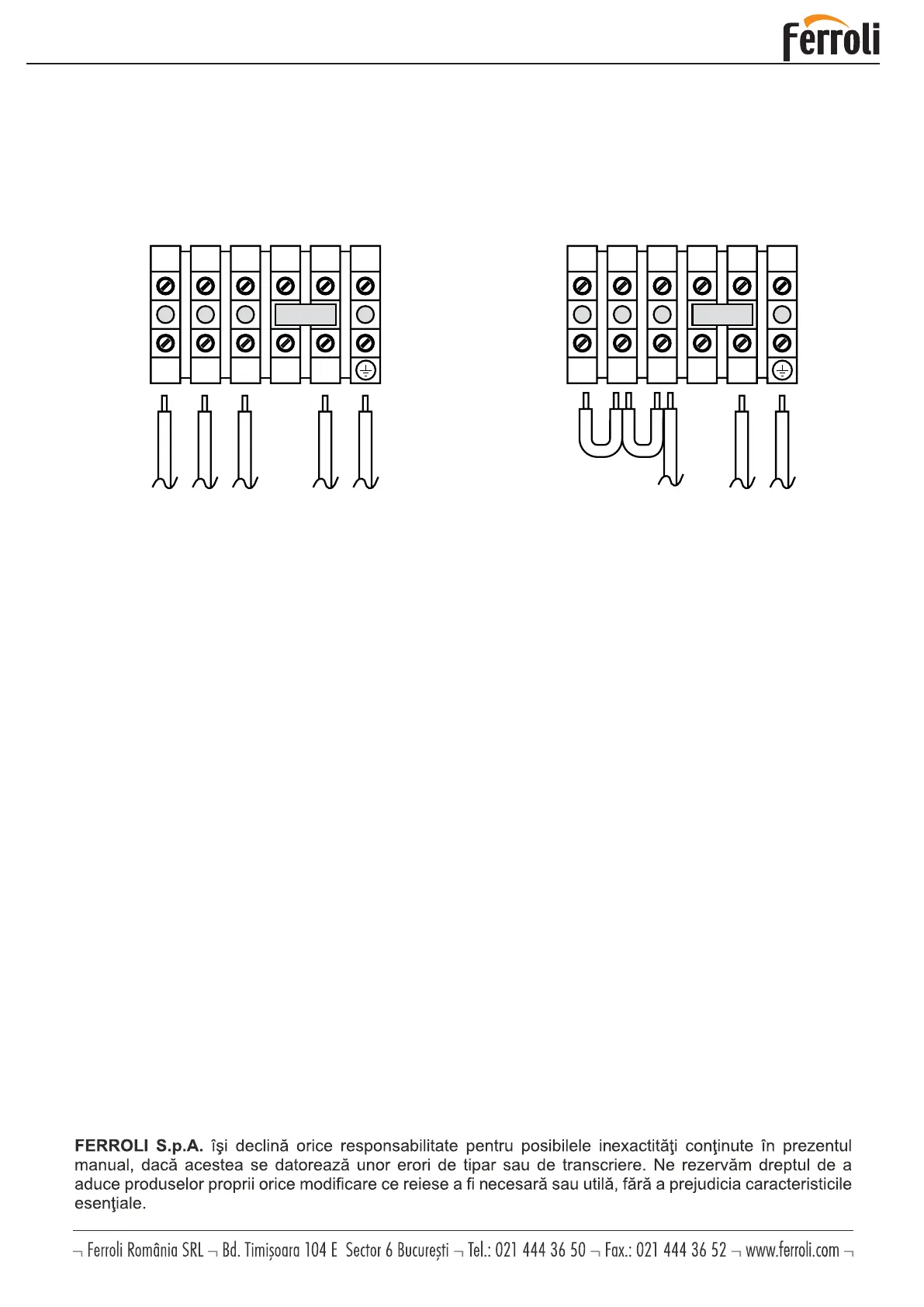

Fig. 19 Cablaj trifazic Fig. 19 Cablaj monofazic
4.7 CIRCUITUL ELECTRIC
Candseracordeazacablulelectric,alegetitipulcorectdecablu,infunctiedeinstalatiaelectrica.
Introduceticablulelectricinpresetupadelabazacentralei.
4.7 CIRCUITULELECTRIC
Pentrumodelele6-9-12-18-24KW Pentrumodele6-9KW
