1. Installation
1-5
Festo P.BE-CPX-FB32-EN en 1111a
Dismantling and mounting
The fieldbus node is fitted in an interlinking block of the CPX
terminal (see Fig. 1/2).
Dismantling Dismantle the fieldbus node as follows:
1. Loosen the 4 screws in the field bus node with a Torx
screwdriver size T10.
2. Pull the fieldbus node carefully and without tilting away
from the contact rails of the manifold base.
1
Fieldbus node
CPX-FB32
2
Interlinking block
with contact rails
3
Torx T10 screws
3
1
2

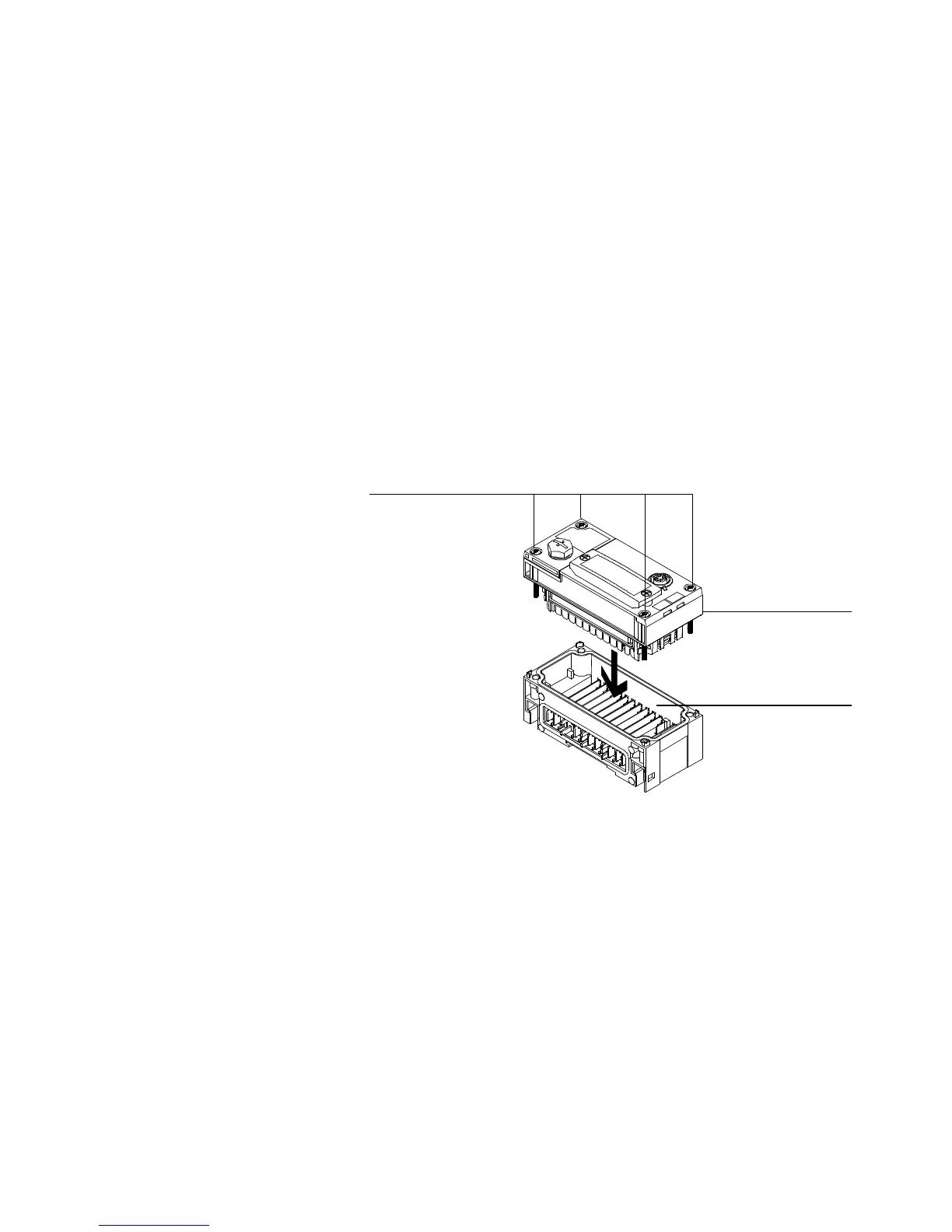

Fig. 1/2: Dismantling/mounting the fieldbus node
