2. Commissioning
2-13
Festo P.BE-CPX-FB32-EN en 1111a

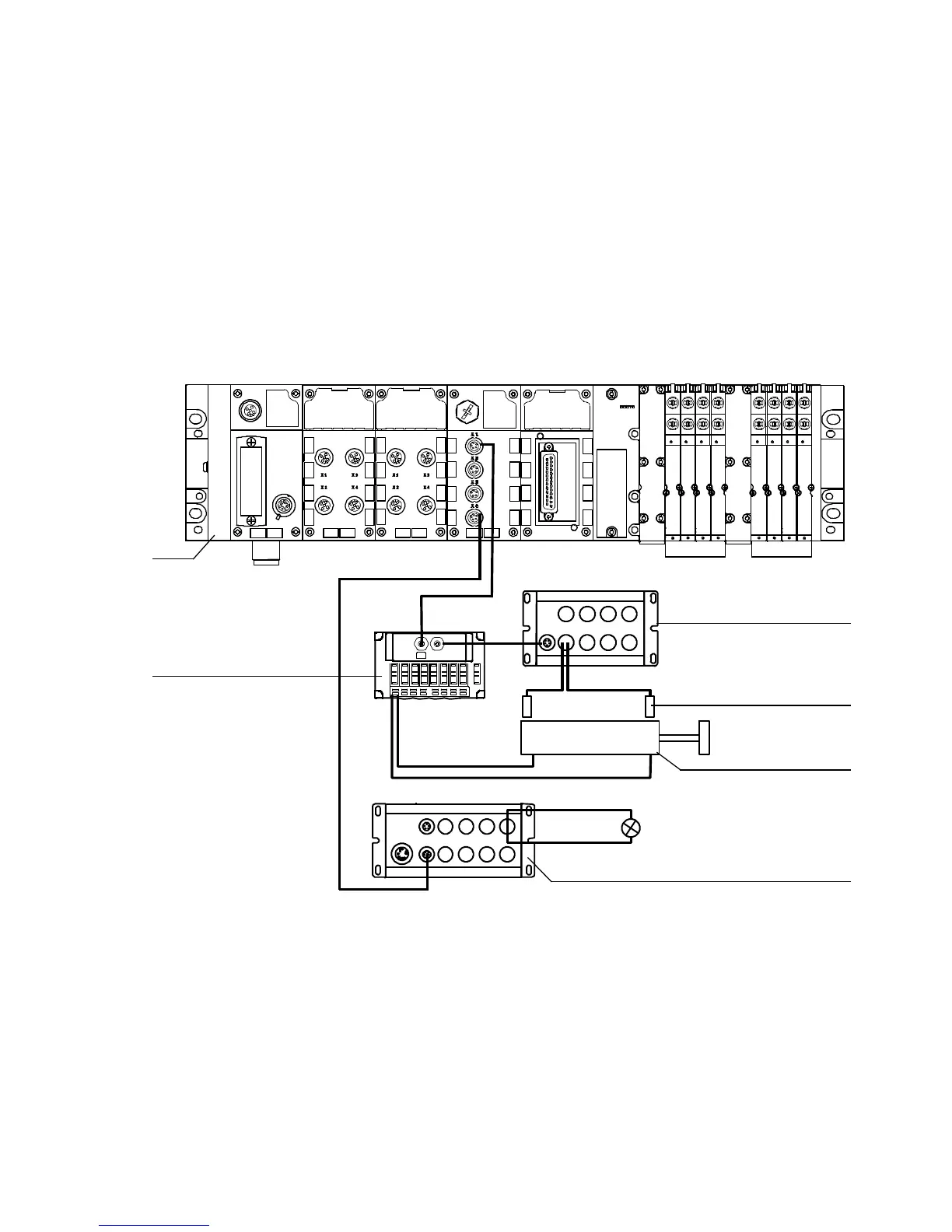

Example 2: CPX terminal with CP interface
The address assignment for this CPX terminal can be found
on the next page in Tab. 2/9. The settings are:
– Status bits and I/O diagnostic interface deactivated
123 4 5
6Module no.: 0
8O 8O
1
2
3
4
5
6
8DI 4DO 8DI 8DO
1 Fieldbus node CPX-FB32
2 CPV valve terminal (16DO) on the CP
interface (string 1)
3 CP input module (16 DI)
4 Sensor
5 Cylinder
6 CP output module (16DO) on the CP
interface (string 4)
Fig. 2/2: Example terminal 2 (with CP i nterface)
