2. Commissioning
2-15
Festo P.BE-CPX-FB32-EN en 1111a
Example 3: CPX terminal with analogue module and VTSA
pneumatic
The address assignment for this CPX terminal can be found
on the next page in Tab. 2/10. The settings are:
– Status bits activated and I/O diagnostic interface
deactivated
– On the pneumatic i nterface set with DIL switch to 1 ... 8
valve coils (8 DO).
12
8DI 8DI 4DO 8DI 2AO
3
8DO
8O
Moduleno.:0123456
1
Fieldbus node CPX-FB32
(with DIL 3.2 at ON for status bits)
2
Pneumatic i nterface
(set with DIL switch to
1 ... 8 valve coils)
3
VTSA pneumatics (type 44)

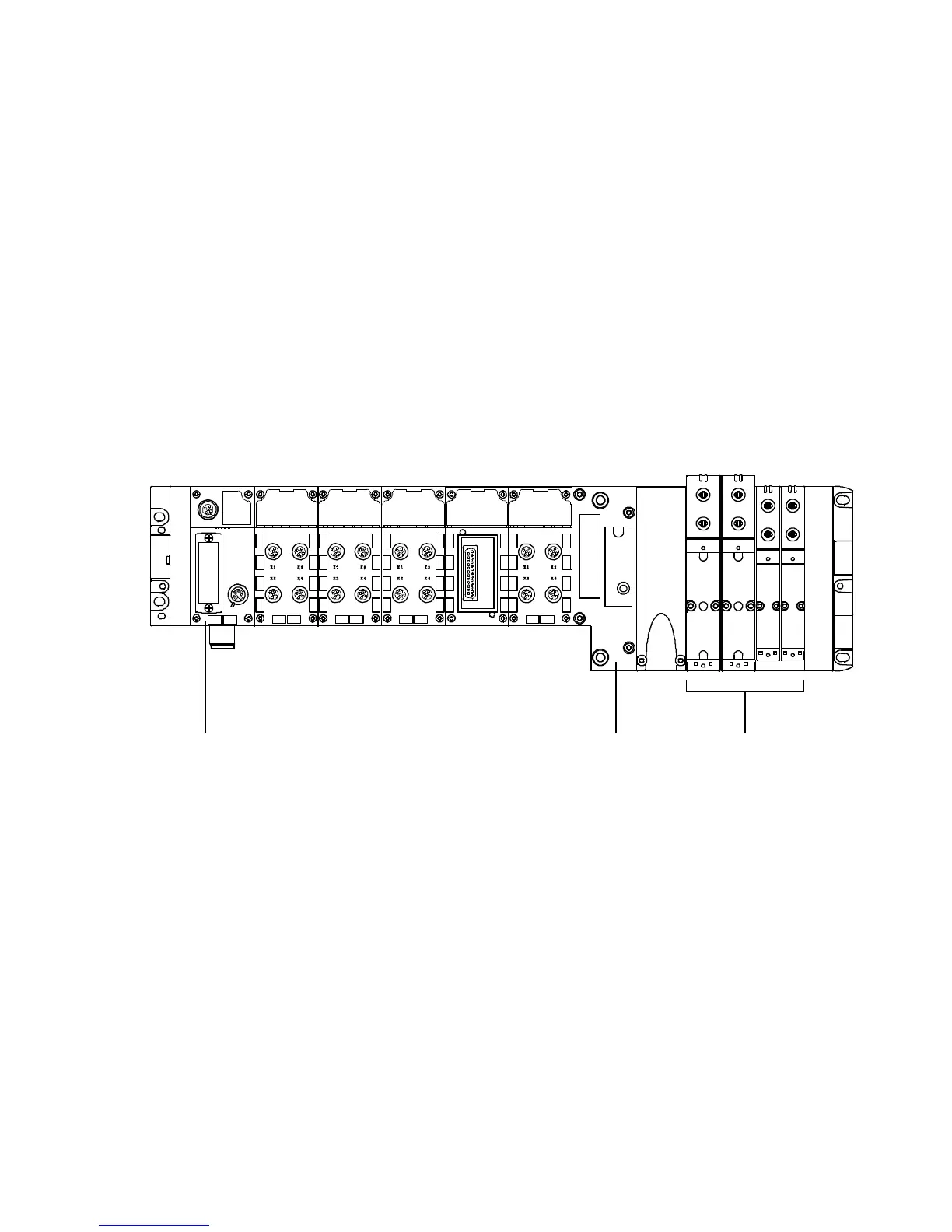

Fig. 2/3: Example terminal 3 (with analogue module and VTSA pneumatics)
