2.4.10 Check valves
1
1 Check valve

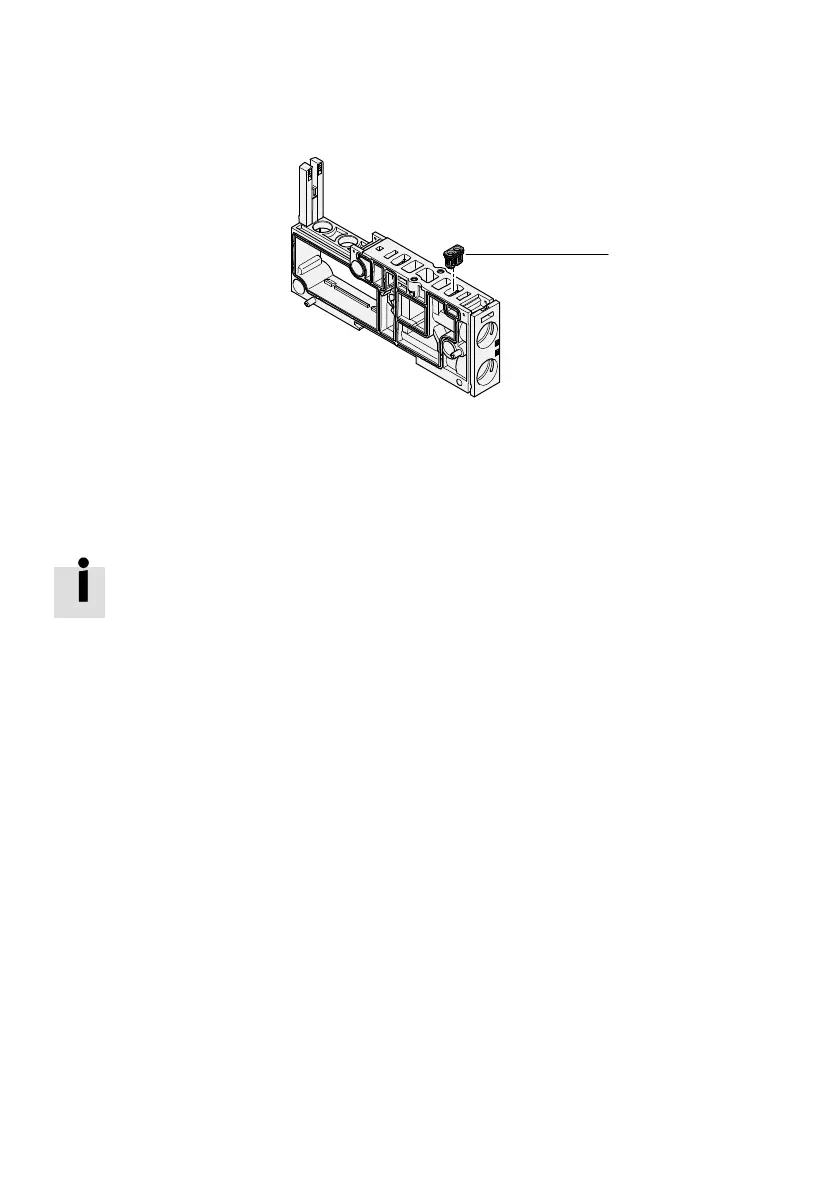

Fig. 2.14 Check valve – example of a check valve for the 14 mm size
A check valve can be integrated between sub-base and valve to prevent unintended switching of actuat
ors in response to high back pressure in the exhaust air ducts (3) and (5). If there is a high level of back
pressure, the check valves seal off exhaust air ducts (3) and (5).
Per duct, either a fixed flow restrictor or a check valve can be installed.
– Mounting of the check valves è Assembly instructions VMPA…RV
