7.6.2 Conversion with right end plate with supply ports

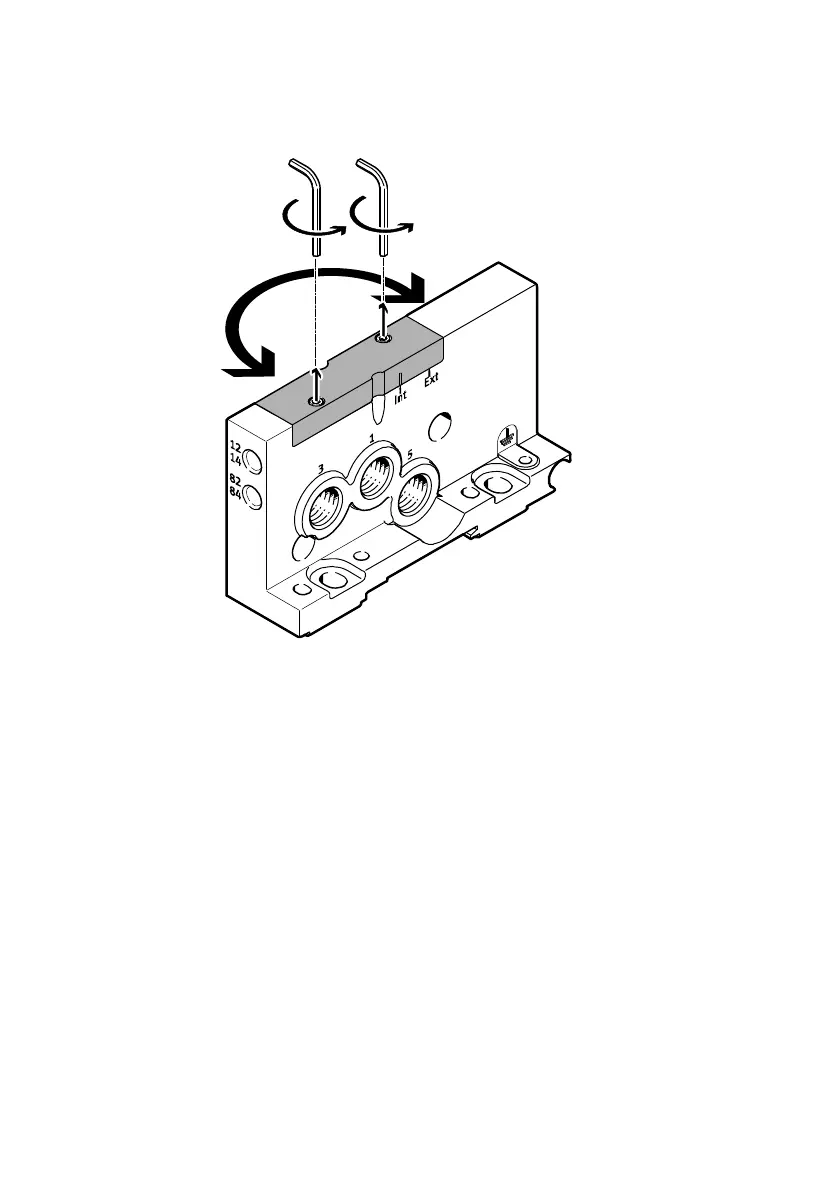

Fig. 7.5 Conversion with right end plate with supply ports
1. Loosen the screws of the selector plate and remove the selector plate è Fig. 7.5.
2. Place selector plate on end plate in “Int” or “Ext” position.
3. Insert screws.
4. Tighten screws.
– Tightening torque: 2.2 Nm± 10 %
