7 Modification
Festo – MPAL-VI-EN – 2017-07a – English 89
7.11 Replacing pneumatic interface
The pneumatic interface connects the pneumatic part of the valve terminal to the CPX terminal
èFig. 7.7. The pneumatic interface is the technical control interface between the pneumatic part of
the valve terminal and the CPX terminal. The pneumatic interface is also the mechanical interface
between the tie rod system of the pneumatic part of the valve terminal and the tie-rod system of the
CPX terminal.

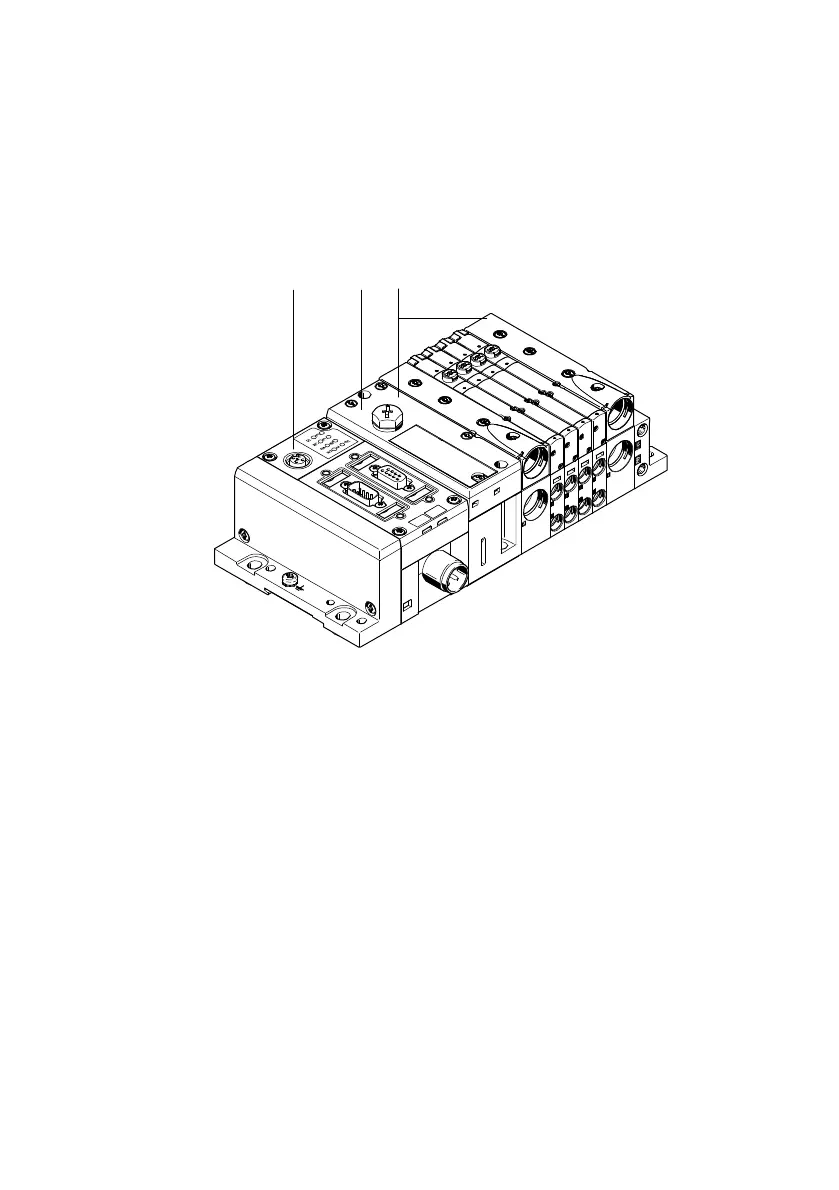

123
1 CPX terminal
2 Pneumatic interface
3 Pneumatic part of the valve terminal
Fig. 7.7 Valve terminal with CPX terminal
To replace the pneumatic interface, the pneumatic part of the valve terminal as well as the CPX terminal
must be dismantled.
