3 Mounting and installation
Festo – MPAL-VI-EN – 2017-07a – English 47
3 Mounting and installation
3.1 Mounting on H-rails and walls
Note
 Mount the valve terminal with sufficient space for heat dissipation.
 Stay within permitted temperature ranges è Appendix A, Tab. A.2
– Valve terminal with multi-pin plug connection or I-Port/IO-Link interface
è Assembly instructions for valve terminal MPA
– Valve terminal with CPX terminal èAssembly instructions for terminal CPX/valve
terminal MPA
3.2 Inscription label holder, mounting/dismounting
An optional inscription label holder can be mounted on the sub-bases to label the valves or working
lines.
Accessories è www.festo.com/catalogue
Mounting
1. Press the inscription label holder into the recess of the sub-bas until it engages.
2. Press the label into the label holder from above.
1
2
3
1 Label, type IBS-6X10
2 Recess in the sub-bas
3 Label holder, type VMPAL-ST-AP-…

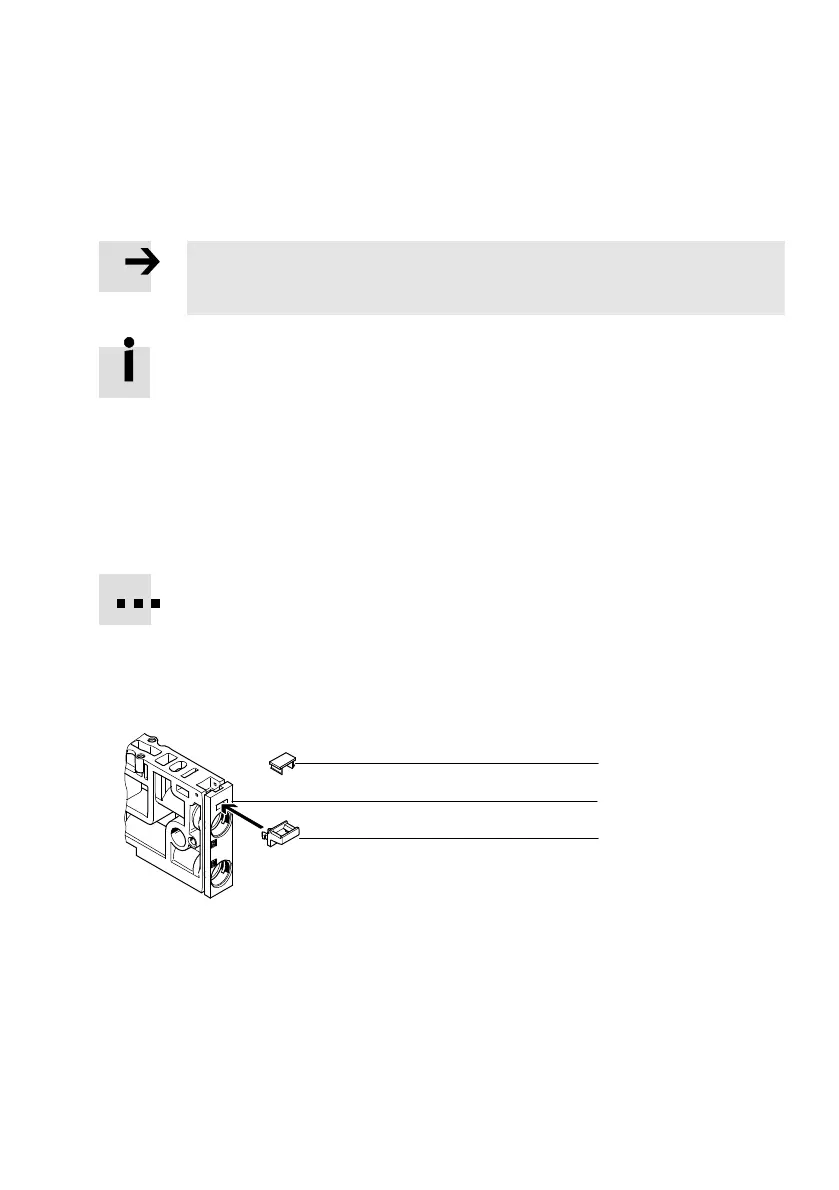

Fig. 3.1 Mounting the inscription label holder
