2.6.3 Switching status indication of the valves
Each solenoid coil has an LED and a manual override. LEDs and manual overrides are assigned to
the solenoid coils as follows:
4
3
12 12
12 12
14 14
14 14 14
14
14 14
12
1 LED for solenoid coil 12
2 LED for solenoid coil 14
3 Manual override for valve solenoid coil 12
4 Manual override for valve solenoid coil 14

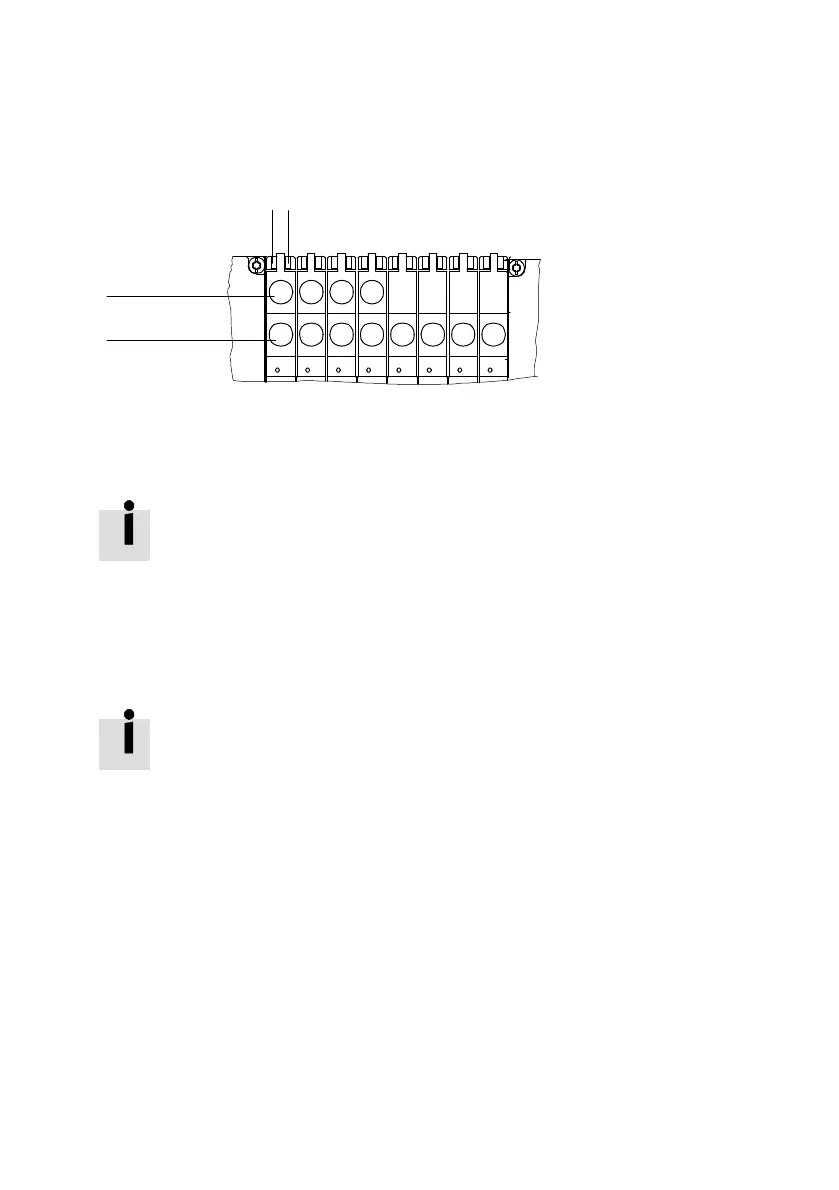

Fig. 2.20 Assignment of LEDs and manual overrides for the solenoid coils
Switching positions of the valves è Chap.5.1
2.6.4 Manual override
When the pressure supply is switched on, the manual override can be used to switch a valve to an elec
trically unactuated, de-energised state. The manual override should primarily be used when commis
sioning the pneumatic system in order to check the functional and operational performance of the valve
or of the valve-actuator combination.
Testing the valves and the valve/actuator combination è Chap.4.2
