7 Modification
Festo – MPAL-VI-EN – 2017-07a – English 77
7.2 Tie rod system
The tie rod system clamps the sub-bases between the end plates.
7.2.1 Configuration
12
34
2
1 Threaded rod with attachment for
open-ended wrench, size 5
2 Extension piece
3 Threaded sleeve with internal hex, size 4
4 Tie rod screw with internal hex, size 2.5

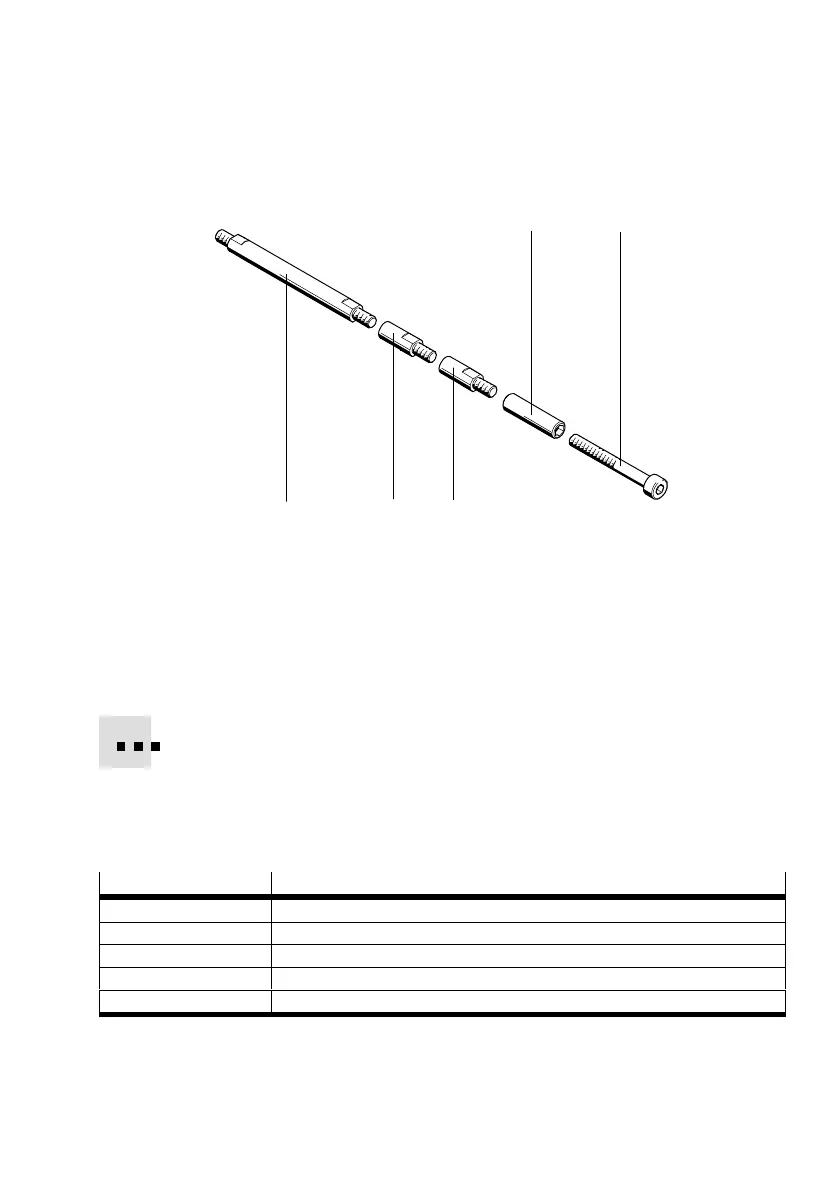

Fig. 7.1 Structure of the tie rod system
7.2.2 Shortening the valve terminal
The valve terminal can only be shortened if the tie rod system comprises individual extension compon
ents èTab. 7.1.
Information about combination options for components on the valve terminal and ac
cessories è www.festo.com/catalogue
7.2.3 Extending the valve terminal
To extend the valve terminal, add extension components between the threaded rod and the threaded
sleeve.
Product type Usage
VMPAL-ZAE-10 Set for an MPA1 sub-base
VMPAL-ZAE-14 Set for an MPA14 sub-base
VMPAL-ZAE-20 Set for an MPA2 sub-base or an MPA2 supply module
VMPAL-ZAE-10-4 Set for a series 4 MPA1 sub-base
VMAL-ZAE-14-4 Set for a series 4 MPA14 sub-base
Tab. 7.1 Extension components for a tie rod system
