2 Product overview
Festo – MPAL-VI-EN – 2017-07a – English 41
1234
5
6
7
1 Pressure zone 1
2 Pressure zone 2
3 Pressure zone 3
4 Pressure zone 4
5 Right end plate
(here: version with side ports (1), (3) and (5)
for pressure zone 4)
6 Supply module (here: for pressure zone 1)
7 Designation of sub-base with pressure zone
separation (here: duct (1) separated
between pressure zones 1 and 2)

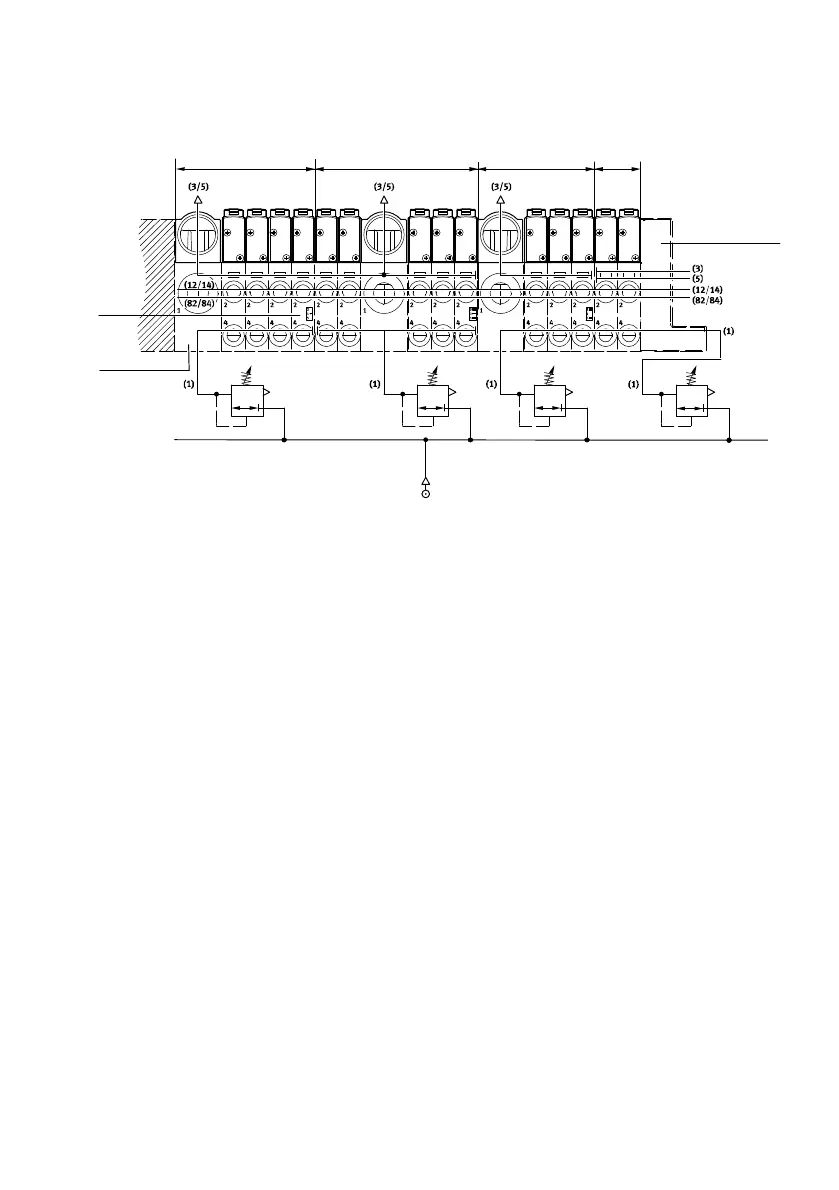

Fig. 2.26 Valve terminal with 4 pressure zones - example
