2 Product overview
44 Festo – MPAL-VI-EN – 2017-07a – English

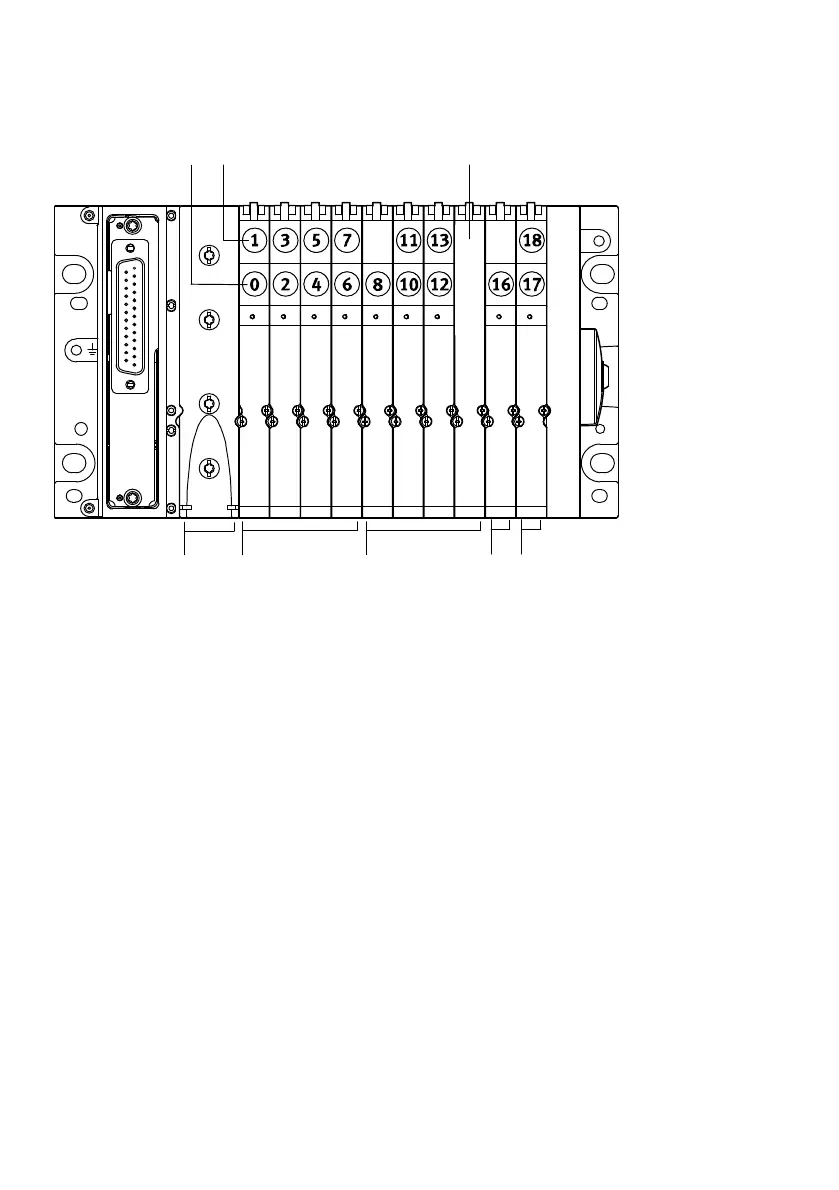

Example of address assignment
467
3
12
56
1 Addresses of the solenoid coils 14
2 Addresses of the solenoid coils 12
3 Reserved valve position
4 Sub-base with electrical interlinking module
VMPAL-EVAP-10-2 occupies 2 addresses per
valve position
5 Sub-base with electrical interlinking module
VMPAL-EVAP-10-1 occupies 1 address per
valve position
6 Combination connection block with 4-way
electrical interlinking module
VMPAL-EVAP-10-2-4 occupies 4x2 addresses
at each valve position
7 Supply module with electrical interlinking
module VMPAL-EVAP-20-SP does not assign
any address
Fig. 2.27 Address assignment: Valve terminal with multi-pin connection (plan view) – example
