A Technical appendix
Festo – MPAL-VI-EN – 2017-07a – English 99
1
2
3
1 Pilot pressure at port (12/14)
2 Working area
3 Working pressure at port (1)

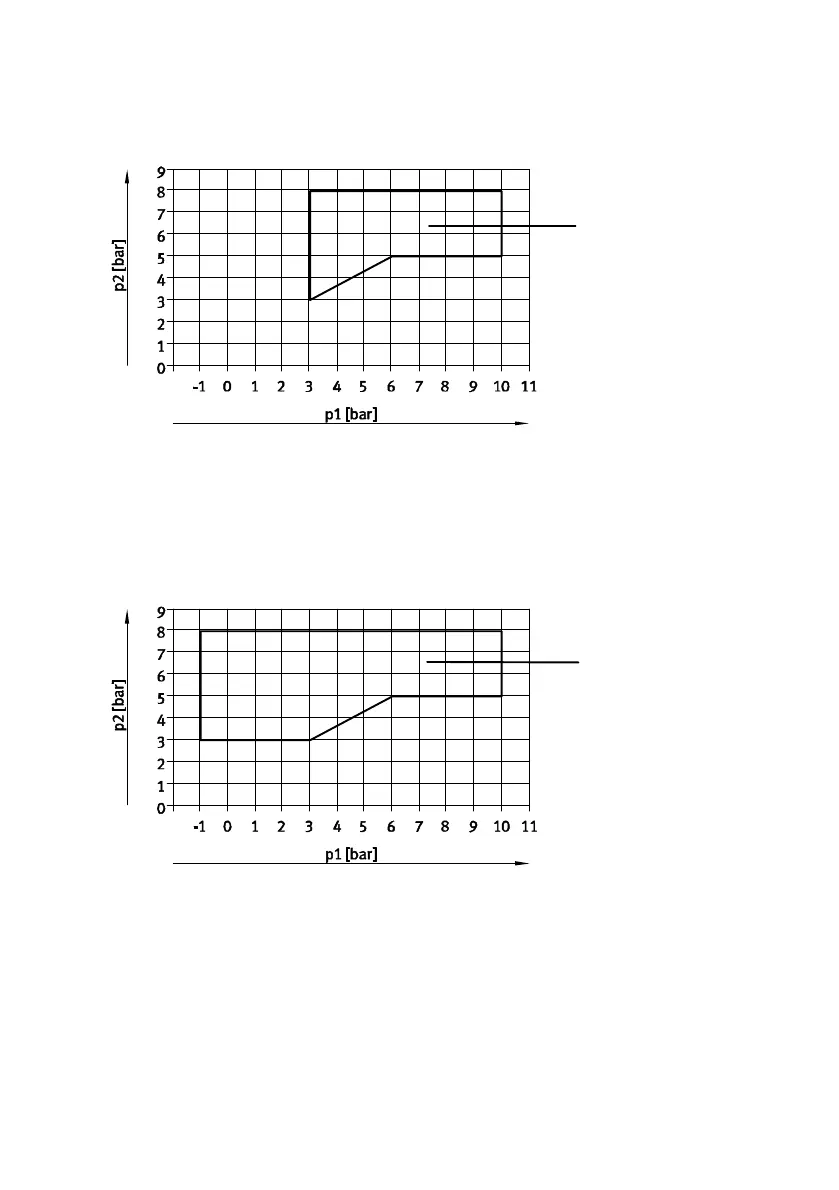

Fig. A.1 Pilot pressure dependent on working pressure for valves with external pilot air supply,
ID code D, H, I, K and N
1
2
3
1 Pilot pressure at port (12/14)
2 Working area
3 Working pressure at port (1)
Fig. A.2 Pilot pressure dependent on working pressure for valves with external pilot air supply,
ID codes B, E, G, J, M, W and X
