7.3 Adjustments
7.3.1 Brush Deck
The brush deck must be free to move
pivoted to its support so that the brush
acts parallel to the floor. This allows the
brush to evenly lean to the ground and
perform its function properly.
Requirements: Mounted brush, switched
off machine.
Procedure:
• Hook the brush to the base.
• Loosen the adjustment nuts.
• Lower the brush deck to the ground
so that the brush lies uniformly and
parallel to the floor.
• Tighten the adjustment nuts.

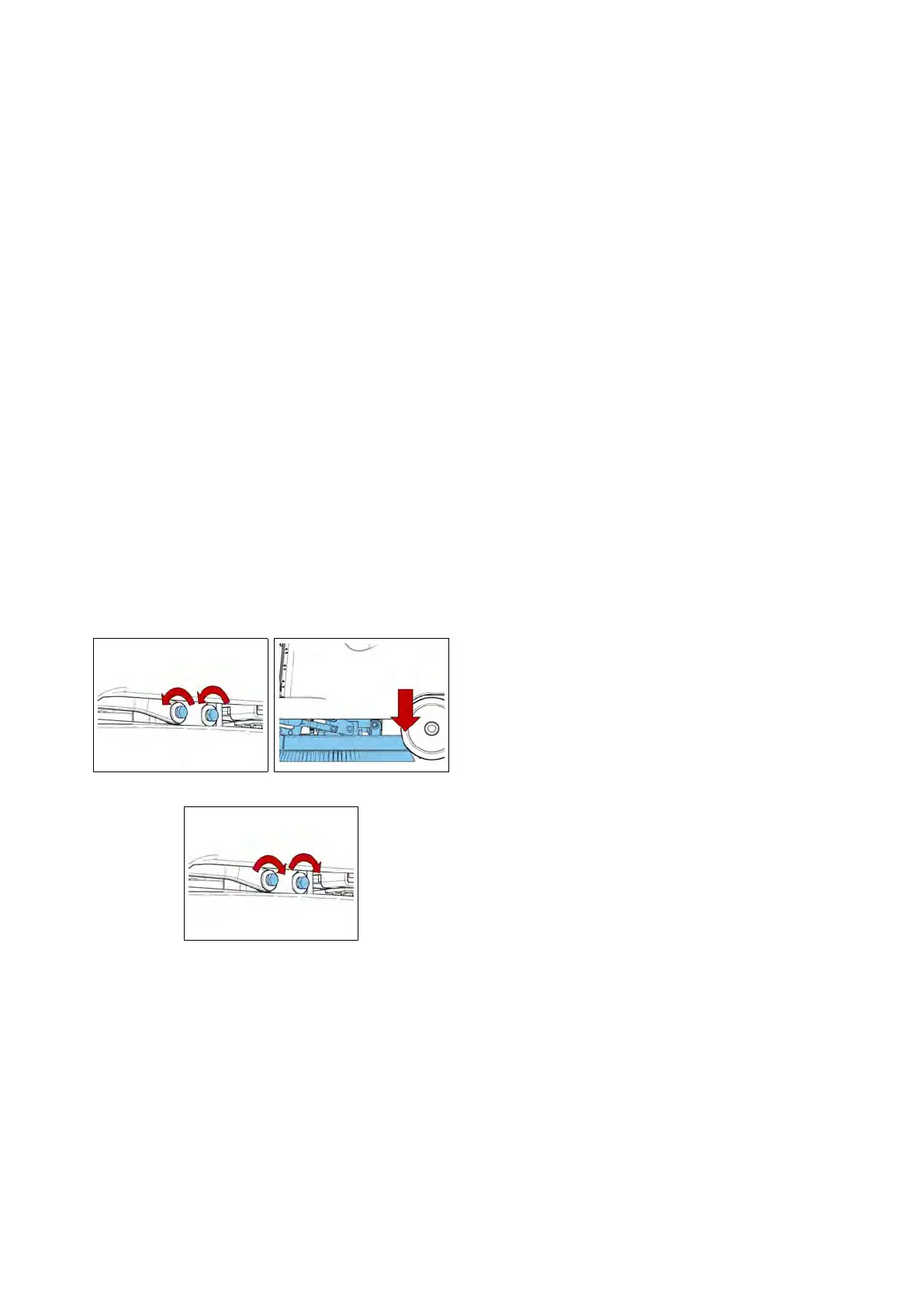

7.3.1-102 7.3.1-103
7.3.1-104
7.3.2 Brush deck lifting cable
Adjust the lifting cable using the ap-
propriate register on the sheath so that
when the base is in the raised position
the brush has a chance to pass under
the base in an easy manner. In any case,
the lowest part of the deck, must have a
height from the ground of at least 7 cm.
7.4 Maintenance and
checks
7.4.1 Motor
Check (to perform every 150h)
Remove the brush.
Slightly lower the brush deck so that
it does not touch the floor, and turn
on the motor; the current absorption
measured on the single motor must be
less than 4,5 Amps.
The motor should rotate evenly and
smoothly and doesn’t have to produce
unusual noises. The motor contacts
have to be clean, they have not to show
signs of wear or heating in general.
The motor wires insulation has to be
intact in all its parts and does not show
signs of cracks. The single cable have to
be flexible.
The carbon brushes must be 4-6 mm
long and they have not to be abnormally
worn out.
Maintenance (to perform every 600h)
Motor carbon brushes replacement: Pro-
cedure:
• Put the machine in safe conditions.
• Remove the brush deck from the ma-
chine.
• Loosen the screws that secure the
collar brush guard.
• Disconnect the Carbon brushes
