Fimap MXR - Solution Delivery System

• Remove the seat from the machine
(see fig. 5.4.8-72).
• Proceed at reverse to refit the part.

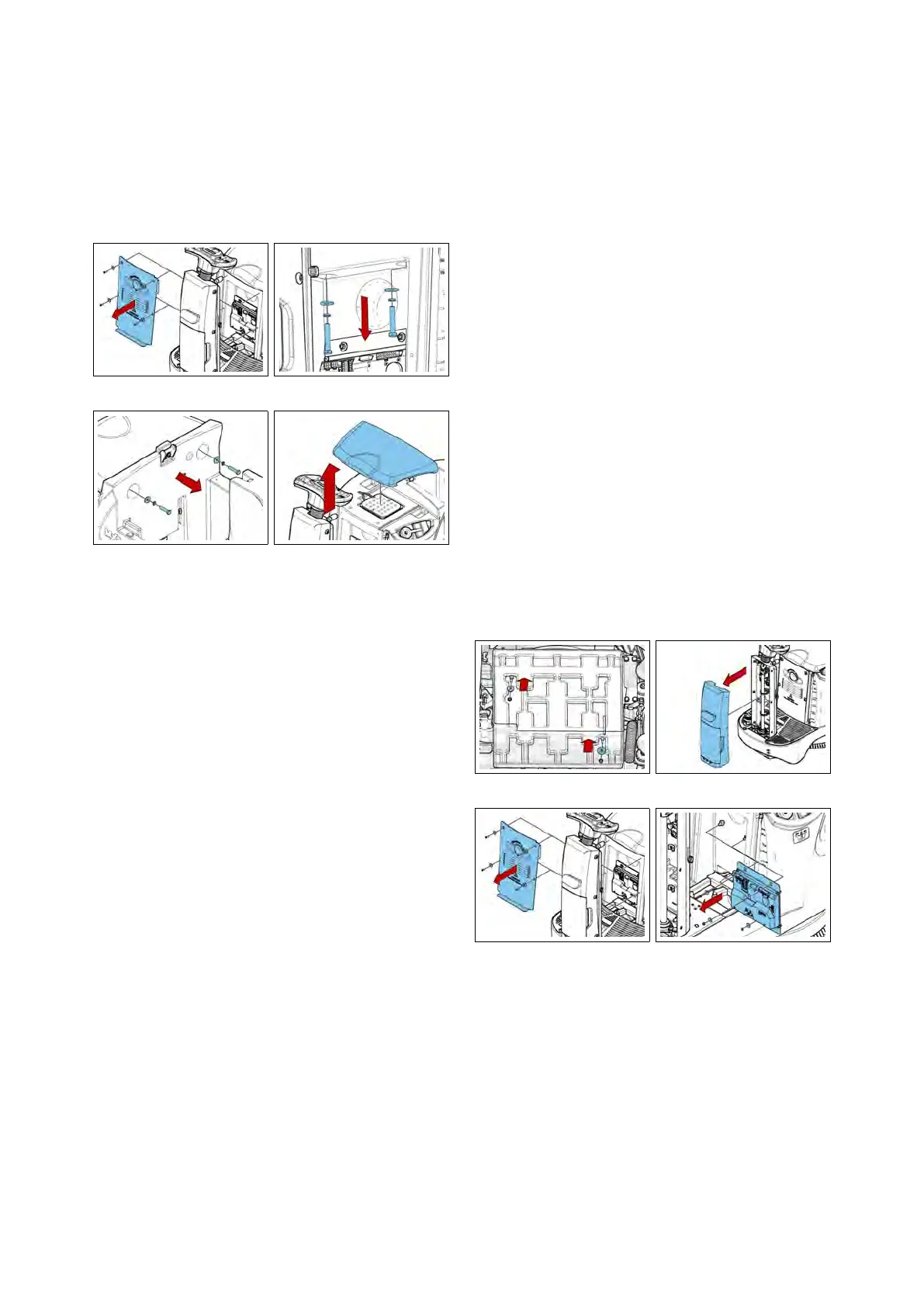

5.4.8-69 5.4.8-70
5.4.8-71 5.4.8-72
5.5 Solution Delivery Sys-
tem
5.5.1 Solution Tank
• Put the machine in safe conditions.
• Remove the recovery tank (see section
5.3.4 at page 28).
• Remove the battery tray (see fig. 5.5.1-73).
• Remove the steering column
carter.(see fig. 5.5.1-74).
• Remove the footrest.
• Remove the electrical installation
carter (see fig. 5.5.1-75).
• Disconnect the wiring form the
Main card and remove the support
bracket of the card itself (see fig. 5.5.1-
76).
5.5.1-73 5.5.1-74
5.5.1-75 5.5.1-76
• Remove the traction pedal assembly.
• Remove the seat and the deadman
microswitch.
