Chapter 10
Cleaning Solution Supply System

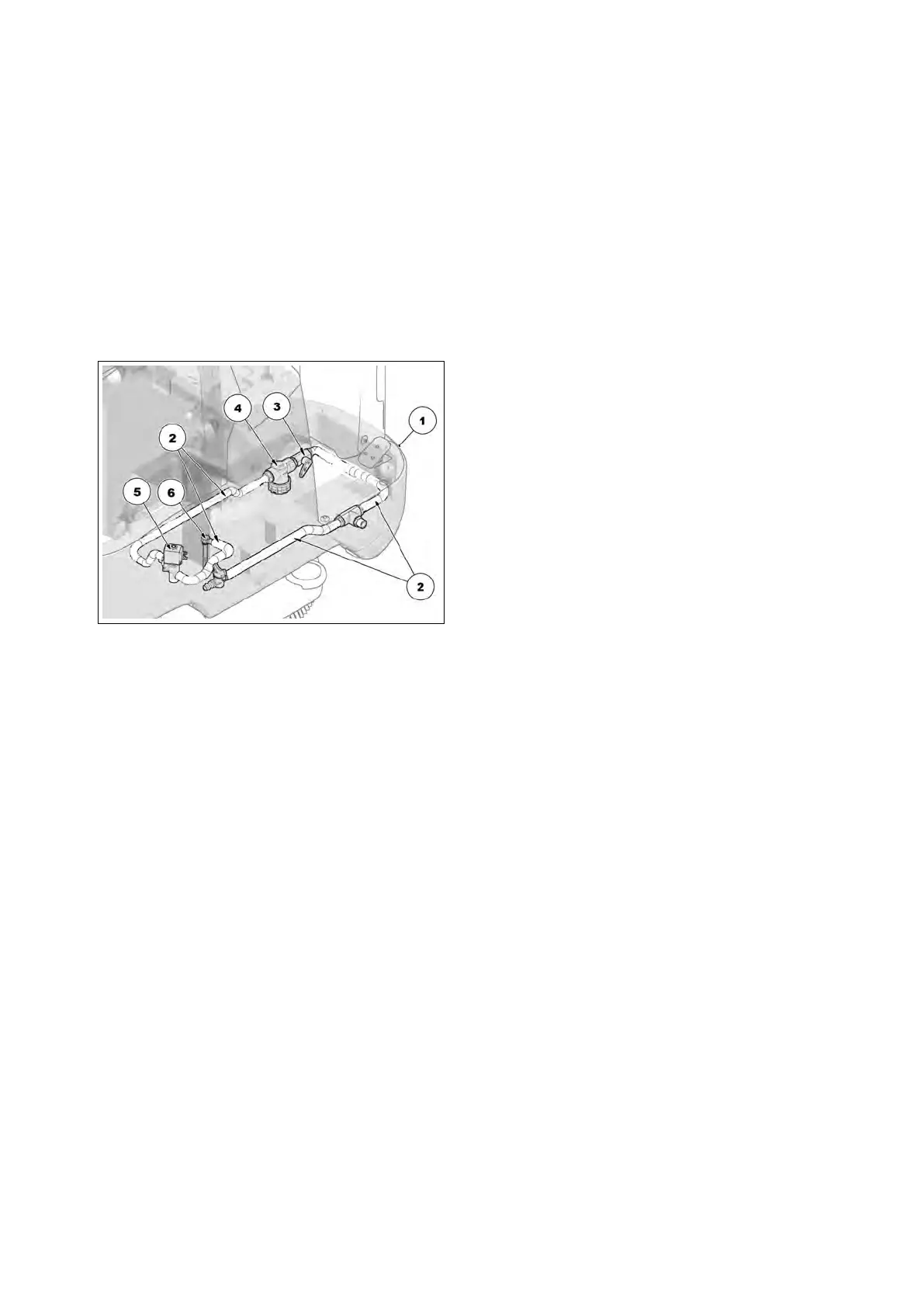

10.1 Structure
1. Solution Tank
2. Hoses
3. Water Valve
4. Solution Filter
5. Solenoid Valve
6. Distributor
10.2 Description:
The Cleaning Solution Supply System
is made by a tank commonly called so-
lution tank or clean water tank.
In this tank the clean water is mixed
with the detergent to create the clean-
ing solution that the machine will use to
clean.
The solution is then canalized to the fil-
ter and the water valve.
The water valve is used to adjust the
solution that will fall on the floor in or-
der to have the correct amount of so-
lution required for washing, while the
filter is used to stop debris that could
stuck the hoses system and compromise
the proper functioning of the system.
The water valve is placed upstream of
the filter to allow the filter cleaning even
with fully or partially full solution tank.
Once passed through the water valve
the solution arrive to the solenoid valve
that blocks the delivery when the brush
is not working and allow the flow while
brush works.
The end of the solution path is the
distributor that canalizes the flow in the
middle of the brush.
The solution tank is also equipped with
a drain hose to empty it in case of need.
71
