Chapter 8
Drying System

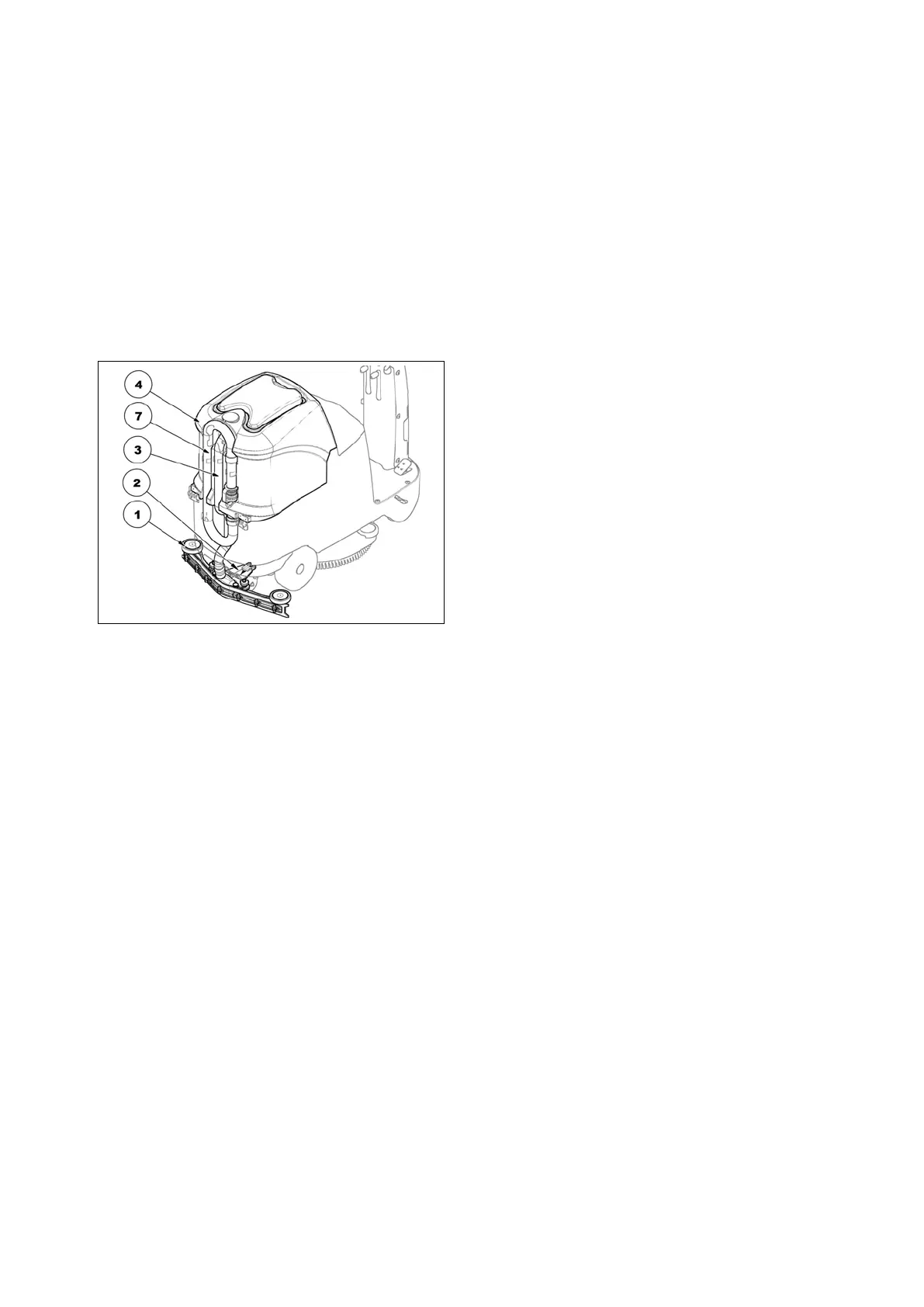

8.1 Structure
1. Squeegee
2. Squeegee Support
3. Vacuum Hose
4. Recovery Tank
5. Filter and Floating
6. Vacuum Motor
7. Drain Hose
8.2 Description
The machine dries the floor using an
integrated Drying System.
After the washing, the solution used
with the mechanical action of the brush
to remove the dirt, is collected by a
system which vacuum it out from the
floor.
The system is basically made by a
vacuum motor which produces an un-
derpressure in the system.
This underpressure causes an air flow
which flows in the whole vacuum circuit.
The air that flows in the squeegee
(when it is lowered on the floor) allows it
to collect the water on the floor mixing
it with the water and, via the vacuum
system, is brought to the recovery tank.
In the recovery tank the water mixed
with the dirt stops and the air keep flow-
ing throughout the circuit reaching the
vacuum motor and being discharged in
the environment via the exhaust mani-
fold.
60
