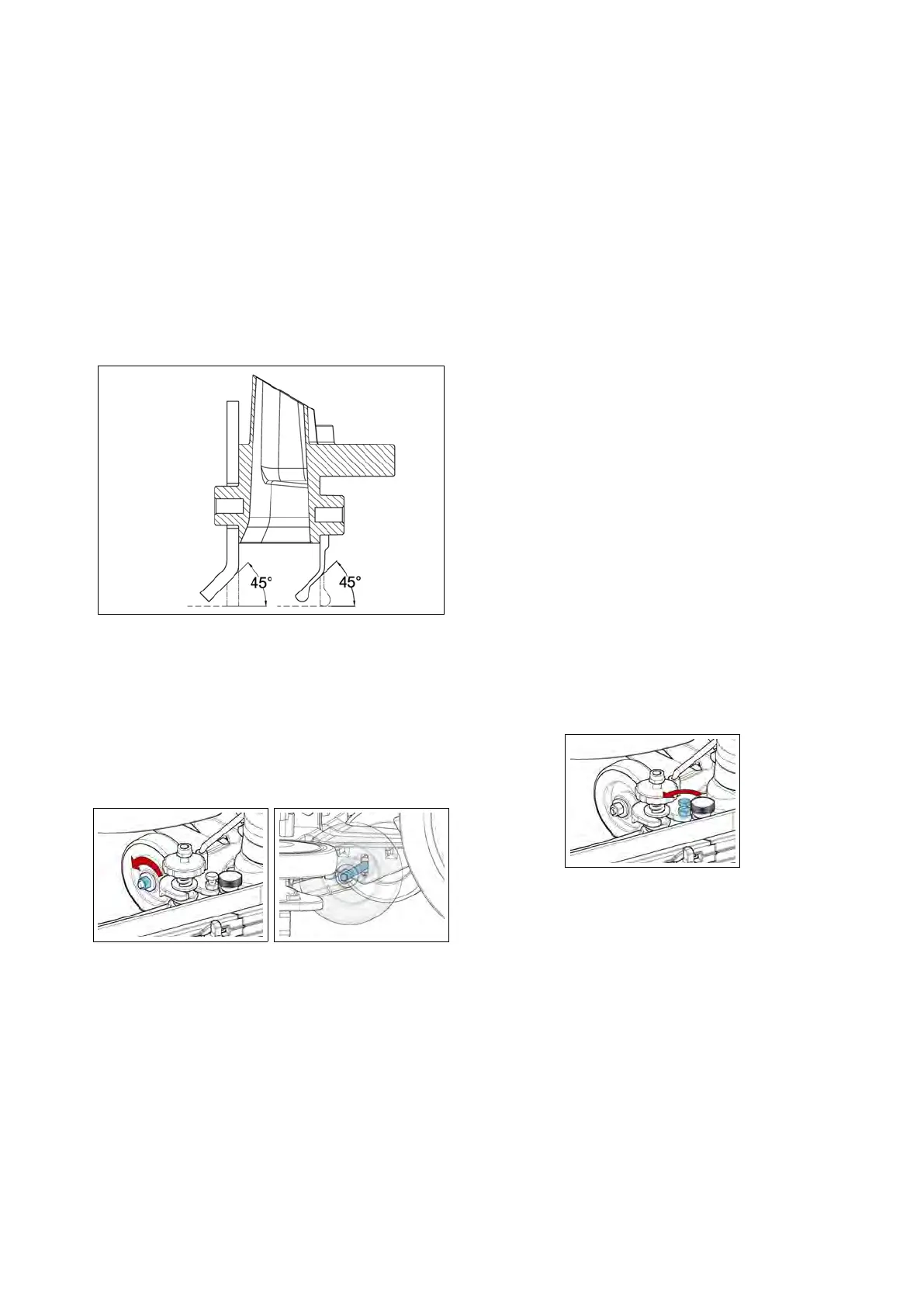

8.3 Adjustments
8.3.1 Squeegee Support
The Squeegee Support has to be ad-
justed with the Squeegee fitted on, low-
ered on the floor and vacuum system on.
The goal of the adjustment is to let the
squeegee blade be angled 45 degrees to
the floor for its whole length.
To obtain the correct adjustment act on
the wheels of the squeegee support (see fig.
8.3.1-114) (see fig. 8.3.1-115) to adjust the dis-
tance from the floor, and on the inclina-
tion screw to tilt the squeegee itself (see fig.
8.3.1-116).
8.3.1-114 8.3.1-115
Procedure
• Put the machine in safe conditions.
• Loosen the nuts holding the wheels
of the squeegee support (see fig. 8.3.1-
114).
• Interpose between the squeegee
wheels and the floor a thickness of
approximately 3 mm (±0,1mm).
• Lower the squeegee on the floor
keeping the squeegee rubbers per-
fectly vertical.
• Fix the wheels of the squeegee sup-
port by tightening the nuts loosened
earlier and remove the spacer.
• Turn on the machineand with low-
ered squeegee activate the traction
pedal.
• Turn the screw to adjust the inclina-
tion until the correct setting is ob-
tained (see fig. 8.3.1-116).
• Rotate clockwise the register to in-
crease the inclination in the centre.
• Rotate counterclockwise the regis-
ter to increase the inclination in the
lateral sides.
• Tighten the locknut when the ad-
justment is completed.
8.3.1-116
8.3.2 Squeegee lifting cable
Adjust the squeegee lifting cable using
the adjuster on the sheath so that when
the squeegee is lowered to the floor, it
can move laterally in all its possible ex-
cursion.
61
